China High Performance PP PE Film Washing Line

China High Performance PP PE Film Washing Line

Detailed description

Specifications

Plastic Film Washing Line
1.High quality products
2.Cost saving and easy maintenance
3.Small floor coverage
4.Long life

Product list

Name of equipment                         Quantity
1  belt convey system                           1set
2  DJ 450C crusher                                1set (depend on the capacity)
3  Rub and clean machine                      1set
4  Film clean machine                            1set
5  Screw transporter                             1set
6  Film dewater system                          1set
7.High speed dewater system                 1 set
8  stainless steel pipe Dry system           1set
9  Whirlwind material storehouse            1set
10  Electric equipment                           1set

ONE.Belt convey system
1.Motor power:1.5KW
2.Strap width:600mm
3.Strap transport length:6000mm
4.Excitation timing
TWO.DJ 450C crusher
1.Motor power:55KW
2.Crush capability:800-1400KG/H
3.Water spout diameter:1inch
4.Crush way:Crush with water
THREE.Rub and clean machine
1.Motor power:22 KW
2.Rotation speed:1500RPM
3.Screw diameter:Φ450
4.Screw barrel length:4000mm
FOUR.Film clean machine
1.Clean roller:6pc
2.Width:1250mm
3.Available length:8000mm
4.Motor power:3KW*2
5.Decontamination motor power:1.5KW
6.Liquid lever control
FIVE.Screw transporter
1.Motor power:1.5 KW
2.Screw diameter:Φ200
3.Available length:2500mm
SIX.Film dewater system
1.Motor power:110KW
2.Rotation speed:1500rpm
3.Other parts contacted with material are made of stainless steel, such as dehydration barrel, axes, leptospira and so on.
SEVEN.Stainless steel pipe dry system
1.Heat power:36KW
2.Suction wind machine power:11KW
3.Pipe diameter:Φ219mm
EIGHT.Whirlwind material storehouse
1.Capacity:2M3
2.Mixer motor power:2.2KW
NINE.Electric equipment
1.Use domestic brand (DELIXI electric equipment)
Note that :The specification is competely based on your production purpose .And your capacity per hour

Features:

 Quality control

• Qualified successfully before get in warehouse

• Randomly Checking Machines before shipment

Service:
Pre-sale

We provide presales service in various forms, for example, making investment budget,manufacturing planning, etc. so that customers make a reasonable plan with less cost.

• Investment budgeting: We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.

• Plant Planning: We provide the mounting dimension of the equipment base,design of equipment  layout, workshop ventilation, water transmission etc.

In-sale

• Detailed design of lay-out that is the position of the procession

• Technological information of provided products

• Schedule about design,manufacturing and installation

• Producing progression

• Training course for the technician so that the installation is safe and standard

After-sale

• Provide them free training

• Answer customer's question on technology,offer on-site guidance and assistance.

• Provide free technical guidance if customers need new equipment, add or rebuild equipment.

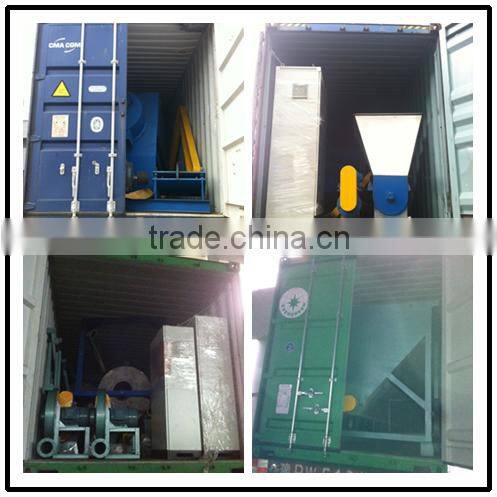

Packing and shipping:
