waste bags recycling machine
- 56 Set / Sets per Month
- FOBShanghai
- T/T Credit Card
- complete set of pelletizer flue gas treating machine
- one-stop pelletizer flue gas treating machine
- Best performance pelletizer flue gas treating machine
- stainless steel pelletizer flue gas treating machine
- Portable pelletizer flue gas treating machine
- complete set of organic waste processing equipment
Product Details
Condition: | New | Application: | Plastic Recycling | Automatic Grade: | Automatic |
Production Capacity: | 300-2000kg/h | Place of Origin: | Jiangsu, China | Brand Name: | Lianying |
Model Number: | LYBM800 | Voltage: | 50HZ | Power(W): | 200KW |
Dimension(L*W*H): | 45000* 8000* 3500mm | Weight: | 25 Tons | Certification: | CE ISO9001, CE |
Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

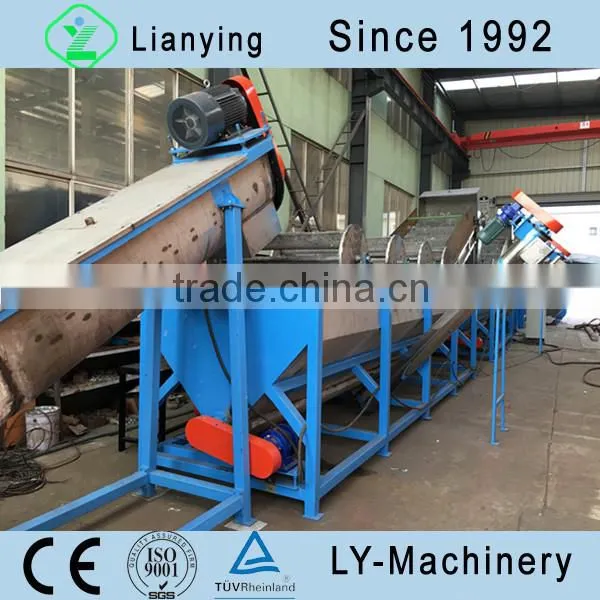

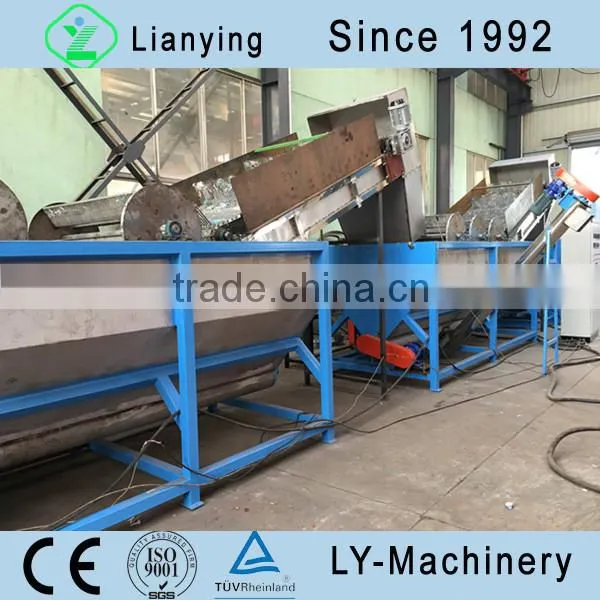

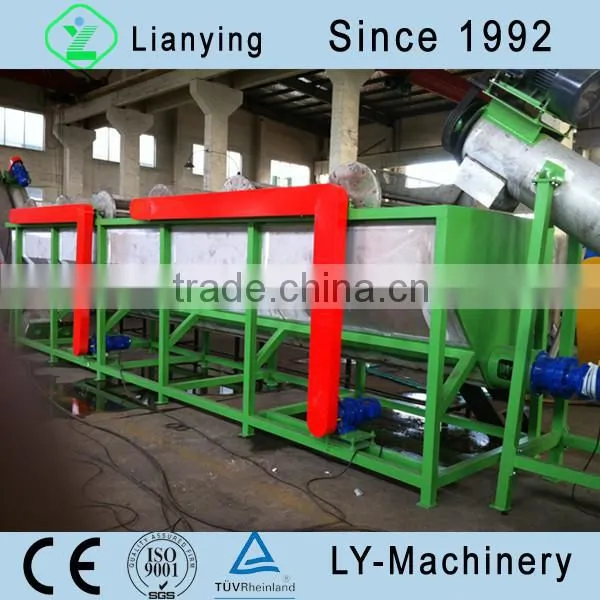

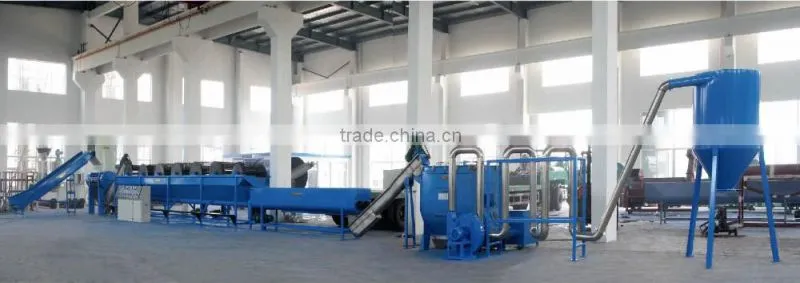

waste bags recycling machine
This line you are now looking at is mainly used for PP/PE waste film recycling and washing. After films clean, you can use them to pelletize.
We can design different PP/PE film recycling line for you according to your request:
We providing turn-key project for you. Design-product-installment-testing.
Features and application:
1) This whole production line is used to crush, wash, dewater and dry PP, PE Film.
2) It takes the advantages of simple structure, easy operation, high capacity, low energy consumption, safety, reliability, etc.
3) This whole production line is automatic controlling, structure arrangement compact, high production efficiency, nice cleanness.
4) After drying the water content can reach 5-8% (according to the thickness of film).
2. Design and Detailed technical parameters for 200kg/h is as follows:
Number | Description | Technical parameters | Quantity |
1 | Belt Conveyor | 1.Length: 4000mm 2. Width: 600mm 3. Material: Rubber 4. Conveying Capacity: 300Kg/h 5. Motor: 1.5KW | 1 |
2 | Crusher with Water | 1. Model: PC700 2. Crush Capacity: 200Kg/h 3. Knife Material: Cr12MoV 4. Motor Power: 22KW 5. Feeder Throat Dimension: 700×450mm 6. Knife Gyration Diameter: Φ360mm | 1 |
3 | High speed friction washing machine | 1) Motor power: 7.5 KW 2) Filtering method: Stainless Steel mesh 3) Process material: Stainless Steel 4) Principal axis diameter: 300mm 5) Principal axis rotate speed: 750r/min 6) Spraying mouth on top: 2 fleets, 8 mouths 7) Principal axis is through dynamic & static balance correction. 8) The equipment is with the material-feeding function. | 1 |
4 | Film Rinse Tank | 1. Stir Motor Power: 3KW 2. Effective Washing Length: 6000mm 3. Tank Material: Stainless Steel 4. Residue Exclude Method: By Screw | 1 |
5 | Screw Conveyer | 1. Motor Power: 1.5KW 2. Conveying Capacity: ≥ 200kg/h 3. With Water-drainage Function. 4. Process Material: Stainless Steel | 1 |
6 | Film Dewatering Machine | 1. Motor Power: 37KW 2. Rotary Speed: 1500rpm 3. Process Material: Stainless Steel 4. Main Shaft: Through dynamic and static balance treatment. 5. Water -drainage Method: Downwards. | 1 |
7 | Drying System | 1. Fan Motor Power: 5.5KW 2.Heating Power:28KW,Electricity Heating Pipe, total 3 Groups 3. Pipe Tract Material: Stainless Steel 4. Pipe Tract Diameter: Φ 159mm 5. Pipe Tract Type: “U” Type | 1 |
8 | Material Store System/ hopper | 1. Cubage: 1 M ³ 2. Process Material: Stainless Steel 3. Material Lay-off Control: Plate Valve | 1 |
9 | Electricity Control | 1. Contactor is brand“siemens” | 1 |
10 | Production time | 39 days | |
11 | Guarantee period | One year |
If you are interested in our products,pleaser switch to our company to avoid your further troubles.Thank you.
