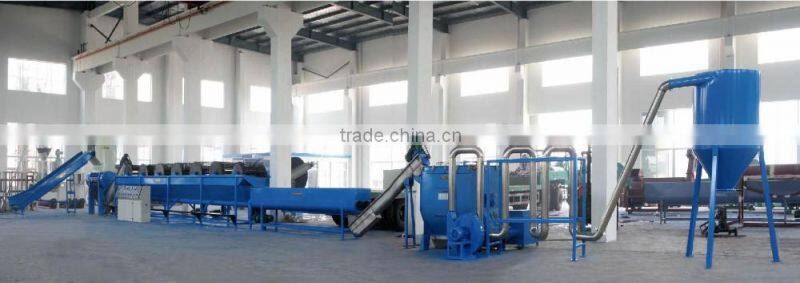

LDPE/HDPE Film Recycling Line

Number


   Description


Technical parameters

Quantity




      1


Belt Conveyor

1.Length: 4000mm
2. Width: 600mm
3. Material: Rubber
4. Conveying Capacity: 300Kg/h
5. Motor: 1.5KW


1



      2


Crusher with Water


1. Model:   PC700
2. Crush Capacity: 200Kg/h
3. Knife Material: Cr12MoV
4. Motor Power: 22KW
5. Feeder Throat Dimension: 700×450mm
6. Knife Gyration Diameter:   Φ360mm

1



     3


High speed friction washing machine


1) Motor power: 7.5 KW
2) Filtering method: Stainless Steel mesh
3) Process material: Stainless Steel
4) Principal axis diameter: 300mm
5) Principal axis rotate speed: 750r/min
6) Spraying mouth on top: 2 fleets, 8 mouths
7) Principal axis is through dynamic & static balance correction.
8) The equipment is with the material-feeding function.

1



      4


Film Rinse Tank


1. Stir Motor Power: 3KW
2. Effective Washing Length: 6000mm
3. Tank Material: Stainless Steel
4. Residue Exclude Method: By Screw

1




  5


Screw Conveyer


1. Motor Power: 1.5KW
2. Conveying Capacity: ≥ 200kg/h
3. With Water-drainage Function.
4. Process Material: Stainless Steel

1



     6


Film Dewatering Machine


1. Motor Power: 37KW
2. Rotary Speed: 1500rpm
3. Process Material: Stainless Steel
4. Main Shaft: Through dynamic and static balance treatment.
5. Water -drainage Method:  Downwards.

1




      7


Drying System


1. Fan Motor Power: 5.5KW
2.Heating Power:28KW,Electricity Heating Pipe, total 3 Groups
3. Pipe Tract Material: Stainless Steel
4. Pipe Tract Diameter: Φ 159mm
5. Pipe Tract Type: “U” Type

1



      8


Material Store System/ hopper


1. Cubage: 1 M ³
2. Process Material: Stainless Steel
3. Material Lay-off Control: Plate Valve

1


      9

Electricity Control

1. Contactor is brand“siemens”

1


   10

Production time

39 days

   11

Guarantee period

One year
