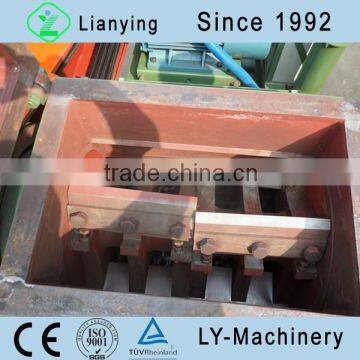

Crusher( T-*-13)

Product Name Interpretation: T is a fixed code, representing the eight-shaped turret structure crusher
the asterisk(*)  representates the width crusher cavity

Usage: for crushing PET bottles, HDPE, PP bottles etc

Note: be generally setted before conveyor feed, custom customer requirements: screw feeder for discharge or suction fan.

T-800-13  used in 500kg/h PET washing line, 300kg PE, PP film washing line
basic configuration:
motor power: 37kw;
capacity: 500kg/hr
crusher cutter size: 810x620mm
moving cutter quantity: 6 PCS
fixed knife quantity: 4 PCS
balde material: SK-11
hole size of screen mesh; 18mm-22mm
Iron Threaded rods to open the hopper
has water crushing function
machine size: 1600x1600x2450mm
machine weight:2000kgs
PET washing line, with 500 kg for 30kw, 1000kg/h for 55kw, 15000kg/h for 75kw, Another two: 22kw for 300kg/h, 45kw for 800 kg/h, other can custom.

Introduction of Plastic Bottle Washing Line

• This Plastic Bottle Washing Line is mainly used to recycling the waste PET bottles, water bottles, cola bottles,

PET sheet and PET packing containers.

• The whole line includes:conveyor belt, label remover(dry type or water type), sorting system,metal detecting system, plastic granulator or crusher, sink-float washing tank, hot washing system, frication washer, dewatering machine, thermal dryer, label/dust/fin separator and packing system.

• The above machines can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes.

• All your requirements of the Plastic Bottle Washing Line will be customized.

Features of Plastic Bottle Washing Line

• Labor saving. The Bale opening and feeding system we provide will equally feed the material.

• You can use the manually sorting system to selecting out different color bottles and non-PET material

• Metal detector is optional for you which used to take out any kind of metal from the PET bottles

• Specially designed PET bottle granulator can easily get high output and with water doing wet griding can

reduce wear of blades.

• High speed dewatering machine and drying system will insure the final PET flakes moisture <1%

• The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content

Technical Data of Plastic Bottle Washing Line

More Pictures of Plastic Bottle Washing Line
