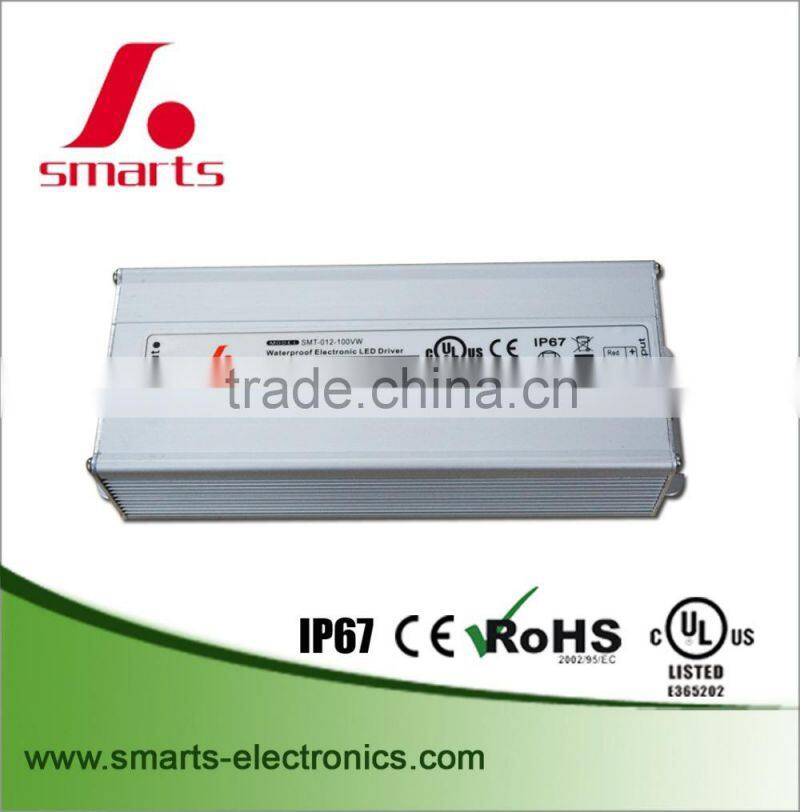

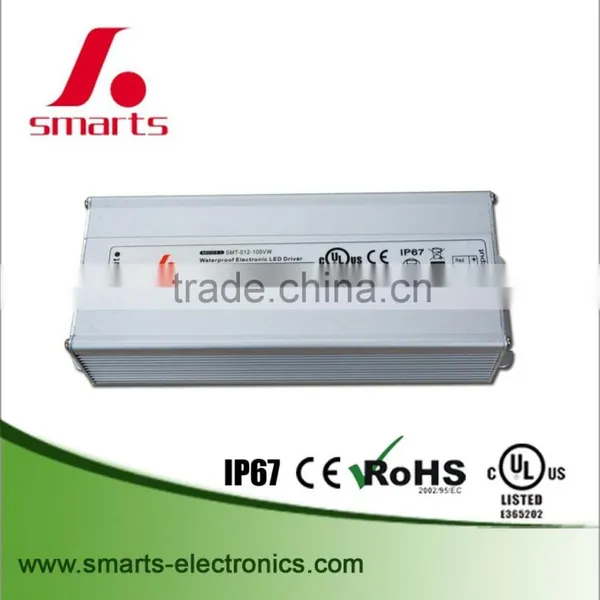

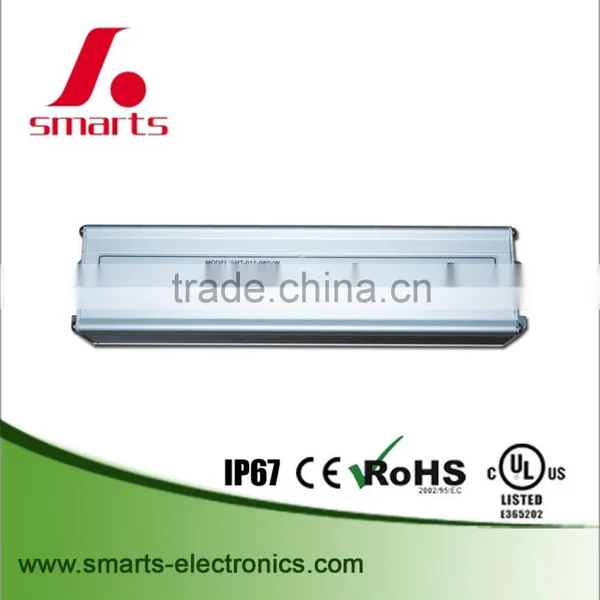

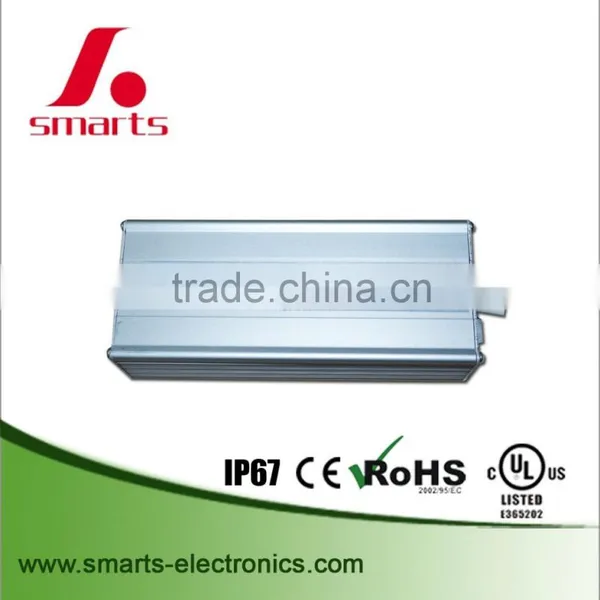

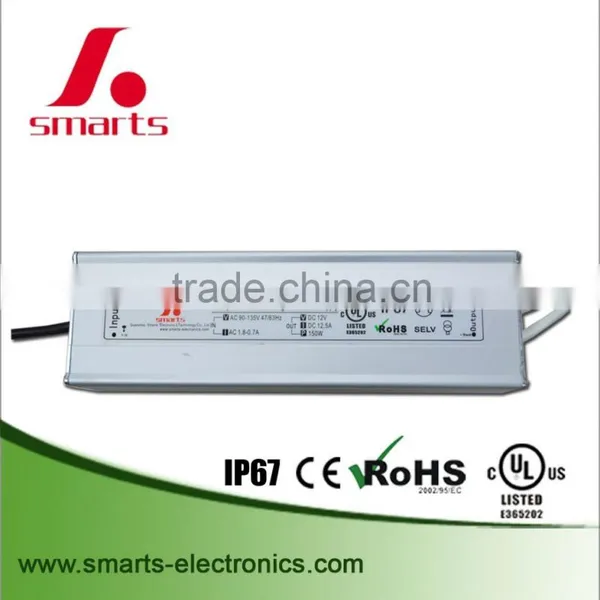

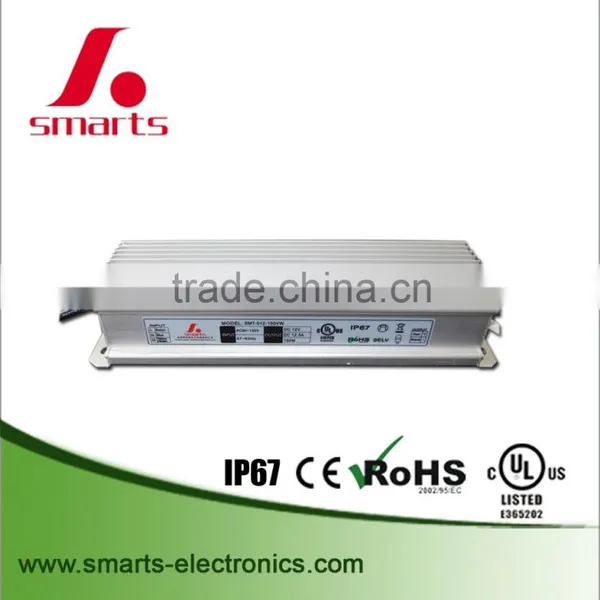

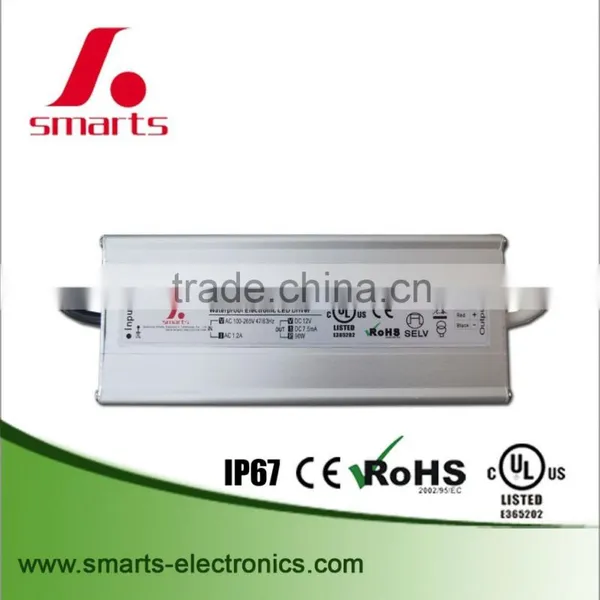

CE UL RoHS Approved Constant Voltage 12V 8.33A 100w Led Power Supply Led Driver

CE UL RoHS Approved Constant Voltage 12V 8.33A 100w Led Power Supply Led Driver photo-1
CE UL RoHS Approved Constant Voltage 12V 8.33A 100w Led Power Supply Led Driver photo-2
CE UL RoHS Approved Constant Voltage 12V 8.33A 100w Led Power Supply Led Driver photo-3
CE UL RoHS Approved Constant Voltage 12V 8.33A 100w Led Power Supply Led Driver photo-4
CE UL RoHS Approved Constant Voltage 12V 8.33A 100w Led Power Supply Led Driver photo-5
CE UL RoHS Approved Constant Voltage 12V 8.33A 100w Led Power Supply Led Driver photo-6
US$ 14 - 16 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-012-100VW
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name SMARTS
Model Number SMT-012-100VW
Output Power Other, 100w
Output Type Single
Input Voltage Other, 100-256V
Output Voltage 12V
Output Frequency 47-63Hz
Output Current 8.33Amp

CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply led driver

CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply/led driver



Product Description



What's the descriptions of CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply/led driver?

  1. Input volt.:100~265vAC
  2. Efficiency>82%
  3. Warranty: 2 years
  4. CE,UL,ROHS approval
  5. Size: 315*215*210 mm
  6. Net weight: 900g/pc
  7. Case material:aluminum housing
  8. Waterproof rate:  IP67
  9. CE, UL&CUL, ROHS approval

Features:

  1. High efficiency,save energy ,protected environment.
  2. High stability and low ripple, increase light efficiency and decrease light attenuation.
  3. Meet to safety standard and EMC
  4. Assure LED stability long lift and light efficiency by constant voltage.
  5. Integrity protection,over loading, over voltage ,over current.
  6. 8Hrs and 100% full load burn-in test.



Environment :

      1.Working Temperature : -25 ~ +50°C

      2.Working Humidity : 20 ~ 90% RH non-condensing

      3.Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH

      4.TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)

      5.Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes



Safety :

      1.Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved

      2.Withstand Voltage : I/P-O/P: 3000KVAC

      3.Isolation Resistance : I/P-O/P:100M Ohms/500VDC



Product parameters:

 Model

Input voltage(AC V)

Working Frequency
(Hz)

Output voltage
(DC V)

Output Current

Output power(DC W)

Working Temp.

Protection grade

SMT-012-100VW

100-265V

47~63HZ

12v

8.33A

100W

-25~50°C

IP67

SMT-024-100VW

100-265V

47~63HZ

24v

4.17A

100W

-25~50°C

IP67

SMT-012-150VW

90~135V/
170-265V

47~63HZ

12v

12.50A

150W

-25~50°C

IP67

SMT-024-150VW

90~135V/
170-265V

47~63HZ

24v

6.25A

150W

-25~50°C

IP67

What's CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply/led driver like?

CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply led driver

Hot-sale Products

waterproof/non-waterproof constant voltage led driver

CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply led driver

triac dimmable led driver

CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply led driver

0-10v/pwm dimmable led driver

CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply led driver

encolsure power supply

CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply led driver



Packaging & Shipping


CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply led driver

Company Information

Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail   website:



our team:

CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply led driver



certifications:

CE, UL/CUL, ROHS approval.

CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply led driver

factory & equipments view:

CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply led driver

Our market:

Our major markets are in EU & North America,it takes about 85% markets share. view transaction history

CE UL RoHS approved constant voltage 12V 8.33A 100w led power supply led driver

Our Services

why choose us??

1.    We are UL/cUL audited LED drivers/power supplies enterprise in China.

2.  Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience.

       it will guarantee your order 100% safe.

3.   Price is negotiable if you have large quantity demand

4.   100% QC inspection Before Shipping

5.    Best Quality & Best Service with Competitive price

6.   Shipping will be the most economical for you and freight cost is informed in advance for your consideration.

       decision for the shipping terms will be made according to your requirements

7.   Samples will be ready within 7 working days.

8.   We have our engineer team, if you have any question about your LED applications, let  us know freely,

      we will  give you the best solution.
9.    Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.

10.  OEM design & OEM packing welcom.

11.  Samples will be ready within 7 working days.

FAQ

FAQ

Q1.             What's type power supply do you have?

Answer:     We specialized in constant voltage & current LED drivers,

                   0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters



Q2.             What's shipping mode can we choose?

Answer:     1.FedEx/DHL/UPS/TNT/Express for samples;

                   2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

                   3. Customers specifying freight forwarders or negotiable shipping method



Q3.             What's the MOQ?

Answer:     Our MOQ is 500pcs, but we accept your trail order/small order, no problem.



Q4.             What can you do if the product is broken?

Answer:     We promise to replace new ones to you if there is any defective happen

                   during the warranty period, but we need pictures or video to prove the defective

                   comes from our quality problem



Q5.             How about the protection of product?

Answer:     Most of our products have protection of short-circuit. overload,
                   over voltage, over current and reserve polarity. About the specific product,

                   please consult our salesstuff.



Q6.              How about the transportation?

Answer:      For small order,express will be best.And for bulk order,sea ship way is best but take much time.

                    For urgent orders,we suggest via air to airport plus our ship partner send to your door.

                    We will cooperate with your choice.



Q7.              What's the Payment do you have?

Answer:      To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,

                    WESTERN UNION, PAYPAL. More payment options will be added in the near future
