ce ul 230v 110v ac 12v dc 200w transformator
| SPECIFICAION | ||||
| MODEL | SMT-012-200VW | SMT-024-200VW | SMT-036-200VW | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V |
| RATED CURRENT | 16.67A | 8.33A | 5.55A | |
| CURRENT RANGE | 0~16.67A | 0~8.33A | 0~5.55A | |
| RATED POWER | 200W | 200W | 150W | |
| RIPPLE&NOISE(max) | 150mV | 150mV | 150mV | |
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | ±0.5V | |
| SETUP RISE TIME | 80ms/110VAC, 220VAC | |||
| HOLD UP TIME(Typ.) | 60ms/110VAC, 220VAC | |||
| INPUT | VOLTAGE RANGE | 90~135VAC / 170~265VAC | ||
| FREQUENCY RANGE | 50~60Hz | |||
| POWER FACTOR(Typ.) | ||||
| EFFICIENCY(Typ.) | >82% | >82% | >82% | |
| AC CURRENT(Typ.) | 1.85A/110VAC, 220VAC | |||
| INRUSH CURRENT (Typ.) | COLD START 50A/110VAC, 220VAC | |||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | ||
| Overload | overload protected@145-160% above peak rating | |||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | |||

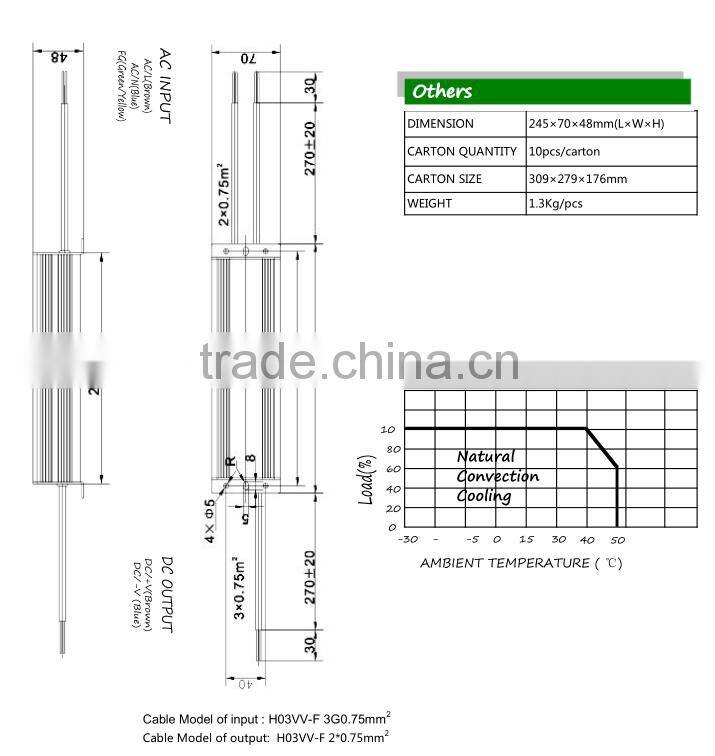

| ENVIRONMENT | WORKING TEMP. | -30~+55℃ (Refer to output load derating curve) | ||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | |||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | |||
| SAFETY&EMC | SAFETY STANDARDS | CE UL Mark(EMC,LVD),IP67 | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | |||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | |||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | ||||
Feature:
* IP67 design for indoor or outdoor installations
* Protections:Short circuit/Overload/Over temperature
* Cooling by free air convection
* 100% full load burn-in test
* Suitable for LED lighting
* Products through UL CE,RoHS Certification
* 2 years warranty
| G.W/ctn | Qty/ctn | Carton Size(mm) | |||||
| ce ul 230v 110v ac 12v dc 200w transformator | |||||||
| 1300g/pcs | 13.5kg/ctn | 10pcs | 475*298*185mm | ||||
| |
|
What kind of LED Driver/Power Supply We do??
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
Triac CC&CV Dimmable Series
| 0-10V CC&CV Dimmable Series
| DALI CC&CV Dimmable Series
|
Wall-mount Power Adapter
| HOME | Desktop Power Adapter
|
Constant Voltage Series
| Enclosue Power Supply
| Constant Current Series
|
Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.
We have 7 kinds of led drivers or led power supply:
1.Constant Voltage LED Driver;
2.Constant Current LED Driver;
3.Triac CC&CV Dimmable LED Driver
4.0-10v CC&CV Dimmable LED Driver
5.DALI CC&CV Dimmable LED Driver
6.Power Adapter
7.Switching Power Supply
All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
factory & equipments view:
certifications:
CE, UL/CUL, ROHS approval.
What Service we can supply??
- All inquiries will be replied within 24 hours
- Professional manufacturer,welcom to visit our website
- OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; - After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
Frequently Asked Questions
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Q10.How to contact with me??
A9: Skype: sales5smt
Tel.:+86 (595) 2286 3721
***Any questions,Just feel free to click "send" to contact with me.^-^***
