Single Phase 110v 230v ac to 24v 36v dc 200w Led Transformer

Single Phase 110v 230v ac to 24v 36v dc 200w Led Transformer thumbnail-1
Single Phase 110v 230v ac to 24v 36v dc 200w Led Transformer thumbnail-2
Single Phase 110v 230v ac to 24v 36v dc 200w Led Transformer thumbnail-3
Single Phase 110v 230v ac to 24v 36v dc 200w Led Transformer thumbnail-4
Single Phase 110v 230v ac to 24v 36v dc 200w Led Transformer thumbnail-5
Single Phase 110v 230v ac to 24v 36v dc 200w Led Transformer thumbnail-6
Single Phase 110v 230v ac to 24v 36v dc 200w Led Transformer photo-1

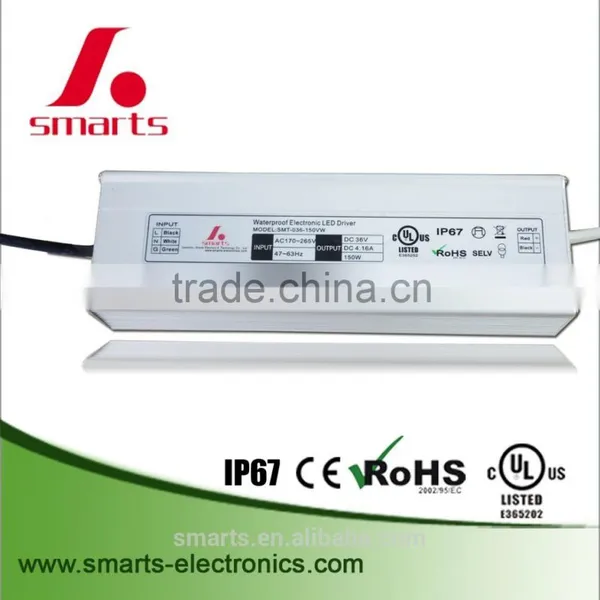

Single Phase 110v 230v ac to 24v 36v dc 200w Led Transformer photo-2

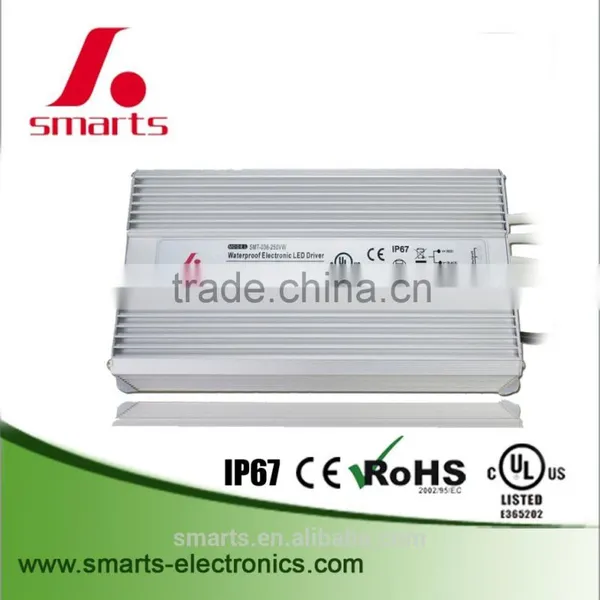

Single Phase 110v 230v ac to 24v 36v dc 200w Led Transformer photo-3
Single Phase 110v 230v ac to 24v 36v dc 200w Led Transformer photo-4
Single Phase 110v 230v ac to 24v 36v dc 200w Led Transformer photo-5

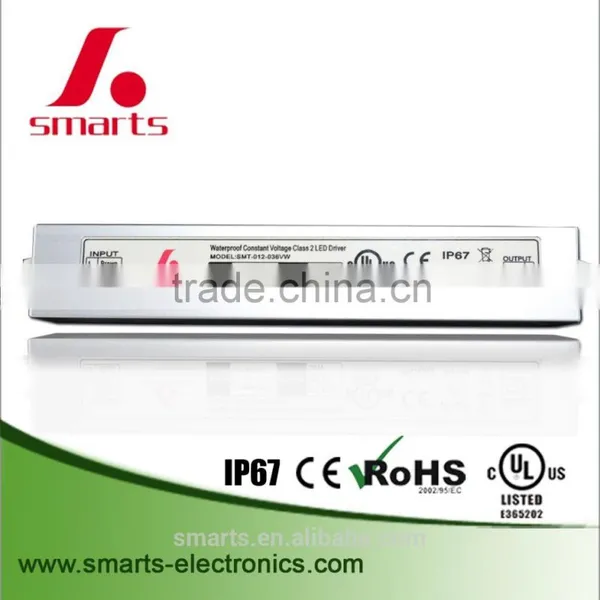

Single Phase 110v 230v ac to 24v 36v dc 200w Led Transformer photo-6
US$ 10 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-036-200VW
Contact Supplier Request Quote Chat Now
Quanzhou Smarts Electronic & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name SMARTS
Model Number SMT-036-200VW
Output Power Other, 200W
Output Type Single
Input Voltage Other, 100-265vAC
Output Voltage 36V
Output Frequency 47-63Hz
Output Current 5.56A

single phase 110v 230v ac to 24v 36v dc 200w led transformer

Product Description
SPECIFICAION
MODEL SMT-012-200VW SMT-024-200VW SMT-036-200VW
OUTPUT DC VOLTAGE 12V 24V 36V
RATED CURRENT 16.67A 8.33A 5.55A
CURRENT RANGE 0~16.67A 0~8.33A 0~5.55A
RATED POWER 200W 200W 150W
RIPPLE&NOISE(max) 150mV 150mV 150mV
VOLTAGE TOLERANCE ±0.5V ±0.5V ±0.5V
SETUP RISE TIME 80ms/110VAC, 220VAC
HOLD UP TIME(Typ.) 60ms/110VAC, 220VAC
INPUT VOLTAGE RANGE 90~135VAC / 170~265VAC
FREQUENCY RANGE 50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) >82% >82% >82%
AC CURRENT(Typ.) 1.85A/110VAC, 220VAC
INRUSH CURRENT (Typ.) COLD START 50A/110VAC, 220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed

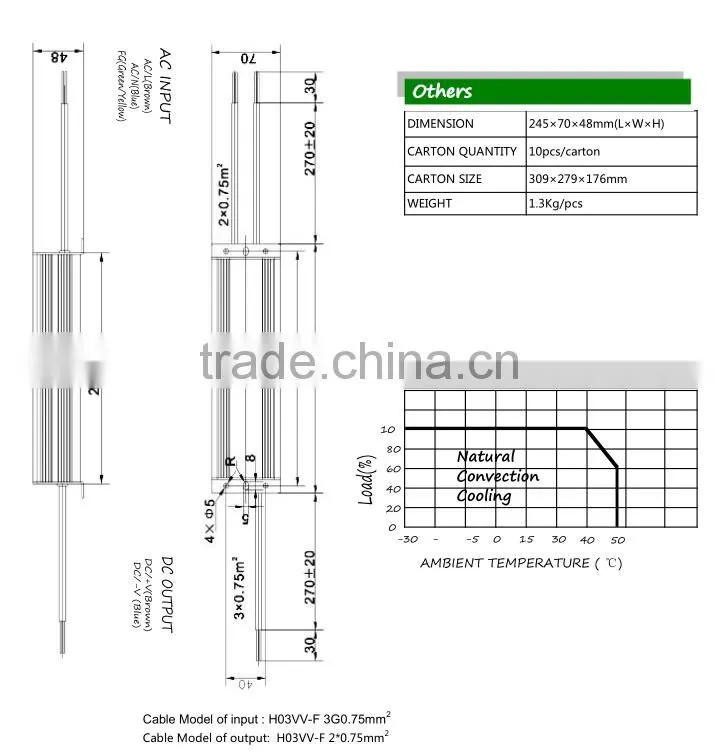

ENVIRONMENT WORKING TEMP. -30~+55℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS CE UL Mark(EMC,LVD),IP67
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006



Feature:

* IP67 design for indoor or outdoor installations
* Protections:Short circuit/Overload/Over temperature
* Cooling by free air convection
* 100% full load burn-in test
* Suitable for LED lighting
* Products through UL CE,RoHS Certification
* 2 years warranty

single phase 110v 230v ac to 24v 36v dc 200w led transformer

Packing and Shipping
  G.W/ctn Qty/ctn Carton Size(mm)
single phase 110v 230v ac to 24v 36v dc 200w led transformer
1300g/pcs 13.5kg/ctn 10pcs 475*298*185mm




single phase 110v 230v ac to 24v 36v dc 200w led transformer
  • MOQ: 1 pcs
  • Payment:
  • Delivery: 7 working days for sample order,12 working days for 500pcs.
  • FOB , EXW and CIF all are available.
  • Shipping freight are quoted under your requests.
  • Loading port: Xiamen
  • Discounts are offered based on large quantities.
  • Price: Get quote

single phase 110v 230v ac to 24v 36v dc 200w led transformer
