Home > Products > waterproof constant current LED driver > slim led driver 40w constant current 700ma

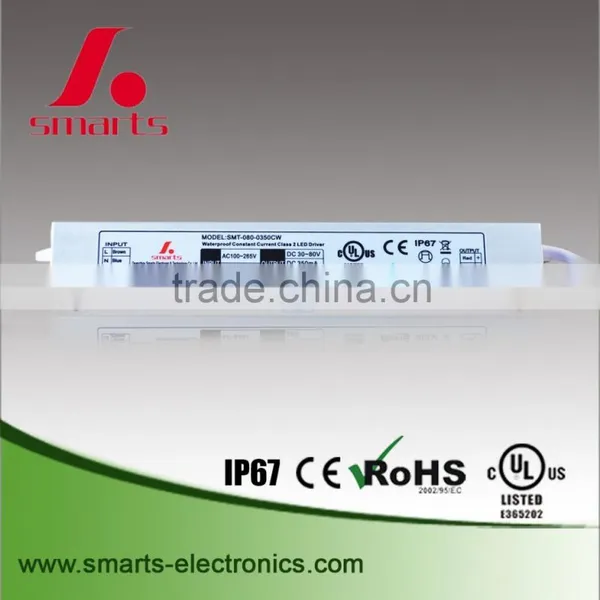

slim led driver 40w constant current 700ma
- 50000 Piece / Pieces per Month
- xiamen
- Credit Card
- ME Series Modules High Stability High Voltage Power Supply for Microchannel Plates
- MMC Series DC High Stability Voltage Power Supply for Microchannel Plates (100V-600V,0.1W)
- Brand new power box 640C0022G01 York control system motherboard power supply GLC75D-CVG
- Power Supplies TVD1.3-15-03 Original Stock
- 10W 2.5KV Isolation Wide Input AC/DC Converters
- 30W Wide Voltage Input DC/DC Converters power supply
Product Details
Place of Origin: | Fujian, China | Brand Name: | SMARTS | Model Number: | SMT-058-0700CW |
Output Power: | Other, 40watt | Output Type: | Single | Input Voltage: | Other, 100-265vAC |
Output Voltage: | 45-58v | Output Frequency: | 47-63Hz | Output Current: | 700mA |
Product Description

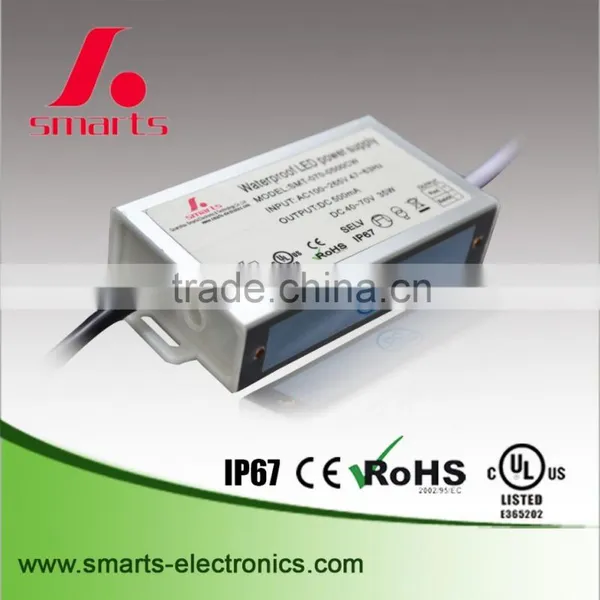

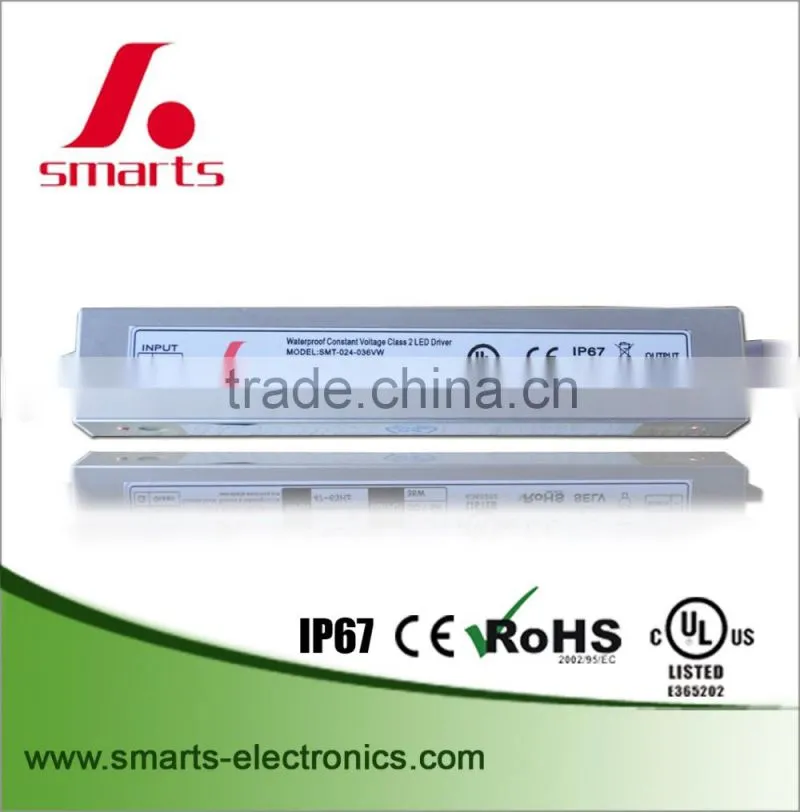

slim led driver 40w constant current 700ma
Description:
- Input voltage.:100-265V AC
- Efficiency>85%
- Warranty: 2 years
- CE,UL,ROHS approval
- product dimension(L x W x H): 122*58*26mm
- Net weight:217g/pc
- Case material:aluminum
- Waterproof rate: IP67
Features:
- High efficiency,save energy ,protected environment
- High stability and low ripple, increase light efficiency and decrease light attenuation
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage
- Passed high ,low temperature and waterproof testing.
- integrity protection,over loading, over voltage ,over current
- 8Hrs and 100% full load burn-in test.
Environment:
- Working Temperature : -30 ~ +60°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety:
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Product parameters:
item NO. | INPUT | Input | OUTPUT | OUTPUT | OUTPUT | IP rate |
SMT-058-0700CW | 100-265v AC | 47-63Hz | 700mA | 45-58V | 40W | IP67 |
SMT-050-0900CW | 100-265v AC | 47-63Hz | 900mA | 35-50V | 45W | IP67 |
SMT-040-1050CW | 100-265v AC | 47-63Hz | 1050mA | 20-40V | 45W | IP67 |
SMT-036-1750CW | 100-265v AC | 47-63Hz | 1750mA | 20-36V | 63W | IP67 |
SMT-030-2000CW | 100-265v AC | 47-63Hz | 2000mA | 20-30V | 60W | IP67 |
Application:
Our products are widely used in various industries, such as:
- Outdoor LED illuminating lights,
- LED Neon,
- LED City Decoration,
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights,
- Controller Panels, etc.
slim led driver 40w constant current 700ma
What's the other type power supply do you have???
Answer: We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
IP67 constant volatge led drivers | constant current led drivers | switching power supplies |
triac dimmable led drivers
| 0-10v dimmable led drivers | DALI dimmable led drivers
|
Packing:
Shipping
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 2 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
our market

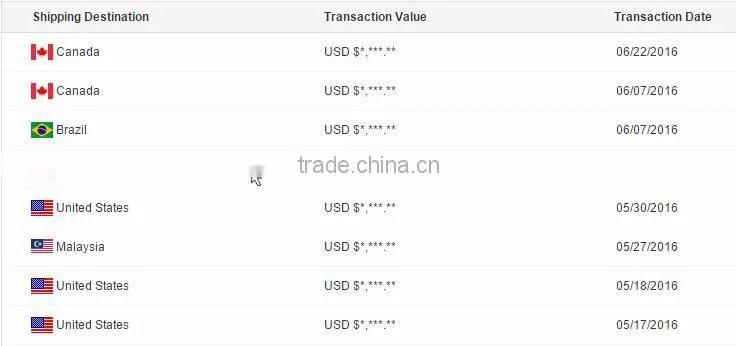

Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
factory & equipments view:
FAQ
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future!
