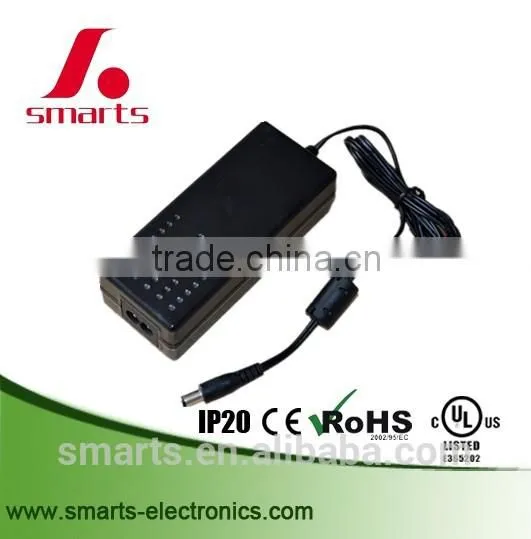

110v-240vac 24v dc 12w us eu uk plug adapter/adaptor
Model No. |
Input (Vac) |
output (Vdc) |
Current (Amp) |
power (Watt) |
Tol. |
R&N |
Effi. |
SMT-012-012VP |
100-240V |
12Vdc |
1Amp |
12W |
±4% |
100mV |
>82% |
SMT-024-012VP |
100-240V |
24Vdc |
0.5Amp |
12W |
±4% |
100mV |
>82% |
- wall-mount type AC/DC switching power supply
- Low standby power consumption
- Approval CE,ROHS,UL,
- 18 months warranty
General Specification
- AC input voltage range ............. 100~240VAC / 0.5A
- AC inrush current (max.) ...........Cold start, <40A at 230VAC
- Overload protection................... Hiccup mode, auto-recovery
- Over voltage protection .............110~140% rated output voltage
- Hold up time...............................16ms at full load
- Withstand voltage...................... I/P-O/P: 4242VDC, 1minute
- Working temperature..................0~40°C @ 100% load, 50°C @ 70% load
- Safety standards........................ UL1950, TUV EN60950-1 approved
- EMC standards.......................... EN55022-B, EN61000-3-2,3, EN61347-1
- Length of output cable................180cm of SPT-1,18AWG x2C
- Standard DC plug....................... P2J: 2.1x5.5x10mm / C+, barrel type
PROTECTION:
- Short Circuit Protection
If short circuit occurs,all the output should be protected. After the fault, the adapter automatically recovers.
- Over Shoot
The Output over shoot at turn-on shall not exceed 10% of normal voltage value with or without the load connected.
- Start-up time
The start-up time is less than 2 second.
ENVIRONMENTAL CONDITIONS:
- Temperature
Operating temperature: 0℃ to +40℃
Storage temperature : -20℃ to +60℃
- Humidity
Relative humidity:≤95%
- Operating Ambient Altitude
Altitude:0-3000m
- Operating at the lower temperature
At -0℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery at the room temperature.
- Operating at the high temperature
At +40℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full Load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery at the room temperature.
- COOLING:
Cooling shall be with natural convection cooling.
- Burn-in
The burn-in test will be performed at least 4 hours at centigrade
degrees under full load Condition.
- Referenced standard:
EMI Standards
Reference EN50082-1,EN55022-B,GB-17625.1-2003, GB-9254-1998
- Safety Standards
The adapter shall be meet certified with the following safety standards.
UL60950-1,EN60950-1,GB4943-2001
MOUNTING CONNECTORS:
- AC Input Connector
Spec :2Pin (CE PIN)
- DC Output Cable
Wire : (Optional) UL2468 24AWG*2C L=1200mm Color: Black
Plug : (Optional) 5.5 x 2.1x 10mm Turning fork line
MECHANICAL FEATURES:
- Dimension(Size)
Length: 75mm
Width: 42mm
Height: 30mm
- Weight
The Power Supply unit : 79±10g
- Vibration and shock
No Evidence of any mechanical or functional damage after the vibration and shock testing.
Test conditions |
Acceptance Criteria |
|
Frequency |
10-55Hz |
Nominal functional test should be satisfied after the test |
Sweep |
For each axis(X,Y,Z) |
|
Displacement |
0.15mm |
|
Periodicity |
10 |
|
- Drop test
After Dropping from a hight of 100 cm onto a wooden floor , Dropping at 6 sides totally, NO breakage should be happened in the test piece.
- Bending Test
Fix the power supply and its plug, apply a load of 200g to the other end, turn the cable by +/-60℃ carry out this process 1000 times, at the rate of 20 times per minutes. No abnormality in mechanical and electrical Characteristic and disconnection within 30% after the test.
DIAGRAM DATA:( See to attach the diagram)
Remarks:
1) UL2468 24AWG*2C L=1200mm Color: Black
2) PLUG:5.5 x 2.1 x 10mm Turning fork line
| |
|
What kind of LED Driver/Power Supply We do??
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
|
Triac CC&CV Dimmable Series
|
0-10V CC&CV Dimmable Series
|
DALI CC&CV Dimmable Series
|
|
Constant Voltage Series
|
Enclosue Power Supply
|
Constant Current Series
|
What kind of power cords we can help you fix in our LED Driver/Power Supply??
Answer: We can help you fix / find all kinds of power cords to our drivers as per your request, for example:
Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.
We have 7 kinds of led drivers or led power supply:
1.Constant Voltage LED Driver;
2.Constant Current LED Driver;
3.Triac CC&CV Dimmable LED Driver
4.0-10v CC&CV Dimmable LED Driver
5.DALI CC&CV Dimmable LED Driver
6.Power Adapter
7.Switching Power Supply
All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
our sales team:
factory & equipments view:
certifications:
CE, UL/CUL, ROHS approval.
What Service we can supply??
-
All inquiries will be replied within 24 hours
-
Professional manufacturer,welcom to visit our website
- OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; - After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
