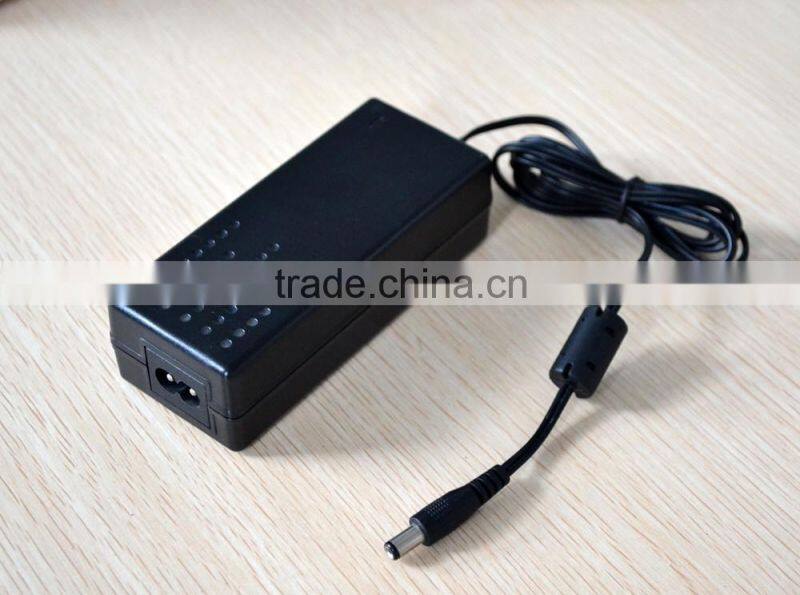

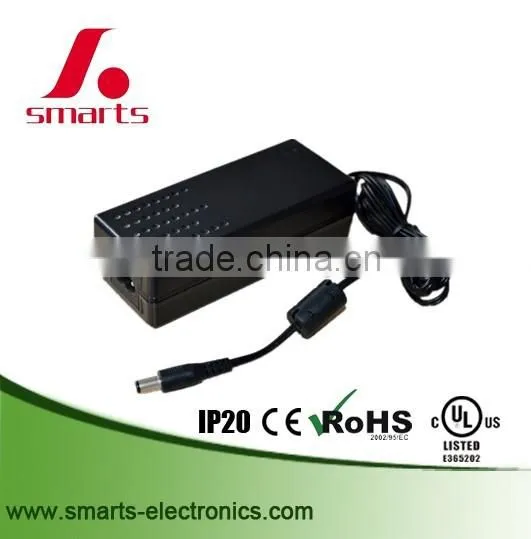

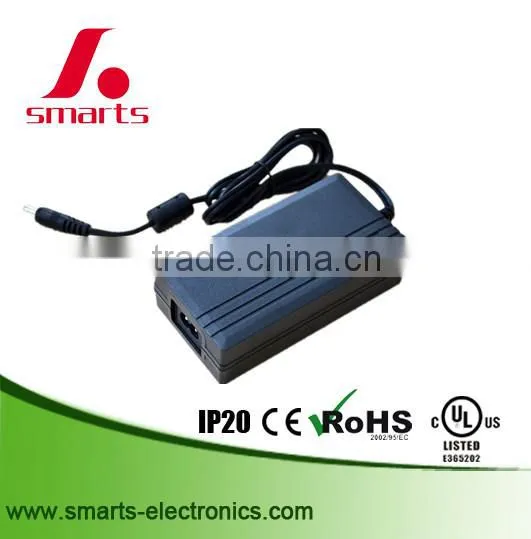

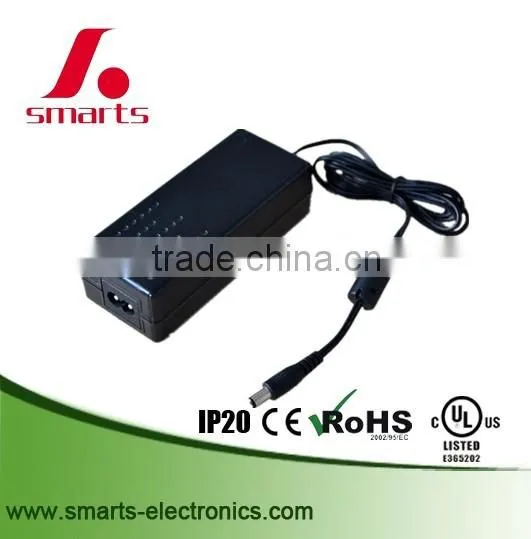

ip20 UL CUL approval 4a 12v dc power adapter with 2 pin 3-pin us plug

INPUT REQUIREMENTS:

1 Operating range: 90-264VAC

2 Rated Input Voltage :100-240VAC

3 Input Frequency Range: 50/60Hz +/-3Hz

4 Input In-rush Current: 30A max

5 Input Current: 1.5A max

OUTPUT REQUIREMENTS:

1  Output Voltage and Current

2  Output Voltage Regulation

   The total output voltage regulation shall be +/-5%,including the effects of line voltage variations,load current,ripple and noise,and the AC component of the load current.

3  Output Voltage Ripple

   The switching power supply shall not exceed the following limits in the indicated voltage for 60Hz or 50Hz ripple,switching frequency ripple and noise measured with 20MHz width.

   Ripple and Noise:50/60Hz Ripple + Switching Ripple and Noise

Ripple and Noise are measured at the end of output cables which are added a

0.1uF(104) Ceramic capacitor and a 22uF Electrolytic capacitor.

4. EFFICIENCY:

   When 120VAC line input voltage (100-240VAC),the efficiency shall be >82% at rating load.

5. DIELECTRIC STRENGTH (Hi-Pot) TEST:

   Finished product withstands with AC 3000Vrms/50Hz,5mA max,

   primary to secondary, 1 minute for type test,1 second for production test.

6. INSULATION RESISTANCE:

   Primary to secondary: 10MΩ min at 500VDC.

7. PROTECTION:

7.1   Short Circuit Protection

   If short circuit occurs,all the output should be protected. After the fault, the adapter automatically recovers.

7.2  Over Shoot

    The Output over shoot at turn-on shall not exceed 10% of normal voltage value with or without the load connected.

7.3  Start-up time

    The start-up time is less than 2 second.

8. ENVIRONMENTAL CONDITIONS:

8.1  Temperature

    Operating temperature:  0℃  to  +40℃

    Storage temperature :  -20℃ to  +60℃

8.2  Humidity

Relative humidity:≤95%

8.3  Operating Ambient Altitude

     Altitude:0-3000m

8.4  Operating at the lower temperature

      At -0℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery  at the room  temperature.

8.5   Operating at the high temperature

      At +40℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full Load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery  at the room  temperature.

9. COOLING:

    Cooling shall be with natural convection cooling.

10.Burn-in

    The burn-in test will be performed at least 4 hours at centigrade

    degrees under full load Condition.

11.Referenced standard:

11.1  EMI Standards

    Reference  EN50082-1,EN55022-B,GB-17625.1-2003, GB-9254-1998

11.2  Safety Standards

    The adapter shall be meet certified with the following safety standards.

    UL61347-1,EN61347-1,GB4943-2001

12.  MOUNTING CONNECTORS:

12.1  DC Output Cable

     Wire : (Optional) SPT-1 18AWG*2C  L=1200mm  Color: Black

     Plug : (Optional) 5.5*2.1*10mm

13.  MECHANICAL FEATURES:

13.1  Dimension(Size)

     Length: 116mm

     Width: 49mm

     Height: 35mm

13.3  Vibration and shock

      No Evidence of any mechanical or functional damage after the vibration and shock testing.

14 .  DIAGRAM DATA:( See to attach the diagram)

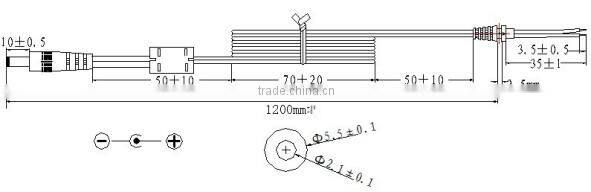

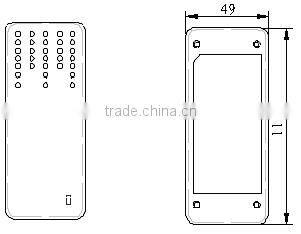

14.1. APPEARANCE DRAWING:(Unit:mm)

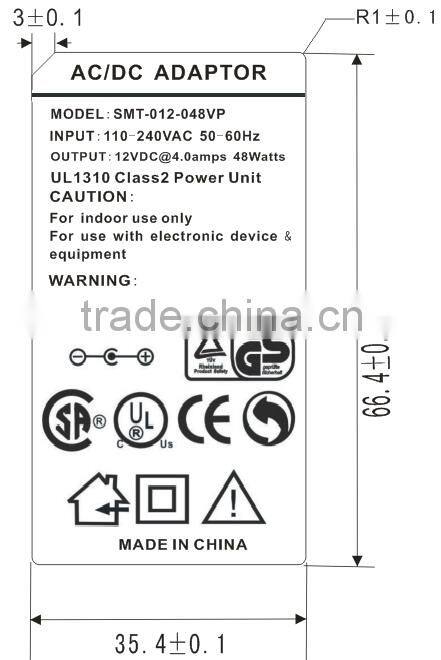

14.2. NAME PLATE: (Unit:mm)

  NOTE:  MATERIAL:POLYESTER COATIONG:0.10+/-0.03mm

14.3. DIMENSION OF OUTPUT PLUG & DC CORD:(Unit:mm)

Remarks:

• SPT-1 18AWG*2C  L=1200mm  Color: Black
• PLUG: 5.5*2.1*10mm

MOQ: 1 PCS

Payment : T/T  Western union  Paypal  Trade  Assurance

Delivery : 7 working days for sample order ,  12 working days for 500pcs

Shipping term : FedEx  DHL  UPS  TNT
