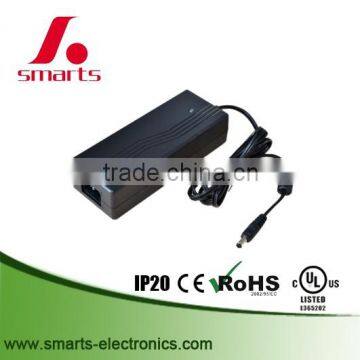

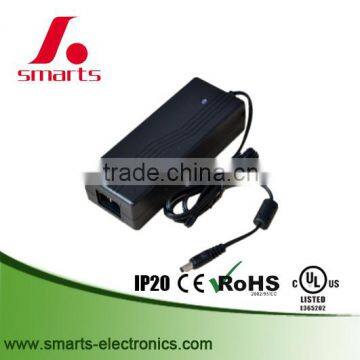

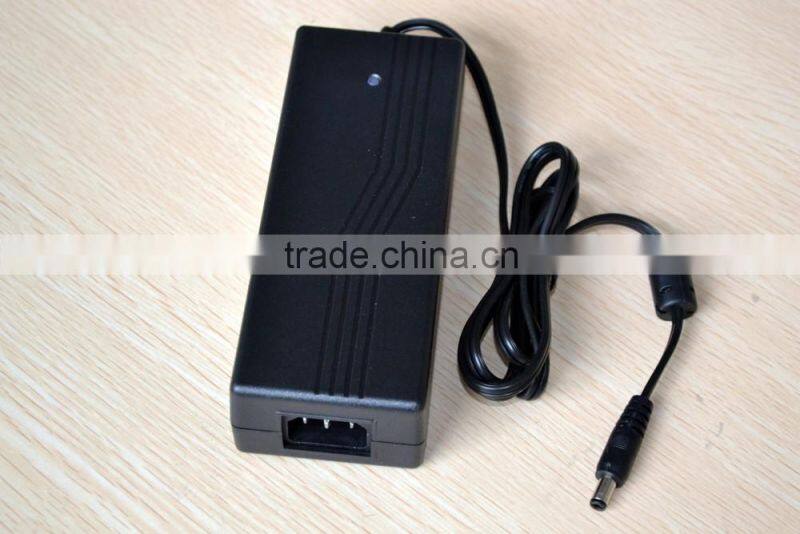

100-240 vac power supply ac dc 12v 6a the power adapter
INPUT REQUIREMENTS:
Operating range: 90-264VAC
Rated Input Voltage :100-240VAC
Input Frequency Range: 50/60Hz +/-3Hz
Input In-rush Current: 100A max
Input Current: 1.5A max
OUTPUT REQUIREMENTS:
Output Voltage and Current
Output |
Output Regulation(V) |
No Load |
Rating Load (A) |
|
Voltage(V) |
Minimum |
Maximum |
Current(A) |
Continuous Current(A) |
12V |
11.4V |
12.6V |
0A |
6A |
Output Voltage Regulation
The total output voltage regulation shall be +/-5%, including the effects of line voltage variations,load current,ripple and noise,and the AC component of the load current.
Output Voltage Ripple
The switching power supply shall not exceed the following limits in the indicated voltage for 60Hz or 50Hz ripple,switching frequency ripple and noise measured with 20MHz width.
Ripple and Noise:50/60Hz Ripple + Switching Ripple and Noise
Output |
Ripple |
0-6A |
/ |
Ripple and Noise are measured at the end of output cables which are added a
0.1uF(104) Ceramic capacitor and a 22uF Electrolytic capacitor.
EFFICIENCY:
When 220VAC line input voltage (100-240VAC),the efficiency shall be >82% at rating load.
DIELECTRIC STRENGTH (Hi-Pot) TEST:
Finished product withstands with AC 3000Vrms/50Hz,5mA max,
primary to secondary, 1 minute for type test,1 second for production test.
INSULATION RESISTANCE:
Primary to secondary: 10MΩ min at 500VDC.
PROTECTION:
Short Circuit Protection
If short circuit occurs,all the output should be protected. After the fault, the adapter automatically recovers.
Over Shoot
The Output over shoot at turn-on shall not exceed 10% of normal voltage value with or without the load connected.
Start-up time
The start-up time is less than 2 second.
ENVIRONMENTAL CONDITIONS:
Temperature
Operating temperature: 0℃ to +40℃
Storage temperature : -20℃ to +60℃
Humidity
Relative humidity:≤95%
Operating Ambient Altitude
Altitude:0-3000m
Operating at the lower temperature
At -0℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery at the room temperature.
Operating at the high temperature
At +40℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full Load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery at the room temperature.
COOLING:
Cooling shall be with natural convection cooling.
Burn-in
The burn-in test will be performed at least 4 hours at centigrade
degrees under full load Condition.
Referenced standard:
EMI Standards
Reference EN50082-1,EN55022-B,GB-17625.1-2003, GB-9254-1998,
EN55013 EN55020
Safety Standards
The adapter shall be meet certified with the following safety standards.
UL61347, EN61347,GB4943-2001, J55013,J55020,J60065
MOUNTING CONNECTORS:
DC Output Cable
Wire : (Optional) SPT-1 18AWG*2C L=1200mm Color: Black
Plug : (Optional) 5.5*2.1*10mm
MECHANICAL FEATURES:
Dimension(Size)
Length: 119.5mm
Width: 62.5mm
Height: 33.5mm
Vibration and shock
No Evidence of any mechanical or functional damage after the vibration and shock testing.
Test conditions |
Acceptance Criteria |
|
Frequency |
10-55Hz |
Nominal functional test should be satisfied after the test |
Sweep |
For each axis(X,Y,Z) |
|
Displacement |
0.15mm |
|
Periodicity |
10 |
|
DIAGRAM DATA:( See to attach the diagram)

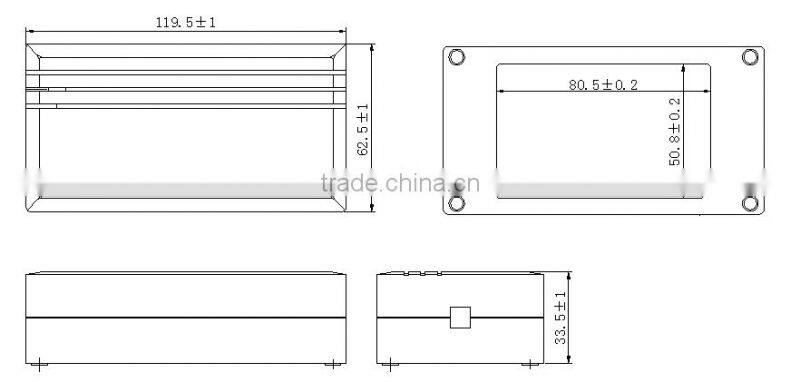

APPEARANCE DRAWING:(Unit:mm)

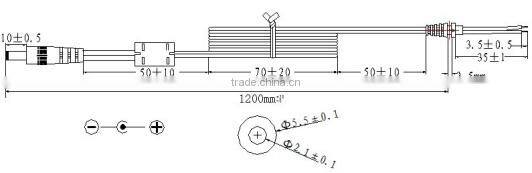

DIMENSION OF OUTPUT PLUG & DC CORD:(Unit:mm)
Remarks:
- SPT-1 18AWG*2C L=1200mm Color: Black
- PLUG: 5.5*2.1*10mm

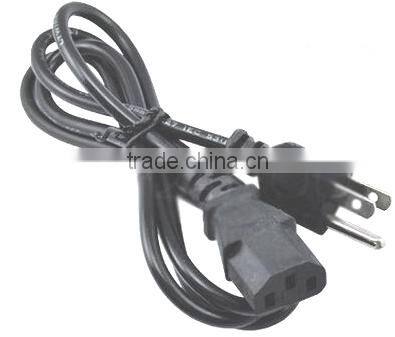

DIMENSION OF INPUT PLUG & AC CORD:(Unit:mm)
- Spec:3pin (UL PIN) L=1200m, Color:Black.
- PLUG: C14 plug Color:Black
