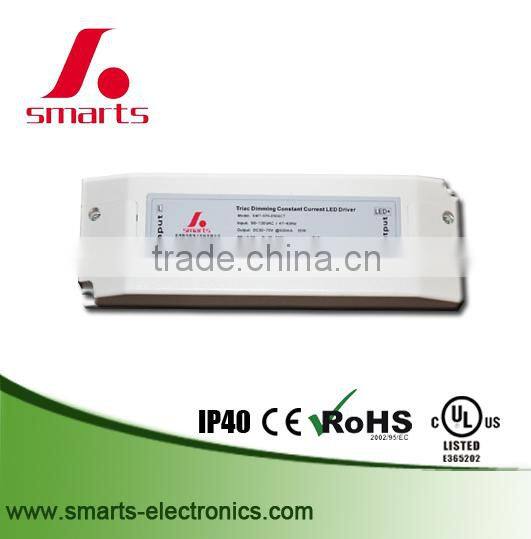

45W 1400ma cc triac dimmable for panel light led driver
Features:
non-waterproof triac dimmable led strip driver 1400ma 1050ma
·Input range :90-135VAC / 170-265VAC
·Built-in PFC function
·Efficiency > 84% / PF>0.9
·Protections:Short circuit/over Voltage
·Fully isolated plastic case
·Easy installation
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·3 years warranty
·Lifespan:(MTBF)50,000 hours
Environment parameter:
Working temperature: -40~+60℃
Working humidity:20~90%RH,non-condensing
Storage TEM.,Humidity: -40~+80℃,10~95%RH
efficient: ±0.03%/℃(0~50℃)
Vibration: 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety &EMC:
Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
Withstand Voltage : I/P-O/P: 3000KVAC
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
EMC EMISSION: Compliance toEN55015,EN61000-3-2 (> or=50%load)
EMC IMMUNITY : Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)
Notes:
1. All parameters NOT specially mentioned are measured at 110V/ 230VAC input , rated load and25℃of ambient temperature
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pairwire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation
Application:
Our products are widely used in various industries, such as outdoor LED illuminating lights, LED Neon, LED City Decoration, LED Lighting Advertising, LED Display, Safety Protection Apparatus, Telecommunications, Networks, Vehicle Lights, Controller Panels, etc.
Product parameters:
Model | Input voltage(vAC) | Working Frequency (Hz) | Output voltage (vDC) | Output Current | power (Watt) | Working. Temp | Protection grade |
SMT-090-0500CT | 90-135V/170-265v | 47~63Hz | 60-90V | 500mA | 45W | -40~50°C | IP40 |
SMT-080-0500CT | 90-135V/170-265v | 47~63Hz | 50-80V | 500mA | 40W | -40~50°C | IP40 |
SMT-120-0350CT | 90-135V/170-265v | 47~63Hz | 90-120V | 350mA | 42W | -40~50°C | IP40 |
SMT-065-0700CT | 90-135V/170-265v | 47~63Hz | 40-65V | 700mA | 45W | -40~50°C | IP40 |
| SMT-050-0900CT | 90-135V/170-265v | 47~63Hz | 25-50V | 900mA | 45W | -40~50°C | IP40 |
| SMT-045-1050CT | 90-135V/170-265v | 47~63Hz | 20-45V | 1050mA | 45W | -40~50°C | IP40 |
SMT-040-1200CT | 90-135V/170-265v | 47~63Hz | 30-40V | 1200mA | 45W | -40~50°C | IP40 |
| SMT-032-1400CT | 90-135V/170-265v | 47~63Hz | 15-32V | 1400mA | 45W | -40~50°C | IP40 |

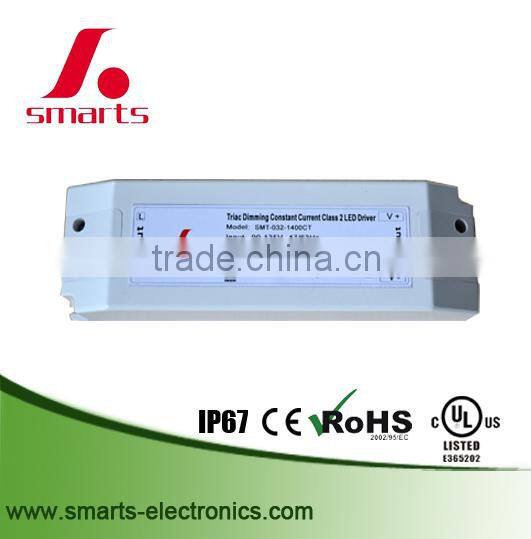

45W 1400ma cc triac dimmable for panel light led driver

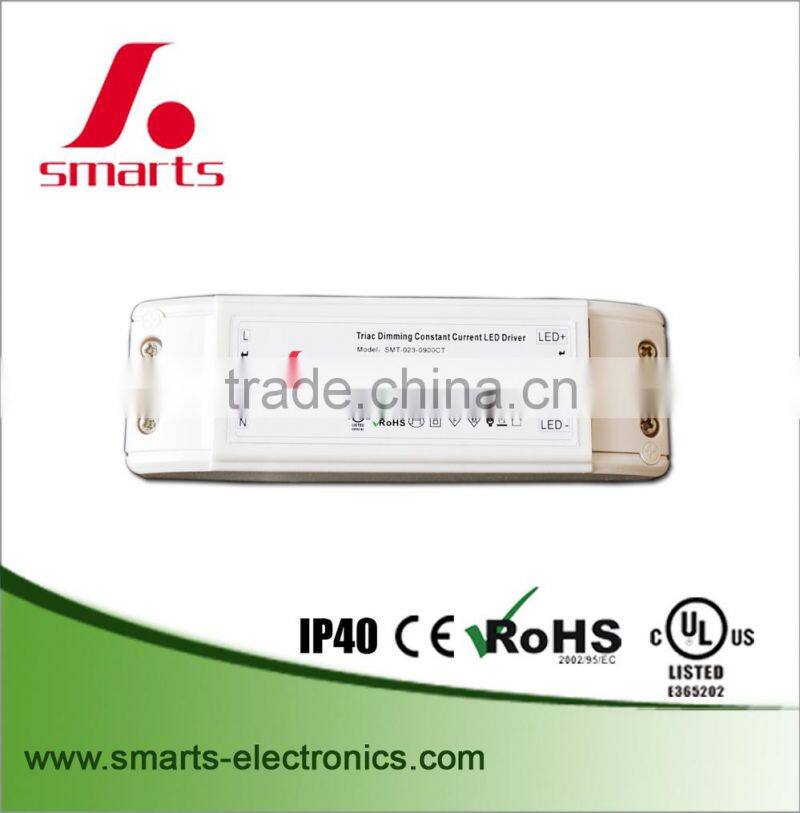

high pfc triac dimmable 900mA driver

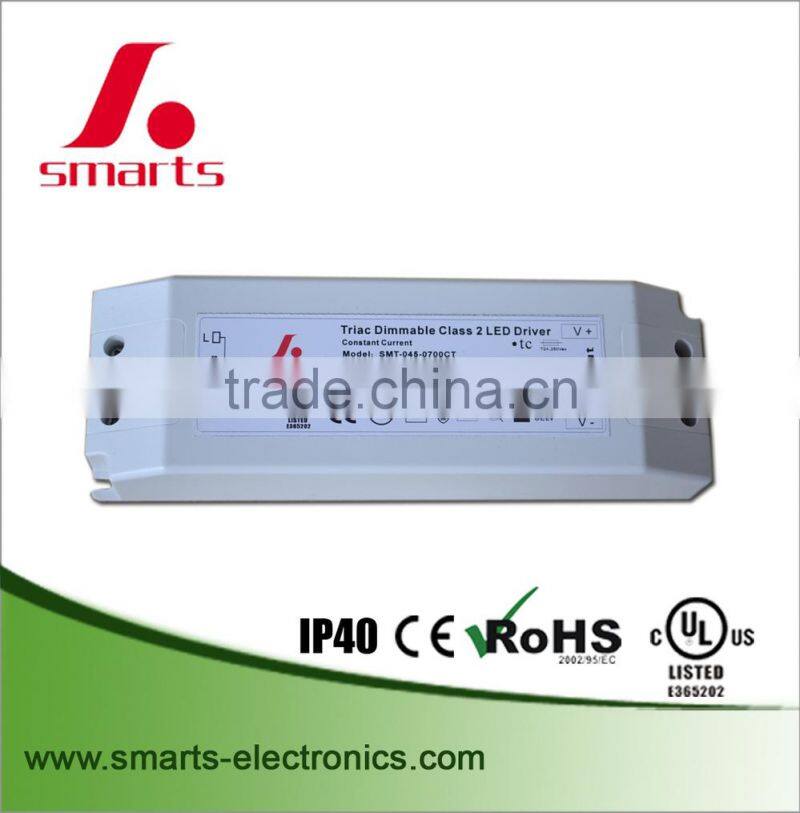

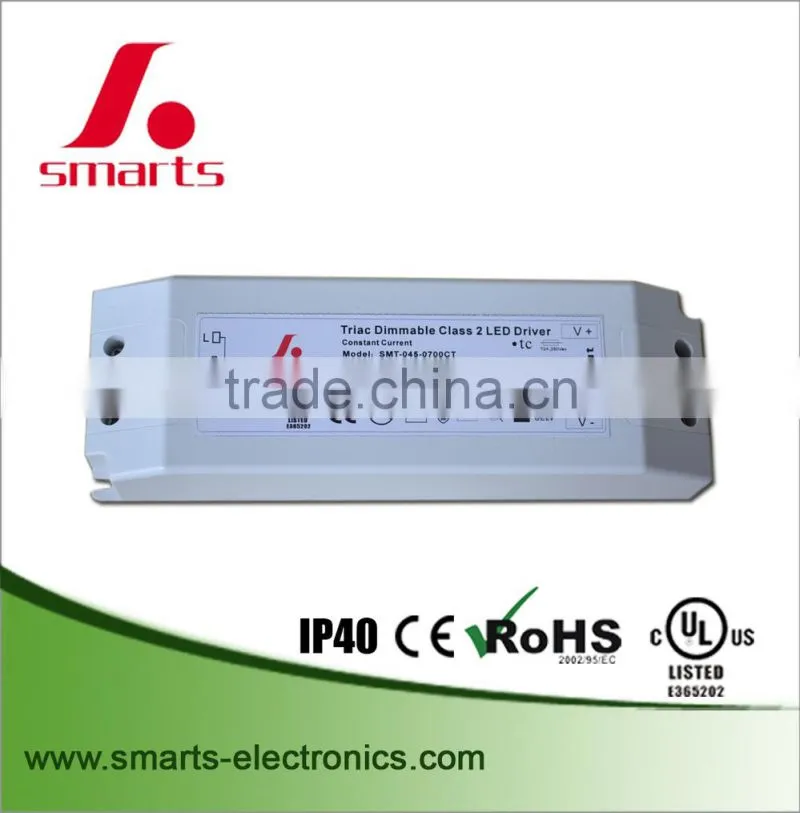

700ma constant current dimmable driver
UL listed 500mA dimmable led driver
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
Our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
FAQ:
>Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
>Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
>Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
>Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
>Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
>Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
>Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future
