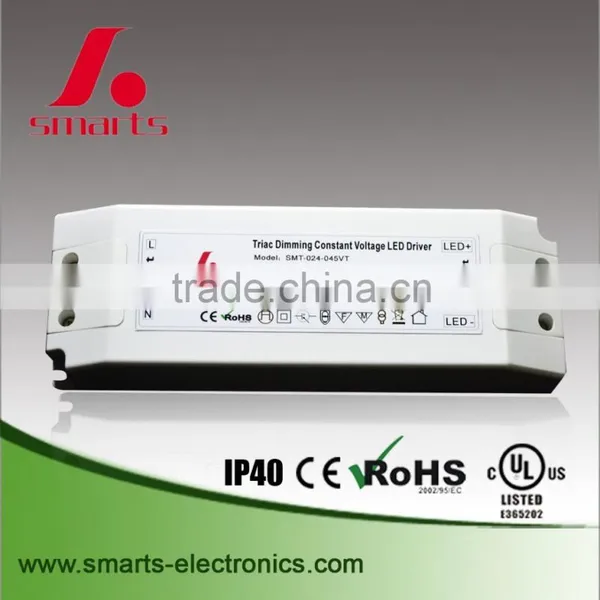

Help CenterIp20 40w 45watt 12 Volt Triac Dimmable Led Driver Class 2 Transformer Constant Voltage
Related Products
-
PF 0.9 ETL CE 80V 500ma 40w Bulb Led Driver Triac DimmableUS$ 14 - 16MOQ: 1 Piece -
Intertek Ip67 Water Proof Led Driver 12v DimmableUS$ 34 - 36MOQ: 1 Piece
-
ETL FCC Listed 24W Led Driver, Constant Voltage Dimmable Led Driver 12V 2AUS$ 1 - 17MOQ: 1 Piece
-
12v Intertek Led Drivers Dimmable Waterproof With IP67 Metal Case Led Driver 96wUS$ 25 - 30MOQ: 1 Piece
-
12v 45w Constant Voltage Triac Dimmable Led DriverUS$ 12 - 16.5MOQ: 1 Piece
intertek ETL 12v 24v 45w dimmable led driver
model | SMT-012-045VT | SMT-024-045VT | |
Output | DC Voltage | 12V | 24V |
Voltage Accuracy | ±0.5V | ±0.5V | |
Rated current | 3.75A | 1.87A | |
Rated power | 45W | 45W | |
Input | Voltage Range | 90-135VAC/170~265VAC | |
Frequency Range | 47~63HZ | ||
Power Factor ( Typ.) | PF>0.94/120V,PF>0.95/220V, PF>0.93/265V | ||
Full Load Efficiency(Typ.) | >84% | >84% | |
AC Current(Typ.) | 0.34A/120VAC 0.27A/220VAC 0.24A/265VAC | ||
Leakage current | <0.25mA/120V/230VAC | ||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over voltage | <140VAC(90~135V) , <270VAC(170~265V) | ||
Environment | Working TEMP. | -40~+60℃ | |
Working Humidity | 20~90%RH,non-condensing | ||
Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
efficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
Safety&EMC | Safety standards | EN-60950-1. EN-61347-1/-2/-13 | |
Withstand voltage | I/P-O/P:3.75KVAC | ||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
EMC EMISSION | Compliance toEN55015,EN61000-3-2 (>50%load) | ||
EMC IMMUNITY | Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level (surge4KV) | ||
Others | Weight | 0.32Kg | |
Size | 180*60*34mm(L*W*H) | ||
packing | 309*279*176mm | ||
Notes | 1. All parameters NOT specially mentioned are measured at 120VAC,220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3.Tolerance:includes set us tolerance,line regulation and load regulation . | ||
45W triac dimmable constant voltage LED driver Mechanical Specification
- Input Brown with AC (L),Blue with AC(N)
- Output Red is(DIM+),Black is(DIM-)
- Note: Any other requests we can customized.
Dimming Operation
- Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
- Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
Connecting Diagram

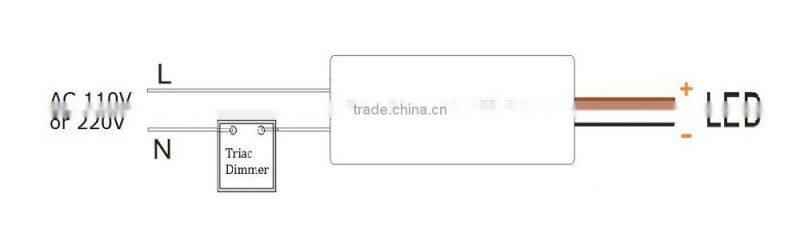

Simple Connection Diagram
We can supply you ETL approved Junction boxes for all kinds of the LED drivers.
| intertek ETL 12v 24v 45w dimmable led driver | |||
| Net weight (g) | Gross Weight/ctn | Qty/ctn | Carton size(mm) |
| 320 g | 8 kg | 20 pcs | 309*279*176mm |
| |
|
What kind of LED Driver/Power Supply We do??
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
Triac CC&CV Dimmable Series
| 0-10V CC&CV Dimmable Series
| DALI CC&CV Dimmable Series
|
Constant Voltage Series
| Enclosue Power Supply
| Constant Current Series
|
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 3 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
our market
Our major markets are in EU & North America,it takes about 70% markets share. view transaction history
factory & equipments view:
Our service
- We are UL/cUL audited LED drivers/power supplies enterprise in China.
- Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience. it will guarantee your order 100% safe.
- Price is negotiable if you have large quantity demand.
- 100% QC inspection Before Shipping.
- Best Quality & Best Service with Competitive price.
- Shipping will be the most economical for you and freight cost is informed in advance for your consideration. decision for the shipping terms will be made according to your requirements.
- Samples will be ready within 7 working days.
- We have our engineer team, if you have any question about your LED applications, let us know freely,we will give you the best solution.
- Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
- OEM design & OEM packing welcom.
- Samples will be ready within 7 working days.
FAQ
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future!
