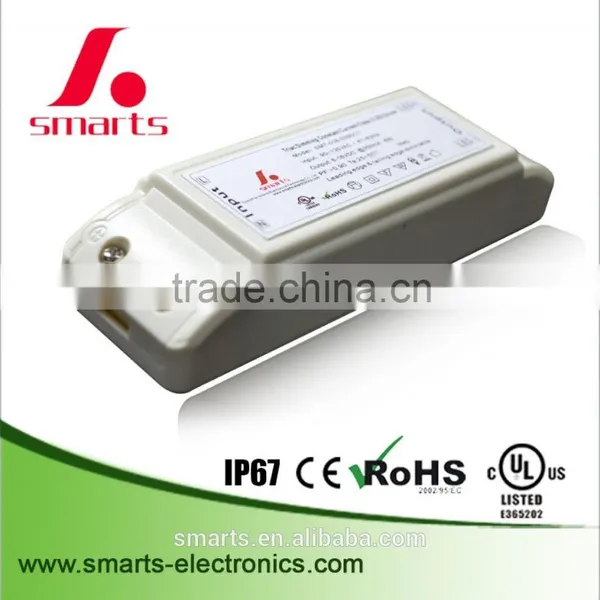

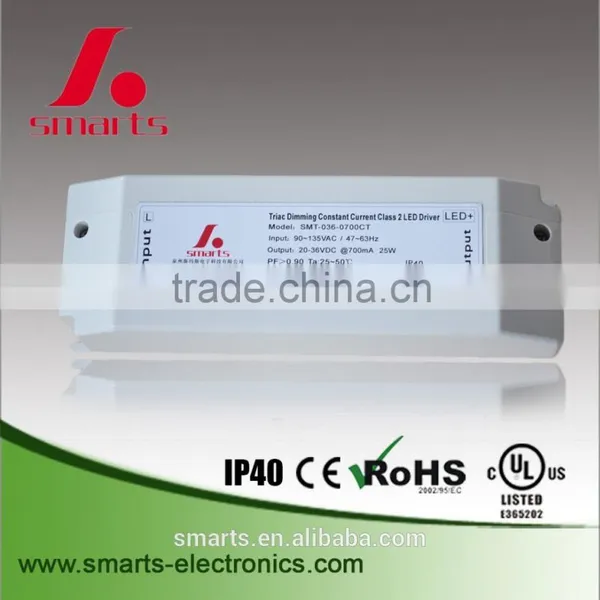

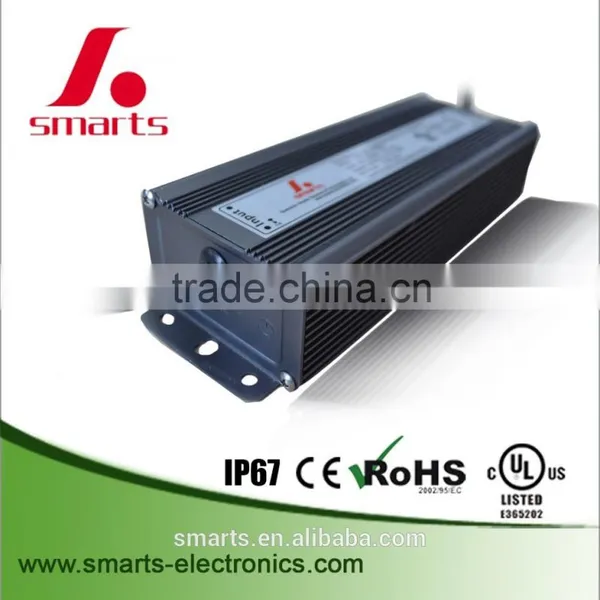

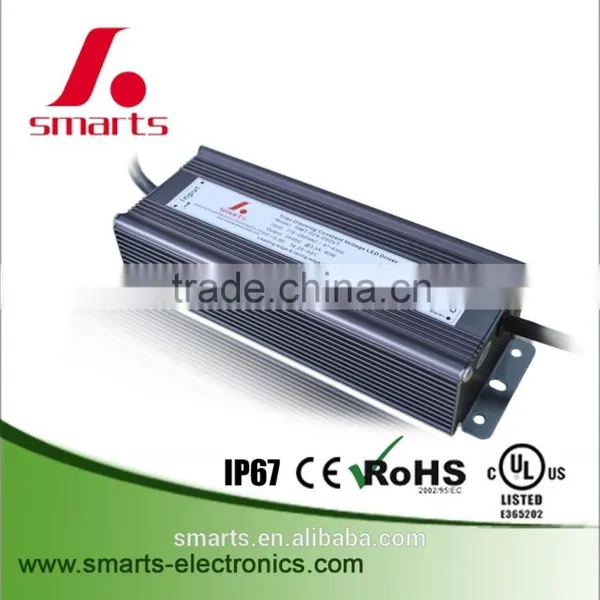

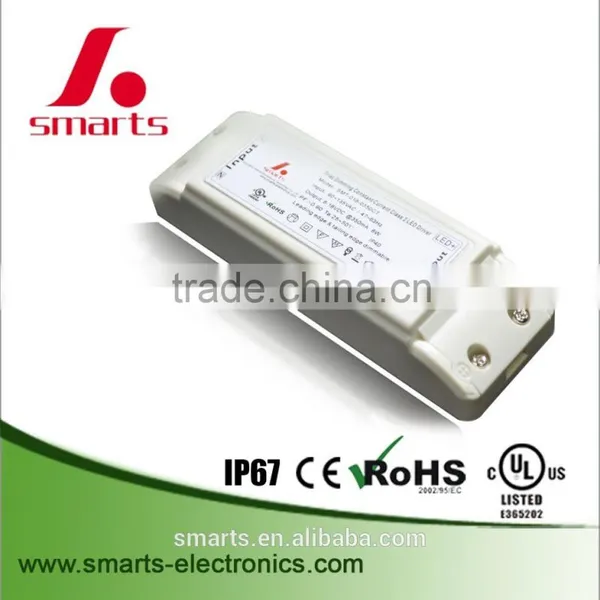

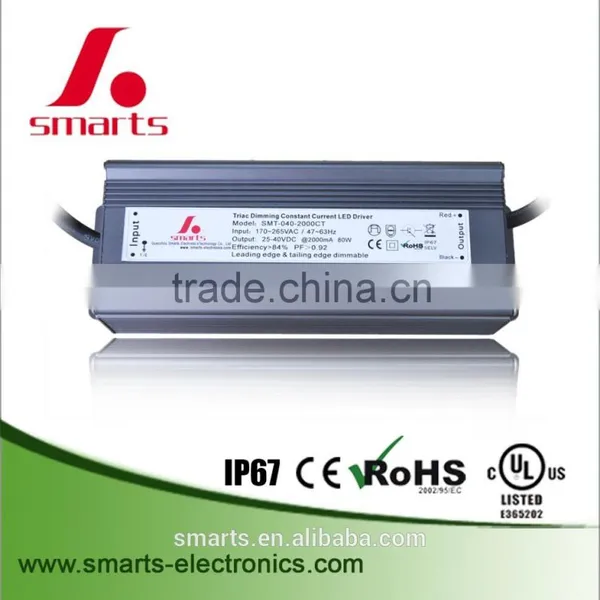

Uul listed 2000mA triac led downlight dimmable driver
Model | Input voltage(AC V) | Working Frequency | Output voltage | Output Current | Output power (DC W) | Working Temp. | Protection grade |
SMT-115-0700CT | 90-135V/ | 47~63HZ | 80~115V | 0-700mA | 80W | -25~50°C | IP67 |
SMT-090-0900CT | 90-135V/ | 47~63HZ | 70-90V | 0-900mA | 80W | -25~50°C | IP67 |
SMT-080-1050CT | 90-135V/ | 47~63HZ | 55-80V | 0-1050mA | 80W | -25~50°C | IP67 |
SMT-067-1200CT | 90-135V/ | 47~63HZ | 40-67V | 0-1200mA | 80W | -25~50°C | IP67 |
SMT-058-1400CT | 90-135V/ | 47~63HZ | 40-58V | 0-1400mA | 80W | -25~50°C | IP67 |
SMT-040-2000CT | 90-135V/ | 47~63HZ | 25-40V | 0-2000mA | 80W | -25~50°C | IP67 |
SMT-034-2400CT | 90-135V/ | 47~63HZ | 15-34V | 0-2400mA | 80W | -25~50°C | IP67 |
Specifications:
- Dimming mode: traic dimmable
- working mode:constant current type
- Full Load Efficiency (Typ.): >85%
- AC Current(Typ.): 0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
- Leakage current: < 0.27mA/110VAC; < 0.25mA/220VAC
- Case material:aluminium housing
- Waterproof rate: IP67
- unit weight: 1kg
- product size: 200*68*45 mm
- CE, UL&CUL, ROHS approval
- 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features:
- High efficiency,save energy ,protected environment
- Output constant current
- Input range :90-135VAC / 170-265VAC
- Built-in PFC function,PF >0.9
- Efficiency > 85%
- Protections:Short circuit/over Voltage
- Fully isolated plastic case
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Meet to safety standard and EMC.
- 100% full load burn-in test.
- Brand electrotronic components.
- ROHS material.
Environment :
- Working Temperature : -25 ~ +50°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

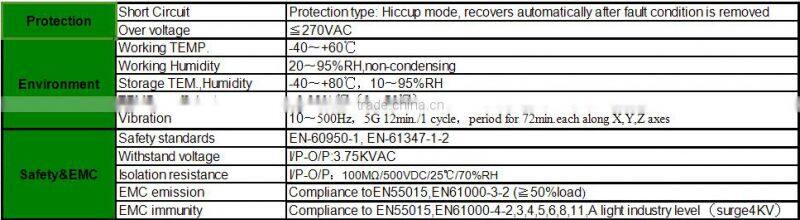

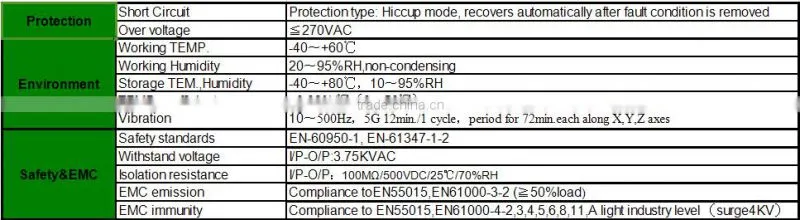

Safety :
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
We can supply you ETL approved Junction boxes for all kinds of the LED drivers.
| N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
| ul listed 2000mA triac led downlight dimmable driver | |||||||
| 1Kg/pcs | 12kg/ctn | 10pcs | 324*298*176mm | ||||
| |
|
What kind of LED Driver/Power Supply We do??
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
Triac CC&CV Dimmable Series
| 0-10V CC&CV Dimmable Series
| DALI CC&CV Dimmable Series
|
Constant Voltage Series
| Enclosue Power Supply
| Constant Current Series
|
What kind of power cords we can help you fix in our LED Driver/Power Supply??
Answer: We can help you fix / find all kinds of power cords to our drivers as per your request, for example:
Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.
We have 7 kinds of led drivers or led power supply:
1.Constant Voltage LED Driver;
2.Constant Current LED Driver;
3.Triac CC&CV Dimmable LED Driver
4.0-10v CC&CV Dimmable LED Driver
5.DALI CC&CV Dimmable LED Driver
6.Power Adapter
7.Switching Power Supply
All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
our sales team:
factory & equipments view:
certifications:
CE, UL/CUL, ROHS approval.
What Service we can supply??
- All inquiries will be replied within 24 hours
- Professional manufacturer,welcom to visit our website
- OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; - After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
