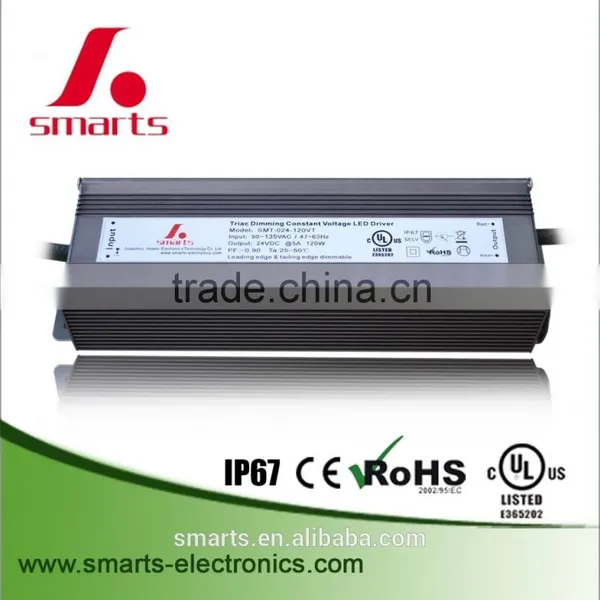

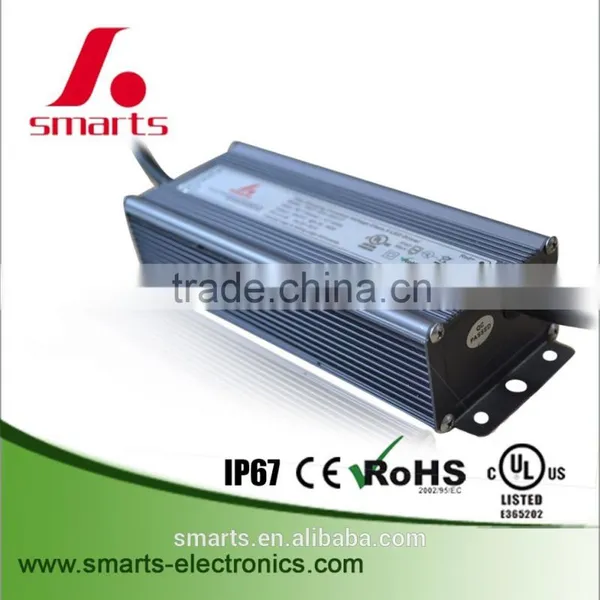

120W Single Output Constant Voltage Triac Dimmable LED Driver 12V 24V
model |
SMT-012-120VT |
SMT-024-120VT |
SMT-036-120VT |
SMT-048-120VT |
||||
Output |
DC Voltage |
12V |
24V |
36V |
48V |
|||
Voltage Accuracy |
±0.5V |
±0.5V |
±0.5V |
±0.5V |
||||
Rated current |
10.00A |
5.00A |
3.33A |
2.50A |
||||
Rated power |
120W |
|||||||
Input |
Voltage Range |
90~135V AC/170~265V AC |
||||||
Frequency Range |
47~63HZ |
|||||||
Power Factor ( Typ.) |
PF>0.92/110V,PF>0.93/170V,PF>0.95/220V,PF>0.95/265V |
|||||||
Full Load Efficiency(Typ.) |
>85% |
>85% |
>85% |
>85% |
||||
AC Current(Typ.) |
0.66A/110VAC 0.63A/170VAC 0.57A/220VAC 0.52A/265VAC |
|||||||
Leakage current |
<0.27mA/110V/220VAC |
|||||||
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
||||||
Over voltage |
<140VAC(90~135V) , <270VAC(170~265V) |
|||||||
Environment |
Working TEMP. |
-40~+60℃ |
||||||
Working Humidity |
20~90%RH,non-condensing |
|||||||
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
|||||||
efficient |
±0.03%/℃(0~50℃) |
|||||||
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|||||||
Safety&EMC |
Safety standards |
EN-60950-1, EN61347-1 EN61347-2-13 |
||||||
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|||||||
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||||||
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (>50%load) |
|||||||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV) |
|||||||
Others |
Weight |
1.3Kg |
||||||
Size |
230*70*46mm(L*W*H) |
|||||||
packing |
329*279*176mm , 10PCS/ctn |
|||||||
Notes |
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
|||||||
Features:
- Input voltage range 90-135VAC/170-250VAC
- Built-in PFC function, PF> 0.92
- Efficiency > 87%
- Protections:short circuit/over voltage/over heat
- IP67 design for indoor or outdoor installations
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lightings.
- 3 years warranty
Dimming Operation
- Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
- Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmers, which have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
Derating Curve
- Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
Simple Connection Diagram
Connecting Diagram
| |
|
We can supply you ETL approved Junction boxes for all kinds of the LED drivers.
What kind of LED Driver/Power Supply We do??
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
|
Triac CC&CV Dimmable Series
|
0-10V CC&CV Dimmable Series
|
DALI CC&CV Dimmable Series
|
Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.
We have 7 kinds of led drivers or led power supply:
1.Constant Voltage LED Driver;
2.Constant Current LED Driver;
3.Triac CC&CV Dimmable LED Driver
4.0-10v CC&CV Dimmable LED Driver
5.DALI CC&CV Dimmable LED Driver
6.Power Adapter
7.Switching Power Supply
All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
our sales team:
factory & equipments view:
certifications:
CE, UL/CUL, ROHS approval.
What Service we can supply??
-
All inquiries will be replied within 24 hours
-
Professional manufacturer,welcom to visit our website
- OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; - After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
Frequently Asked Questions
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Q10.How to contact with me??
A9: Skype: sales5smt
Tel.:+86 (595) 2286 3721
***Any questions,Just feel free to click "send" to contact with me.^-^***
