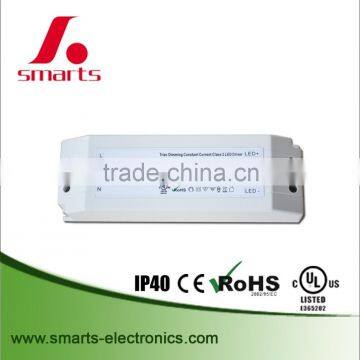

45W constant current 500ma triac dimmable led driver
Description:
- AC-DC Triac Dimmable LED Driver
- working mode: constant current
- constant:60-90Vdc, / power: 45Watt
- I/P:90~135V/ 170~265V, 47-63Hz
- Ambient temp.: 20 degree~40 degree @ full load
- Efficiency > 85%
- size: 180*60*34 mm
- waterproof rate: IP40
- packing: 50pcs/ctn, overload,over heat, over voltage, short circuit protection
- 3 years warranty
- CE, UL, ROHS approval
Environment parameter:
- Working temperature:-40 -80°C
- Store temperature:-40 -85°C
- Working humidity:10-90%
- Lifespan:(MTBF)50,000 hours
- Case machine specifications
- Case: plastic case
Product Features:
1.Universal AC input (90-135V/170-265V) / Full range
2.Protections: Short circuit/Overload/Over voltage/Over temp.
3.Built-in active PFC function
4.PF>0.92 for 86% of load or higher
ing standard: Ul1310 Class 2 power unit
6.Cooling by nature
7.Suitable for dry location
8.Suitable for LED lighting and moving sign applications
9.Follow the global lighting safety regulations
Safety :
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Product parameters:
Model | Input voltage (vAC) | Working Frequency (Hz) | Output voltage (vDC) | Output Current (A) | Output power (W) | Protection grade |
SMT-060-0320CT | 90-135V/ 170-265V | 47~63Hz | 35-48vDC | 320mA | 15W | IP40 |
SMT-030-0350CT | 90-135V/ 170-265V | 47~63Hz | 15-30vDC | 350mA | 10W | IP40 |
SMT-050-0350CT | 90-135V/ 170-265V | 47~63Hz | 30-50vDC | 350mA | 15W | IP40 |
SMT-060-0350CT | 90-135V/ 170-265V | 47~63Hz | 40-60vDC | 350mA | 20W | I40 |
SMT-020-0500CT | 90-135V/ 170-265V | 47~63Hz | 10-20vDC | 500mA | 10W | IP40 |
SMT-030-0500CT | 90-135V/ 170-265V | 47~63Hz | 15-30vDC | 500mA | 15W | IP40 |
SMT-070-0500CT | 90-135V/ 170-265V | 47~63Hz | 50-70vDC | 500mA | 35W | IP40 |
SMT-090-0500CT | 90-135V/ 170-265V | 47~63Hz | 60-90VDC | 500mA | 45W | IP40 |
Application:
Our products are widely used in various industries, such as
- Outdoor LED illuminating lights,
- LED Neon,
- LED City Decoration,
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights,
- Controller Panels, etc.
Triac dimmable LED drivers connection diagram
high efficiency constant current triac dimmable led driver
ac/dc 350mA 80-100V 35w constant current led power supply
500ma 45w LED strip triac dimmable led driver
220v ac to 24v dc 350w Enclosure switching led power supply
ac/dc 12V 0.5A 6w Black plastic cover Power Adapter
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
Our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
FAQ:
>Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
>Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
>Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
>Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
>Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
>Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
>Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future
