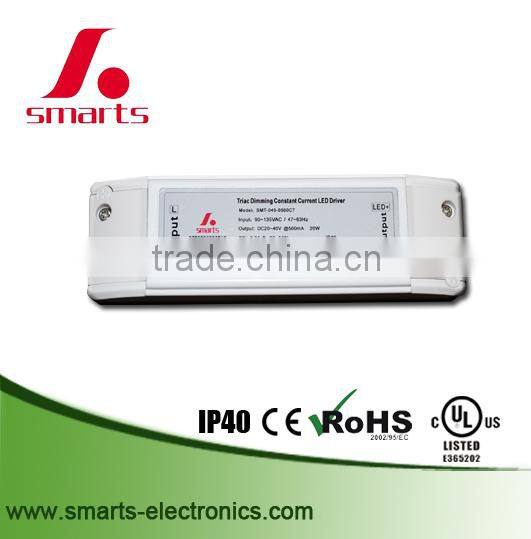

led power supply 10w 14w 19w 320ma led triac dimmable driver for led indoor light
Features:
10w 500ma constant current triac dimmable led driver
·Input range :90-135VAC / 170-265VAC
·Built-in PFC function
·Efficiency > 84% / PF>0.9
·Protections:Short circuit/over Voltage
·Fully isolated plastic case
·Easy installation
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·3 years warranty
·Lifespan:(MTBF)50,000 hours
Protection:
Short Circuit: Hiccup mode, recovers automatically after fault condition
Over voltage: <270VAC 0r =270VAC
Environment parameter:
Working temperature: -40~+60℃
Working humidity:20~90%RH,non-condensing
Storage TEM.,Humidity: -40~+80℃,10~95%RH
efficient: ±0.03%/℃(0~50℃)
Vibration: 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety &EMC:
Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
Withstand Voltage : I/P-O/P: 3000KVAC
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
EMC EMISSION: Compliance toEN55015,EN61000-3-2 (> or=50%load)
EMC IMMUNITY : Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)
Notes:
1. All parameters NOT specially mentioned are measured at 110V/ 230VAC input , rated load and25℃of ambient temperature
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pairwire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation
Product parameters:
Model | Input voltage(vAC) | Working Frequency (Hz) | Output voltage (vDC) | Output Current | power (Watt) | Working. Temp | Protection grade |
SMT-045-0320CT | 90-135V/170-265v | 47~63Hz | 20-45V | 320mA | 14W | -40~50°C | IP20 |
SMT-032-0320CT | 90-135V/170-265v | 47~63Hz | 15-32V | 320mA | 10W | -40~50°C | IP20 |
SMT-018-0350CT | 90-135V/170-265v | 47~63Hz | 8-18V | 350mA | 6W | -40~50°C | IP20 |
SMT-030-0350CT | 90-135V/170-265v | 47~63Hz | 15-30V | 350mA | 10W | -40~50°C | IP20 |
| SMT-020-0500CT | 90-135V/170-265v | 47~63Hz | 8-20V | 500mA | 10W | -40~50°C | IP20 |
| SMT-015-0700CT | 90-135V/170-265v | 47~63Hz | 7-15V | 700mA | 10W | -40~50°C | IP40 |
| SMT-035-0350CT | 90-135V/170-265v | 47~63Hz | 20-35V | 350mA | 12W | -40~50°C | IP40 |

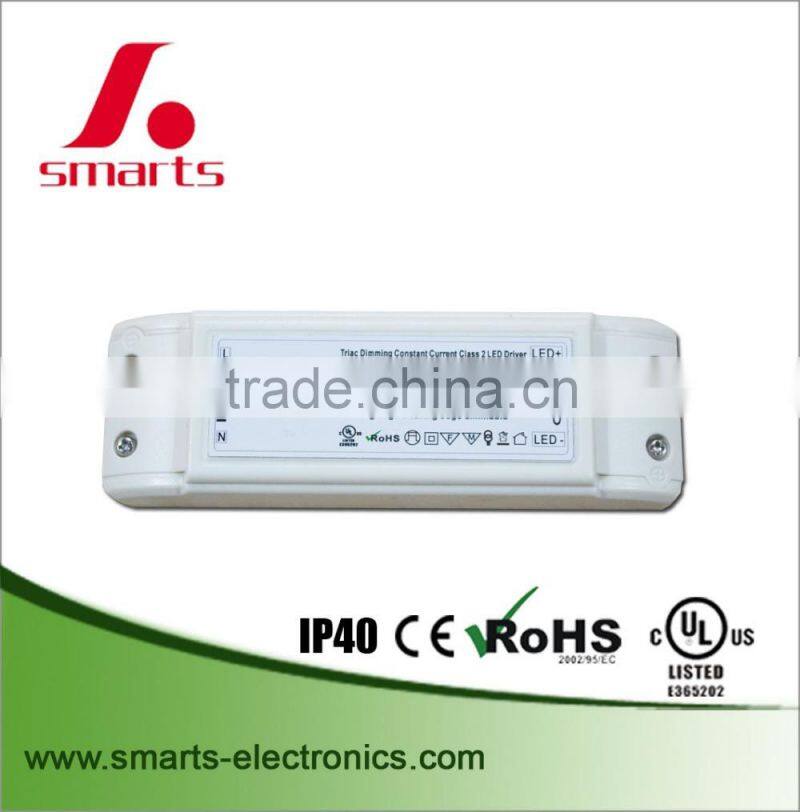

led power supply 10w 14w 19w 320ma led triac dimmable driver for led indoor light
500mA single output constant current triac dimmable power supply
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 2 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
Our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
why choose us??
1. We are UL/cUL audited LED drivers/power supplies enterprise in China.
2. Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience.
it will guarantee your order 100% safe.
3. Price is negotiable if you have large quantity demand
4. 100% QC inspection Before Shipping
5. Best Quality & Best Service with Competitive price.
6. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.
decision for the shipping terms will be made according to your requirements
7. Samples will be ready within 7 working days.
8. We have our engineer team, if you have any question about your LED applications, let us know freely,
we will give you the best solution.
9. Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
10. OEM design & OEM packing welcom.
11. Samples will be ready within 7 working days.
FAQ:
>Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
>Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
>Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
>Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
>Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
>Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
>Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future
