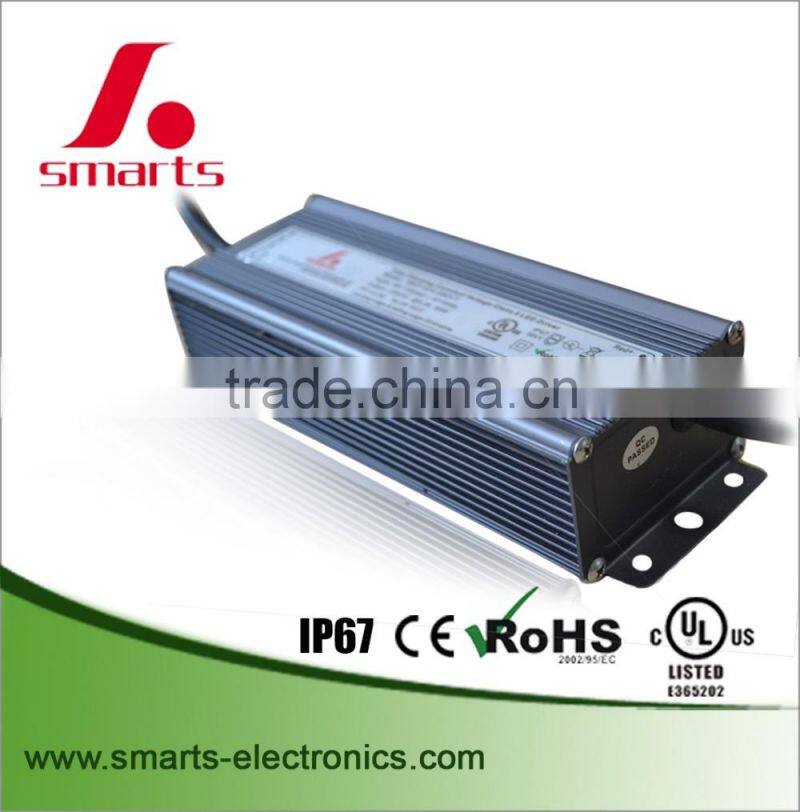

80w 24v dc power supply triac dimmable constant voltage led driver with 3 year warranty
Description:
- AC-DC Triac Dimming LED transformer
- Dimming mode: triac dimmable 12V DC,24 V DC
- working mode: constant voltage
- constant:12Vdc, 24Vdc / power: 80Watt
- I/P:90~135V/ 170~265V, 47-63Hz
- Ambient temp.: 20 degree~40 degree @ full load
- Efficiency > 85% PF>0.95
- size: 200*68*45
- waterproof rate: IP67
- packing: 50pcs/ctn, overload,over heat, over voltage, short circuit protection
- 3 years warranty
- CE, UL, ROHS approval
Features:
- Case material: plastic case
- Cooling by free air convection
- 100% full load burn-in test
- High reliability
- Universal AC input (90~135VAC, 170~ 265VAC)
- designing standard: Ul1310 Class 2 power unit
- Cooling by nature
- Suitable for dry location
- Follow the global lighting safety regulations
Safety:
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Environment:
- Working temperature:-40 -80°C
- Store temperature:-40 -85°C
- Working humidity:10-90%
- Lifespan:(MTBF)50,000 hours
- Case machine specifications
Product parameters:
Item No. | Input voltage (vAC) | Working Frequency | Output voltage | Output Current | power(Watt) | Working Temp. | IP rate |
SMT-024-08OVT | 90-135vAC 170-265vAC | 47~63Hz | 24V | 3.3A | 80W | -25~50°C | IP67 |
SMT-024-012VT | 90-135vAC 170-265vAC | 47~63Hz | 24V | 0.5A | 12W | -25~50°C | IP40 |
SMT-024-020VT | 90-135vAC 170-265vAC | 47~63Hz | 24v | 0.83A | 20W | -25~50°C | IP40 |
| SMT-024-030VT | 90-135vAC 170-265vAC | 47~63Hz | 24V | 1.25A | 30W | -25~50°C | IP40 |
| SMT-024-045VT | 90-135vAC 170-265vAC | 47~63Hz | 24V | 1.86A | 45W | -25~50°C | IP40 |
