Home > Products > Triac dimmable LED driver > Triac dimmable led driver 12V 120W 150w PWM output led light driver

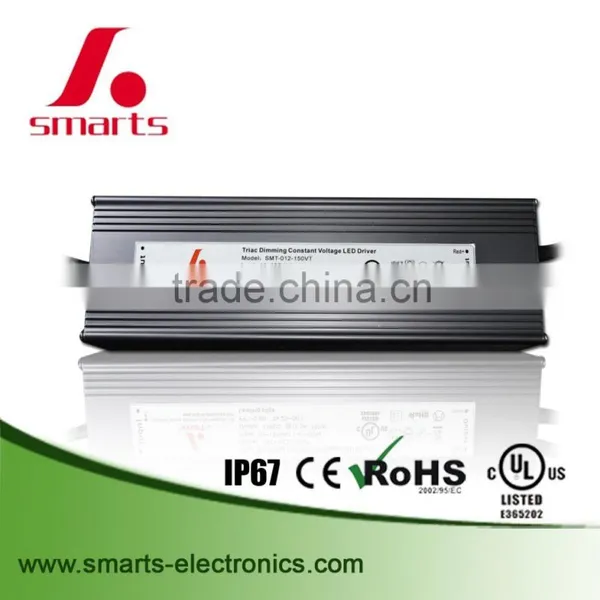

Triac dimmable led driver 12V 120W 150w PWM output led light driver
- 30000 Piece / Pieces per Month
- xiamen
- T/T L/C D/P D/A Credit Card PayPal
- Brand new power box 640C0022G01 York control system motherboard power supply GLC75D-CVG
- Power Supplies TVD1.3-15-03 Original Stock
- 10W 2.5KV Isolation Wide Input AC/DC Converters
- 30W Wide Voltage Input DC/DC Converters power supply
- Bently Nevada 3500/15
- 48V 3000W Telecom Power Supply Emerson R48-3000E3 Rectifier Module
Product Details
Place of Origin: | Fujian, China | Brand Name: | SMARTS | Model Number: | SMT-012-150VT |
Output Power: | Other, 150w | Output Type: | Single | Input Voltage: | Other, 90~135Vac/170~265Vac |
Output Voltage: | 12Vdc | Output Frequency: | 47-63Hz | Output Current: | 12.5A |
Product Description
Triac dimmable led driver 12V 120W 150w PWM output led light driver
SPECIFICAION | |||||
MODEL | SMT-012-150VT | SMT-024-150VT | SMT-036-150VT | SMT--048-150VT | |
OUTPUT | DC VOLTAGE | 12V | 24V | 36V | 48V |
RATED CURRENT | 12.5A | 6.25A | 4.16A | 3.1A | |
RATED POWER | 120W | ||||
VOLTAGE TOLERANCE | ±0.5V | ||||
INPUT | VOLTAGE RANGE | 100-135VAC / 170~265VAC | |||
FREQUENCY RANGE | 50~60Hz | ||||
POWER FACTOR(Typ.) | >0.75/110VAC, >0.8/220V | ||||
EFFICIENCY(Typ.) | >85% | >86% | >86% | >87% | |
AC CURRENT(Typ.) | 1.34A | 1.32A | 1.32A | 1.31A | |
Leakage current | <0.6mA/110VAC, <0.70mA/220VAC | ||||
PROTECTION | Short circuit | Hiccup mode, recovers automatically after fault condition is removed. | |||
Overload | ≤120% | ||||
Over Current | ≤1.4*I out | ||||
ENVIRONMENT | WORKING TEMP. | -40~+60℃ | |||
WORKING HUMIDITY | 20~90%RH,non-condensing | ||||
efficient | ±0.03%/℃(0~50℃) | ||||
Vibration | 10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||||
STORAGE TEMP., HUMIDITY | -40~+80℃,10~95%RH | ||||
SAFETY&EMC | SAFETY STANDARDS | EN61347-1 EN61347-2-13 | |||
WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||||
EMC EMISSION | Compliance to EN55015,EN61000-3-2 (>50%load) | ||||
EMC IMMUNITY | EN61000-4-2,3,4,5,6,11(Surge about 4KV) | ||||
Others | Weight | 1.8Kg | |||
Size | 226.5*77.5*47mm(L*W*H) | ||||
packing | 440*295*145mm , 8 pcs/ctn | ||||
Notes | 1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC input , rated load and 25℃of ambient temperature. 2..Tolerance:includes set us tolerance,line regulation and load regulation . |
- Output constant voltage type
- Universal AC input/ :90~135VAC, 170-265VA
- High efficiency > 87%
- Protections:short circuit/over loading/over current
- Full protection aluminum housing/ IP67
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge triac dimmer
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for LEDs.

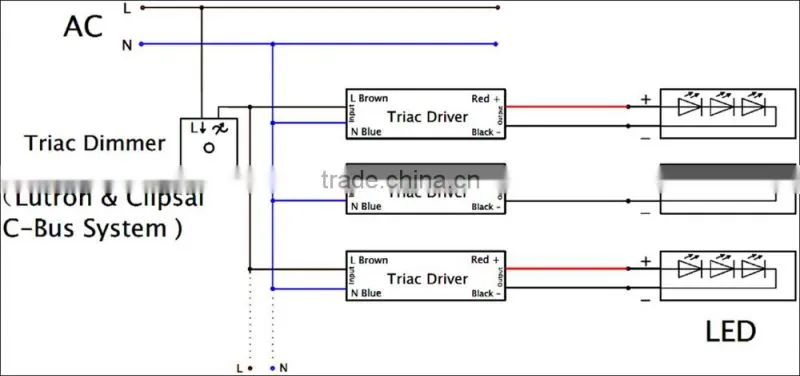

- Output power level can be adjusted through input terminal of the AC phase line(L) by connecting a triac
dimmer. - Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer in order to access to a wider dimming range because
- high-power dimmer is difficult to achieve the output current to zero
We can supply you ETL approved Junction boxes for all kinds of the LED drivers.
N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
Triac dimmable led driver 12V 120W 150w PWM output led light driver | |||||||
1.5kg/pcs | 17kg/ctn | 10pcs | 329**279*176mm |
|
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 3 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
our market
Our major markets are in EU & North America,it takes about 70% markets share. view transaction history
factory & equipments view:
Our service
- We are UL/cUL audited LED drivers/power supplies enterprise in China.
- Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience. it will guarantee your order 100% safe.
- Price is negotiable if you have large quantity demand.
- 100% QC inspection Before Shipping.
- Best Quality & Best Service with Competitive price.
- Shipping will be the most economical for you and freight cost is informed in advance for your consideration. decision for the shipping terms will be made according to your requirements.
- Samples will be ready within 7 working days.
- We have our engineer team, if you have any question about your LED applications, let us know freely,we will give you the best solution.
- Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
- OEM design & OEM packing welcom.
- Samples will be ready within 7 working days.
FAQ
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future!
