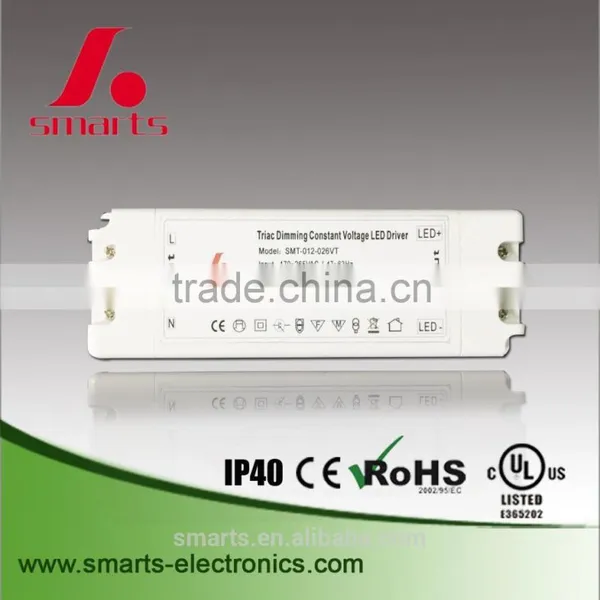

etl ul cul approved triac dimmable 12v 48w 50w led driver
Model |
SMT-012-048VT |
SMT-024-048VT |
|
Certificates |
ETL,CETL,CE,ROHS |
ETL,CETL,CE,ROHS |
|
output |
DC Voltage |
12V |
24V |
Voltage Tolerance |
±0.5V |
||
Rated current |
4.00A 1.25A |
2.00A |
|
Rated power |
48W |
||
input |
Voltage Range |
100~130VAC / 170~265VAC |
|
Frequency Range |
47~63HZ |
||
Power Factor (Typ.) |
PF≥0.65 |
||
Efficiency(Typ.) |
>83% 84% |
>84% |
|
|
AC Current(Typ.) |
0.84A @120VAC, 0.4A@220VAC 0.4A |
0.83A @120VAC, 0.39A@220VAC |
|
Leakage current |
<0.70mA/110VAC , <0.50mA/220VAC |
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed |
|
Over Current |
≤1.4*I out |
||
Over Loading |
≤120% |
||
Over temperature |
100℃±10℃ (The output voltage will turn off when the temperature is higher then100℃±10℃, after the temperature drop off ,it will recovery) automatic
|
||
Environment |
Working TEMP. |
-40~+60℃ |
|
Working Humidity |
20~90%RH, non-condensing |
||
Storage TEMP. Humidity |
-40~+80℃,10~95%RH |
||
TEMP .coefficient |
±0.03%/℃(0~50℃) |
||
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
||
|
Safety& EMC |
Safety standards |
UL8750+UL1310 |
|
Withstand voltage |
I/P-O/P:1500KVAC |
||
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
EMC EMISSION |
FCC Part 15 B |
||
others |
Net. Weight |
0.45Kg |
|
Size |
178*61*24mm(L*W*H) |
||
packing |
350*195*180mm 30PCS/CTN |
||
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC / 220VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. 3.Loading should be 5-100%. |
||
Features:
- Output constant voltage
- Universal AC input: 100-130VAC
- Power Factor> 0.65
- High efficiency> 84%
- Protection:short circuit/over loading/over current/ Over temperature
- Full protection plastic housing
- Easy installation
- Cooling by free air convection
- Compatible with Forward phase,Magnetic low voltage,Triac Dimmers
- Strong compatibility, flicker-free dimming, PWM output
- Suitable for LED lighting and moving sign applications and others
- Compliance to worldwide safety regulations for lighting
Mechanical Specification
Input (L) and (N) with wires to be connected AC.
Output LED SEC :(LED+) (LED-)
Dimming Operation
- The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
- Usually matching with leading edge Triac Dimmers( Can customized as a driver only matching trailing edge Triac Dimmers if needed).
- Please try to use dimmers with power at least 2.5 times as the output power of the driver.
- for Forward phase,Magnetic low voltage and Triac Dimmers
Warning
- Prevent to reverse polarity;
- Risk of Electric Shock. When used outdoors, install only on a circuit protected by a Class A GFCI;
- Risk of Fire. Installation involves special wiring methods to run wiring through a building structure. Consult a qualified electrician;
- Risk of Electric Shock. Mount the unit at a height greater than 1 foot from the ground surface.
Derating Curve
- To extend their life, please refer to the Derating Curve and derate according to the temperature

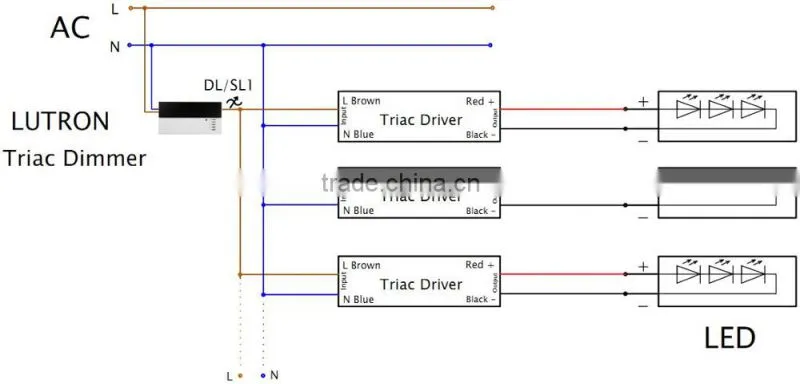

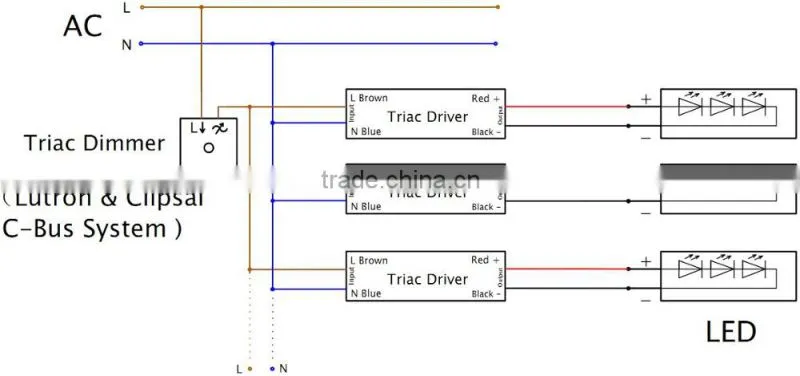

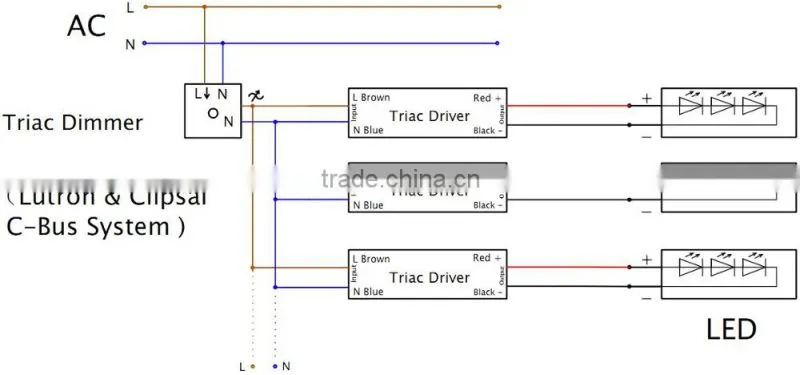

Connecting Diagram
..............................................................................................................................................................................
..............................................................................................................................................................................
12V 48W triac led dimmable driver tansfomer with Junction Box
What kind of LED Driver/Power Supply We do??

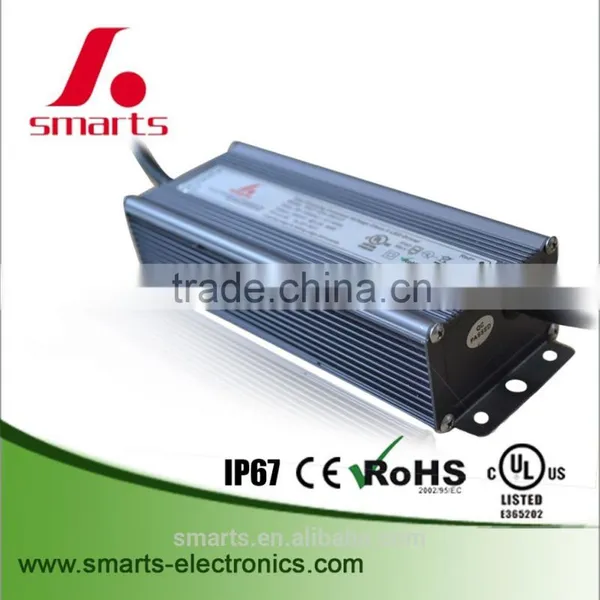

We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
|

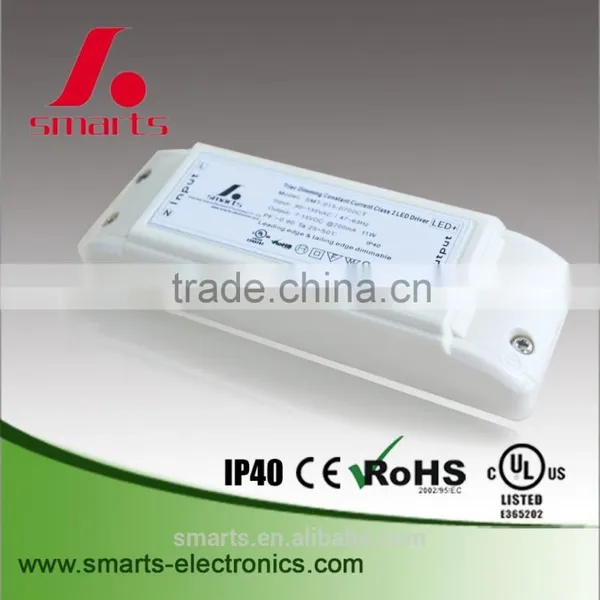

Triac CC&CV Dimmable Series
|
0-10V CC&CV Dimmable Series
|
DALI CC&CV Dimmable Series
|
| etl ul cul approved triac dimmable 12v 48w 50w led driver | |||
| Net weight (g) | Gross Weight/ctn | Qty/ctn | Carton size(mm) |
| 350 g | 10.5 kg | 30 pcs | 355*215*215mm |
| |
|
