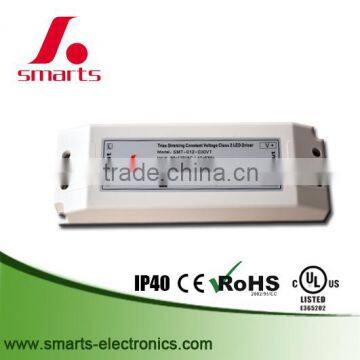

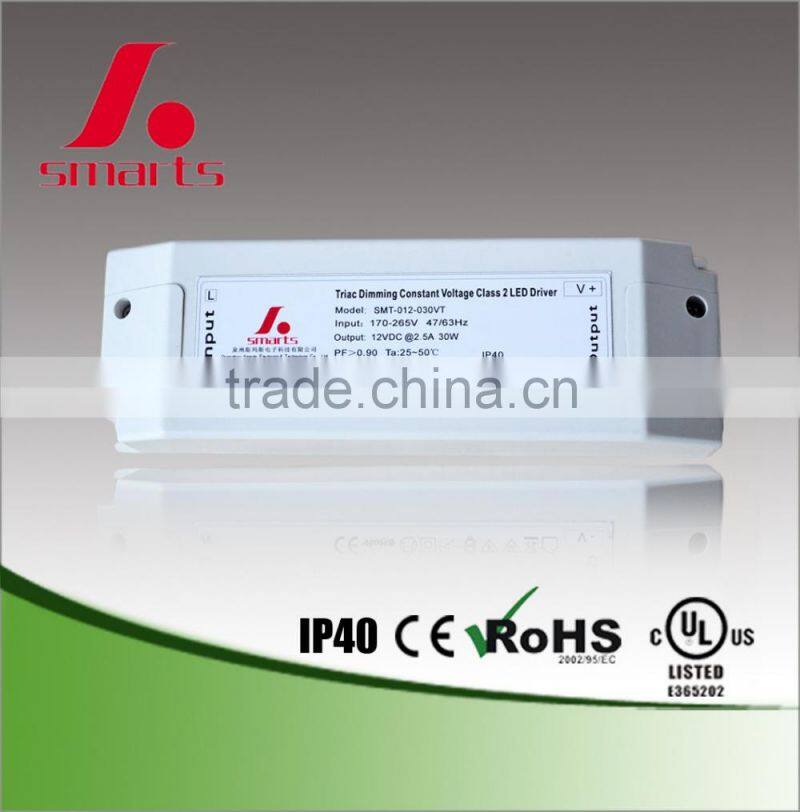

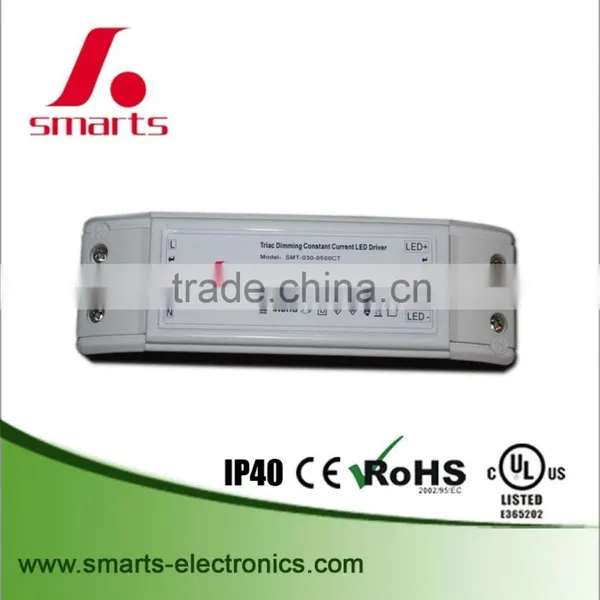

led driver UL ETL FCC listed ac dc Triac dimmable driver 36W 12V
- triac dimmable constant voltage led driver 36w
- Input range :90-135VAC / 170-265VAC
- Built-in PFC function
- Efficiency > 85%
- Protections:Short circuit/over Voltage
- Fully isolatedaluminum housing
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- CE,UL/cUL, RoHS approval
- 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Specifications
1.Dimming mode: triac dimmable
2. triac dimmable constant voltage 12vDC
3.AC-DC Triac Dimmable LED Driver
4.I/P:90-135Vac, 170-265VAC, 47-63Hz
5.Ambient temp.:-20 degree~40 degree full load
6. Efficiency> 85%
7. PFC > 0.95
8. size: 180*60*34mm
9. overload,over heat, over voltage, short circuit protection
10. CE, UL/cUL, RoHS approval
| input Channel | leading edage and tailing eadge dimmers | |||||||||||
| SMT-012-036VT | SMT-024-036VT | |||||||||||
| Single Output features | Constantvoltage | 12vDC | 24vDC | |||||||||
| output current | 3.0A |
1.5A | ||||||||||
| output power | 36watt | 36watt | ||||||||||
| Ripple & Noise | 250mV | |||||||||||
| Current Regulation | ±3% | |||||||||||
| Starting time | 1000mS/230Vac, 3000mS/110Vac | |||||||||||
| Input | Voltage range | 90Vac-135Vac, 170-265Vac | ||||||||||
| Frequency range | 47Hz-63Hz | |||||||||||
| Power factor | PF>0.90/220Vac,PF>0.91/110Vac | |||||||||||
| Efficiency | 87%/110Vac , 88%/230Vac | |||||||||||
| Inrush Current | 20A/110Vac, 40A/220Vac | |||||||||||
| Leakage Current | <1mA/240Vac | |||||||||||
| Protection | short circuit | |||||||||||
| protection | ||||||||||||
| Protection mode:Single Protection,Hiccup ,recovery after the fault removed. | ||||||||||||
| Protection mode:Limit highest voltage, recovery after the fault removed. | ||||||||||||
| physical size: | 180*60*34mm |
|||||||||||
| Over temperature | 105oC±5 oC ( Internal radiator's temperature) | |||||||||||
| Protection mode:Closed Output voltage,recovery after temperature automatic recovery | ||||||||||||
Applications:
Our products are widely used in various industries, such as
indoor/outdoor LED illuminating lights,
LED Neon,
LED urban Decoration
LED Lighting Advertising,
LED Display,
Safety Protection Apparatus,
Telecommunications,
Networks,
Vehicle Lights, Controller Panels, etc.
led driver UL ETL FCC listed ac dc Triac dimmable driver 36W 12V

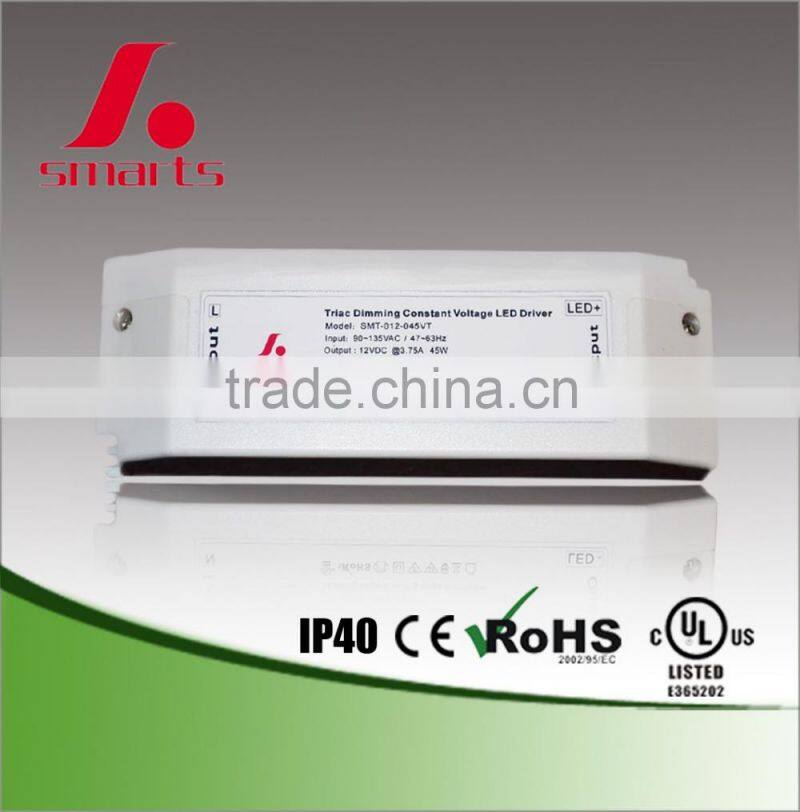

170-265vAC to 12vDC 45w triac dimmable led driver
constant voltage 45w triac dimmable led driver

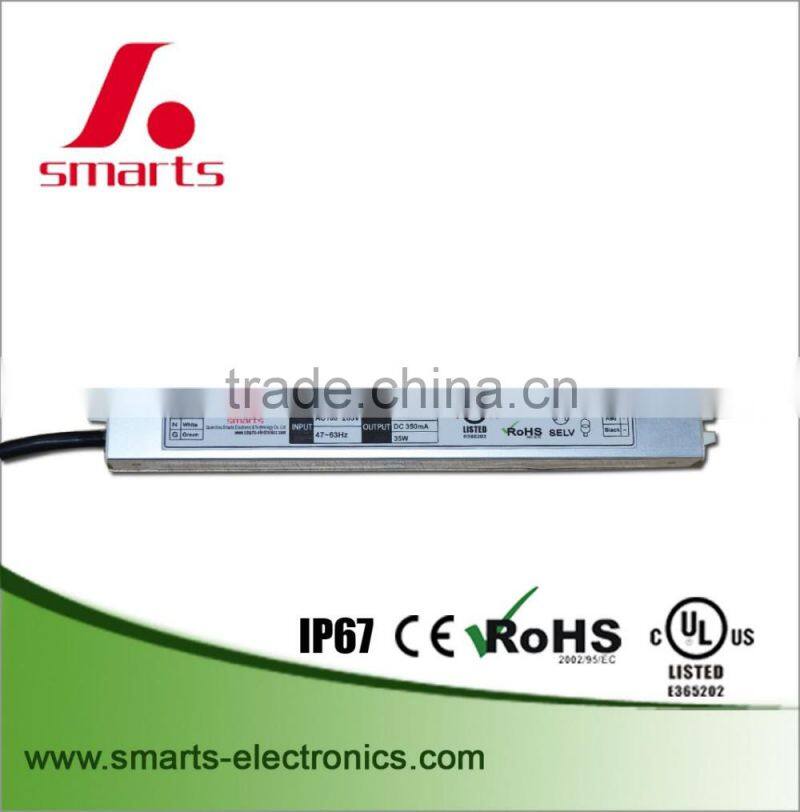

ac/dc 350mA 80-100V 35w constant current led power supply

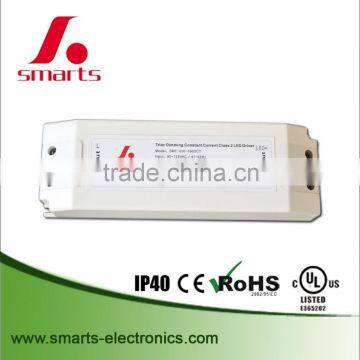

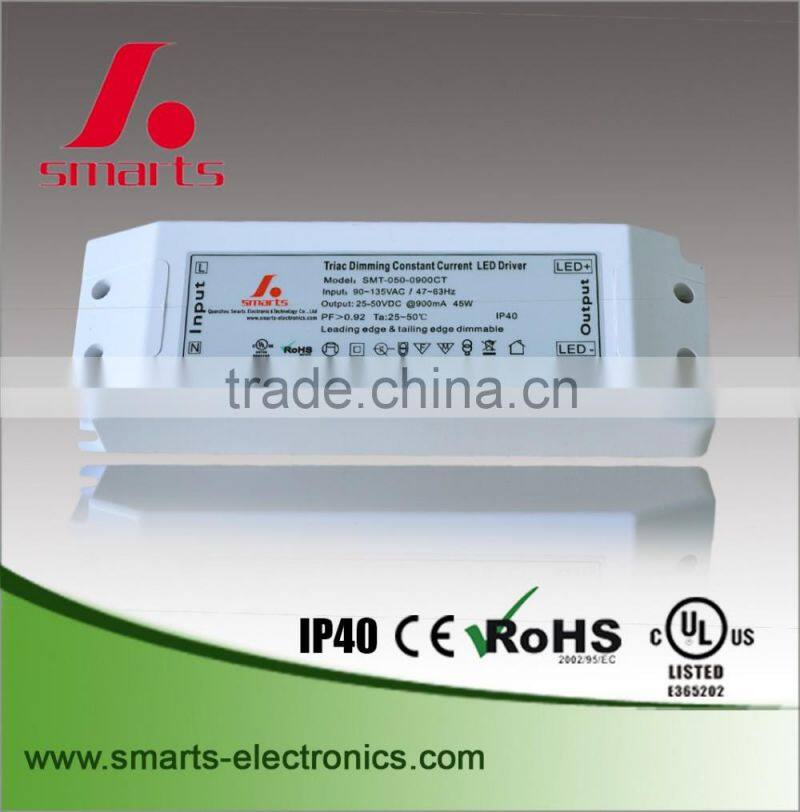

500ma 45w LED strip triac dimmable led driver

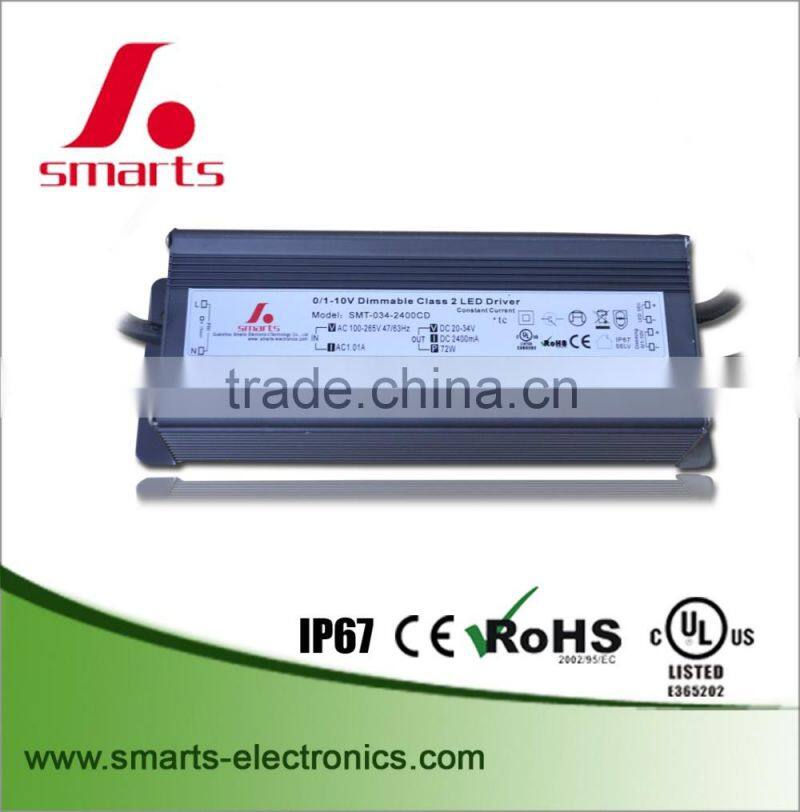

2000ma 100w 0-10v dimmable led power supply

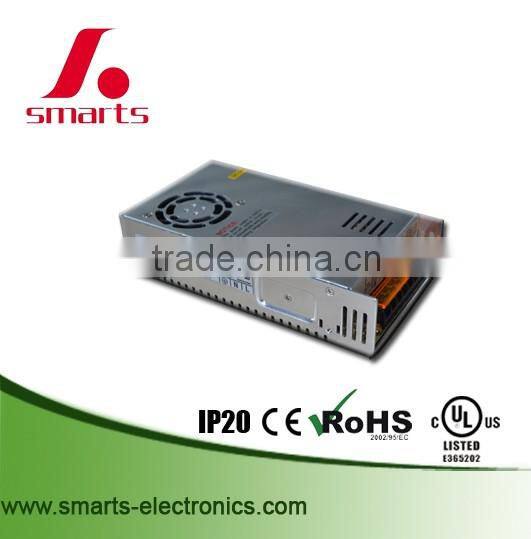

220v ac to 24v dc 350w Enclosure switching led power supply

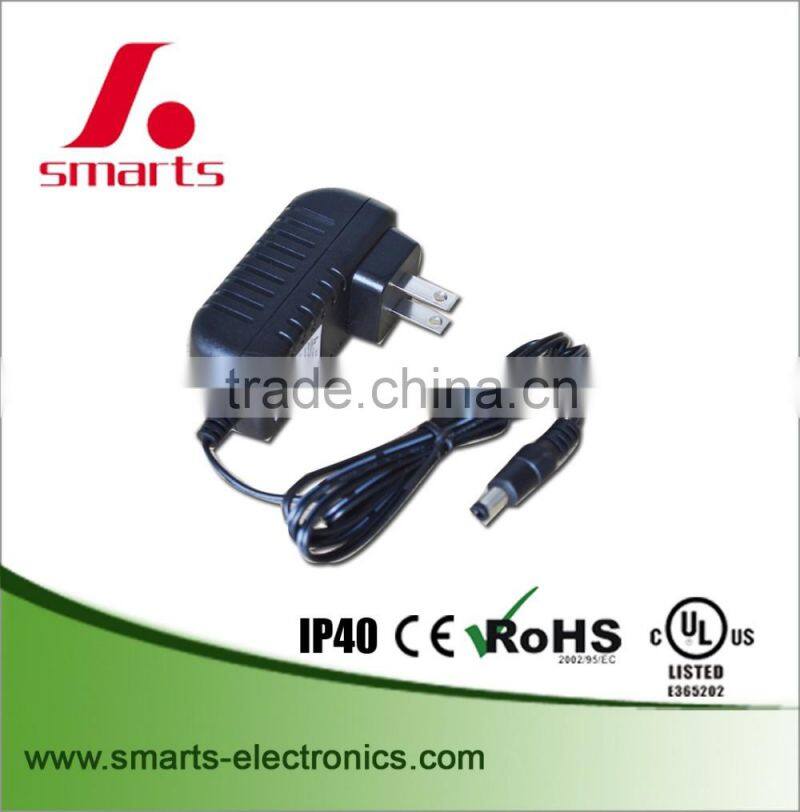

ac/dc 12V 0.5A 6w Black plastic cover Power Adapter
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail website:
our team:

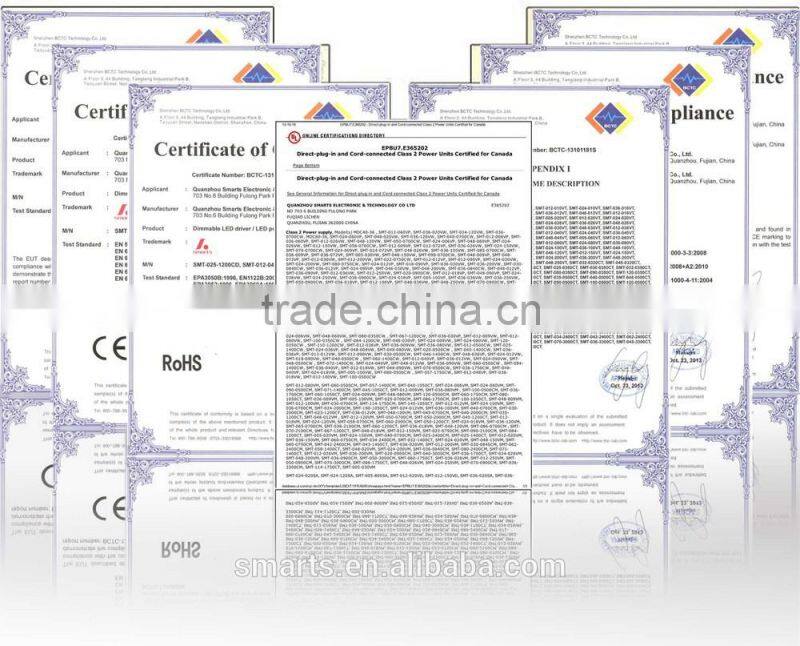

certifications:
CE, UL/CUL, ROHS approval.

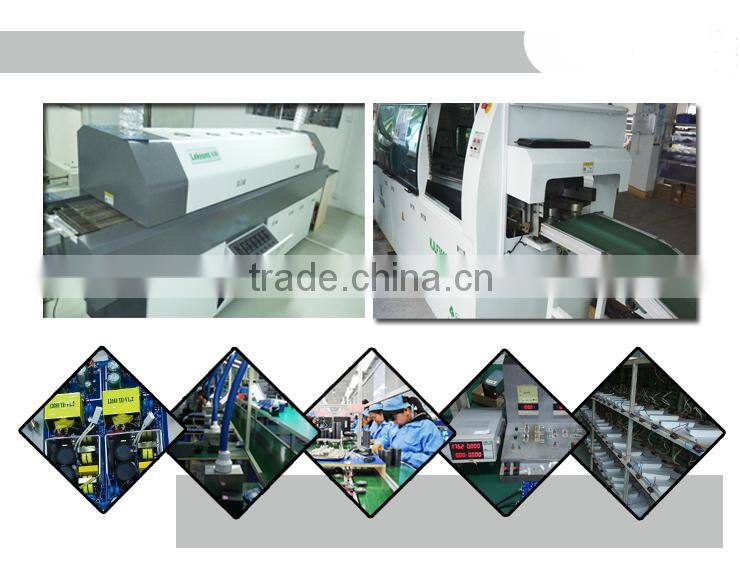

factory & equipments view:
Our market:

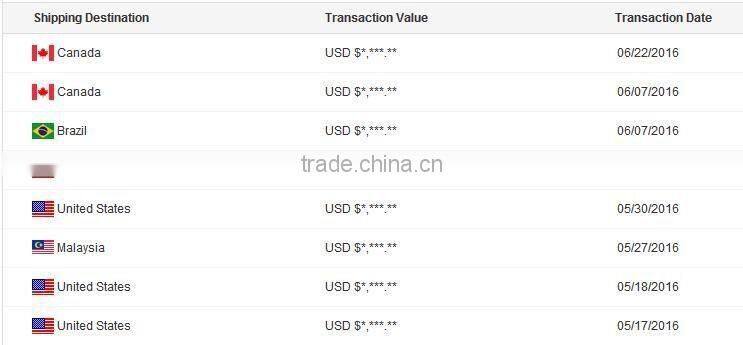

Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
