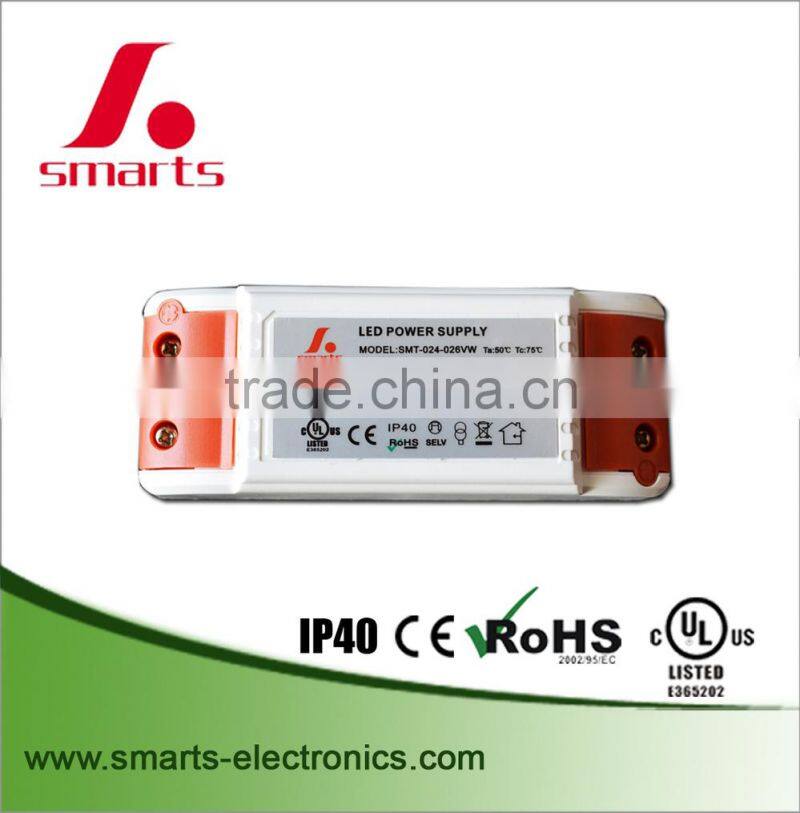

UL 110v 120v 12v 2a transformer
specifications:
- Input voltage.:100~265vAC
- Efficiency>82%
- Warranty: 2 years
- CE,UL,ROHS approval
- product size:140*45*28mm
- Net weight: 118g/pc
- Case material:plastic
- IP rate: IP20
- CE, UL&CUL, ROHS approval
Features:
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Integrity protection,over loading, over voltage ,over current.
- 100% full load burn-in test.
Environment:
1. Working Temperature : -30 ~ +60°C
2. Working Humidity : 20 ~ 90% RH non-condensing
3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
4. TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
5. Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety:
1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
2. Withstand Voltage : I/P-O/P: 3000KVAC
3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC
4. MTBF : 50Khrs min. MIL-HDBK-217F (25°C )
Product parameters:
Model |
Input voltage(AC V) |
Working Frequency |
Output voltage |
Output Current |
Output power(DC W) |
Working Temp. |
Protection grade |
SMT-012-026VW |
100-265V |
47~63HZ |
12±0.5V |
2.00A |
24W |
-25~50°C |
IP20 |
SMT-024-026VW |
100-265V |
47~63HZ |
24±0.3V |
1.00A |
24W |
-25~50°C |
IP20 |
SMT-036-026VW |
100-265V |
47~63HZ |
36±0.5V |
0.66A |
24W |
-25~50°C |
IP20 |
Applications:
Our products are widely used in various industries, such as
- indoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights, Controller Panels, etc.
UL 110v 120v 12v 2a transformer
plastic cover constant cuerrent LED drivers
dimmable constant voltage & current led drivers
enclosure power supplies
US UK EU wall type & desktop type power adapter
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 2 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
our market
Our major markets are in EU & North America,it takes about 70% markets share. view transaction history
factory & equipments view:
packaging & shipping
inner box-white box + outer carton- standard exporting carton for packing
FAQ
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future!
