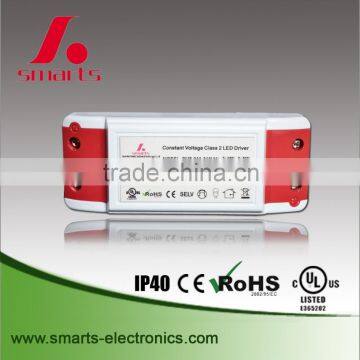

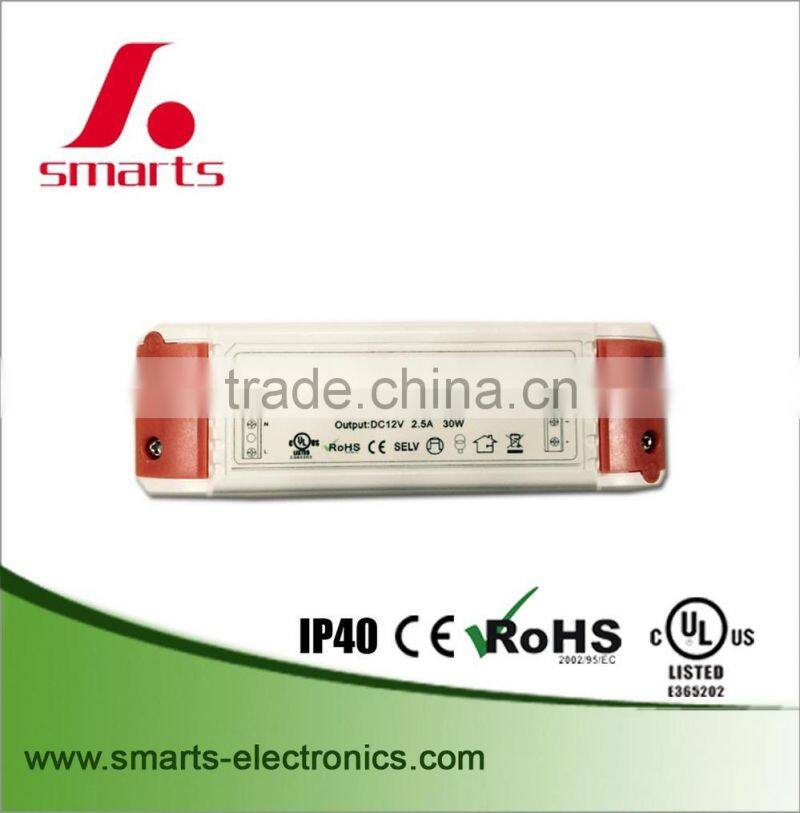

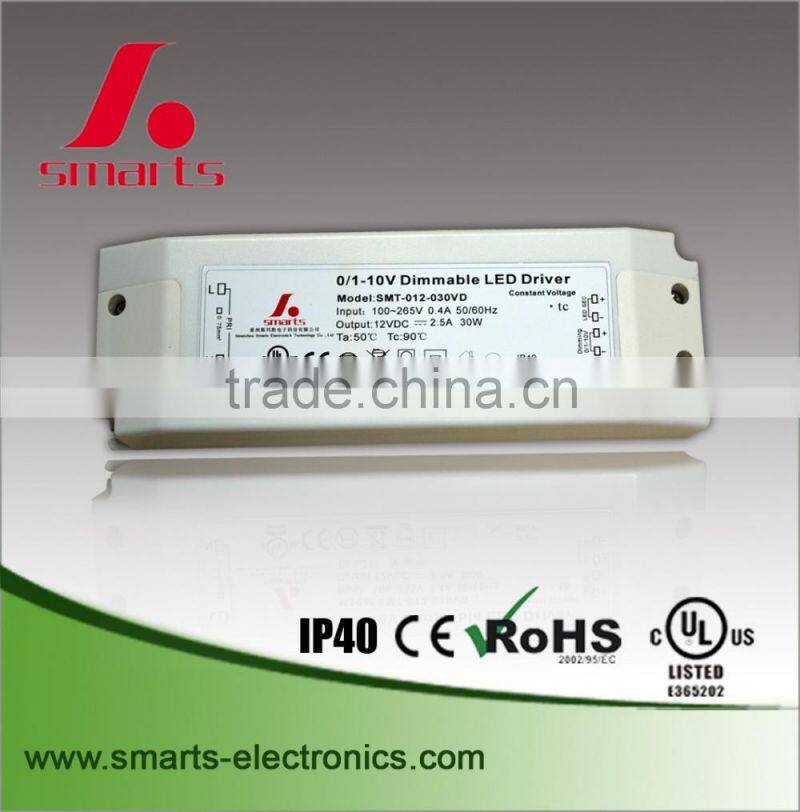

Best price and High quality 24volt 30W led power supply
Features
- Model:SMT-012-030VW
- Input voltage: 100-265vAC
- output voltage: 12Vdc
- output current: 2.5A
- output power: 30Watt
- Output Frequency: 47-63Hz
- Size: 140*45*28mm
- Case material: plastic cover
- Net weight: 118g/pcs
- Waterproof rate: IP20
- CE, UL&CUL, ROHS approval
- 2 years warranty.
General Specification
• High efficiency,save energy ,protected environment
• High stability and low ripple, increase light efficiency and decrease light attenuation
• Meet to safety standard and EMC
• Assure LED stability long lift and light efficiency by constant voltage
• Passed high ,low temperature and waterproof testing.
• Integrity protection,over loading, over voltage ,over current
• 8Hrs and 100% full load burn-in test.
Environment :
- Working Temperature : -30 ~ +60°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety :
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Product parameters
Model |
Input voltage(AC V) |
Working Frequency (Hz) |
Output voltage (DC V) |
Output Current |
Output power (DC W) |
Working Temp. |
Protection grade |
SMT-012-030VW |
100-265V
|
47~63Hz |
12±0.5 |
2.5A |
30W |
-25~50°C |
IP20 |
SMT-012-036VW |
100-265V
|
47~63Hz |
12±0.5 |
3.00A |
36W |
-25~50°C |
IP20 |
SMT-024-030VW |
100-265V
|
47~63Hz |
24±0.3 |
1.25A |
30W |
-25~50°C |
IP20 |
|
SMT-024-036VW
|
100-265V |
47~63Hz |
24±0.3 |
1.50A |
36W |
-25~50°C |
IP20 |
Best price and High quality 24volt 30W led power supply
24v 100w waterproof ip67 constant voltage led driver
CE UL listed triac dimming led driver 24v 80w
ac/dc 12v 30w constant voltage dimmable led transformer
36W 24V 1.50A desktop power supply switching power AC/DC adapter
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
why choose us??
1. We are UL/cUL audited LED drivers/power supplies enterprise in China.
2. Alibaba assessed 6 years Gold supplier and more than 10 years led industry experience. it will guarantee your order 100% safe!
3. Price is negotiable if you have large quantity demand.
4. 100% QC inspection Before Shipping.
5. Best Quality & Best Service with Competitive price.
6. Shipping will be the most economical for you and freight cost is informed in advance for your consideration decision for the shipping terms will be made according to your requirements.
7. We have our engineer team, if you have any question about your LED applications, let us know freely, we will give you the best solution.
8. Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
9. OEM design & OEM packing welcome.
10. Samples will be ready within 7 working days.
Q1: What's type power supply do you have?
Answer: We specialized in 0~10v/triac/DALI dimmable led drivers, constant voltage & current LED drivers, enclosure power suppliers, power adapters.
Q2: What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q3. what's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Q4: what's the payment do you have??
Answer:To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C, WESTERN UNION, PAYPAL, More payment options will be added in the near future.
Q5: How about the protection of product?
Answer:Most of our products have protection of short-circuit, overload, over voltage, over current and reserve polarity. About the specific product, please consult our sales stuff.
Q6: How about the transportation?
Answer:For small order,express will be best. And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7: What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen during the warranty period, but we need pictures or video to prove the defective comes from our quality problem.
We will always be here and try our best to provide you our best service !
Waiting for your kind inquiry !
