- Quanzhou Smarts Electronic & Technology Co., Ltd.
- China Manufacturer with main products:waterproof constant voltage & current LED driver ,plastic case constant voltage & current led driver ,Enclosed metal case power supply ,0-10V/Triac Dimmable constant voltage & current LED Driver ,Switching Power Supply
Home > Products > plastic cover LED driver > 12v 2a transformer 24w led dc power supply

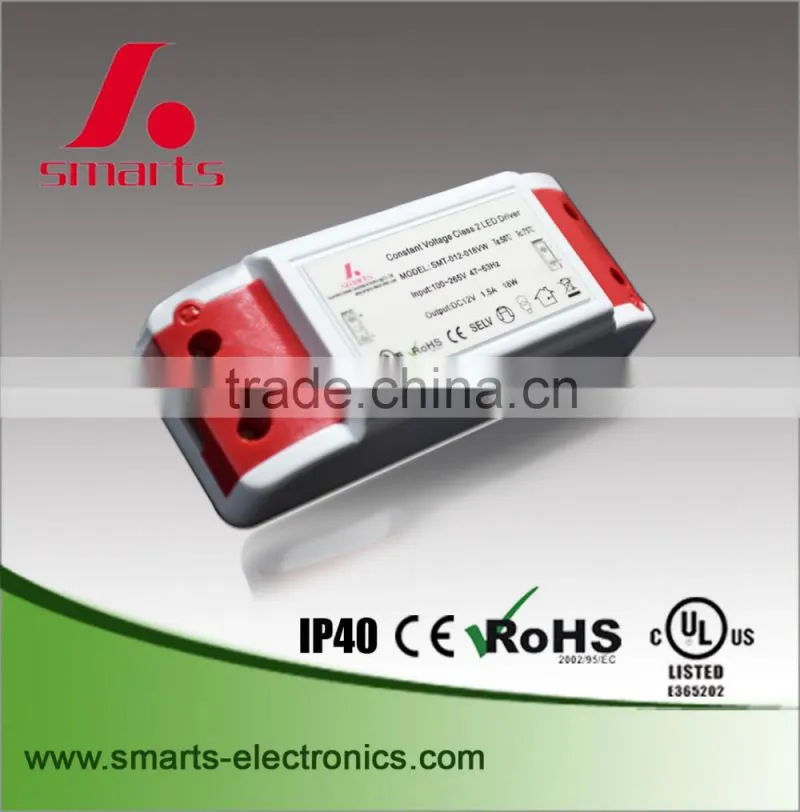

12v 2a transformer 24w led dc power supply
- 30000 Piece / Pieces per Month
- xiamen
- Credit Card
Product Details
Place of Origin: | Fujian, China | Brand Name: | SMARTS | Model Number: | SMT-012-026VW |
Output Power: | Other, 24W | Output Type: | Other, Single, Single output | Input Voltage: | Other, 100~265vAC |
Output Voltage: | 12V | Output Frequency: | 47-63Hz | Output Current: | 2A |
Product Description
12v 2a transformer 24w led dc power supply
What's descriptions of 12v 2a transformer 24w led dc power supply?
- Input volt.:100~265vAC
- Efficiency>82%
- Warranty: 2 years
- CE,UL,ROHS approval
- Size-- 116*44*20mm
- Net weight: 91g/pc
- Case material:plastic
- Waterproof rate: IP40
- CE, UL&CUL, ROHS approval
Features:
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Integrity protection,over loading, over voltage ,over current.
- 8Hrs and 100% full load burn-in test.
Environment :
1.Working Temperature : -25 ~ +50°C
2.Working Humidity : 20 ~ 90% RH non-condensing
3.Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
4.TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
5.Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety :
1.Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
2.Withstand Voltage : I/P-O/P: 3000KVAC
3.Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Product parameters:
Model | Input voltage(AC V) | Working Frequency | Output voltage | Output Current | Output power(DC W) | Working Temp. | Protection grade |
SMT-012-026VW | 100-265V | 47~63HZ | 12v | 2A | 24W | -25~50°C | IP20 |
SMT-024-026VW | 100-265V | 47~63HZ | 24v | 1A | 24W | -25~50°C | IP20 |
SMT-036-026VW | 100-265V | 47~63HZ | 36v | 0.67A | 24W | -25~50°C | IP20 |
SMT-048-026VW | 100-265V | 47~63HZ | 48v | 0.5A | 24W | -25~50°C | IP20 |
Applications:
Our products are widely used in various industries, such as
- indoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights, Controller Panels, etc.
What's 12v 2a transformer 24w led dc power supply?
Can you help me fix my own power cords???
Answer: We can help you fix / find all kinds of power cords to our drivers as per your request, for example:
What's the other type power supply do you have???
Answer: We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
AC-DC adapter |
constant current led drivers
| switching power supplies |
triac dimmable led drivers
| 0-10v dimmable led drivers | DALI dimmable led drivers
|
what is the packing situation for ??
Answer: inner box-white box + outer carton- standard exporting carton for packing.
- Inner box: white box
- Outer carton: standard exporting carton for packing
Shipping:
- Samples: FedEx, DHL, UPS or TNT ;
- Batch Goods: By Air or By Sea for FCL;
- Customers Specifying Freight Forwarders or Negotiable Shipping Methods;
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 2 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
our market
Our major markets are in EU & North America,it takes about 70% markets share. view transaction history
factory & equipments view:
FAQ
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future!
