Help Center12v 24V ac dc Adapter
Related Products
Specifications
12v 24V ac dc adaptercompact designing,reliable quality
Wide range input vltage100-240V
UL/CE/ROHS approval
2 years war

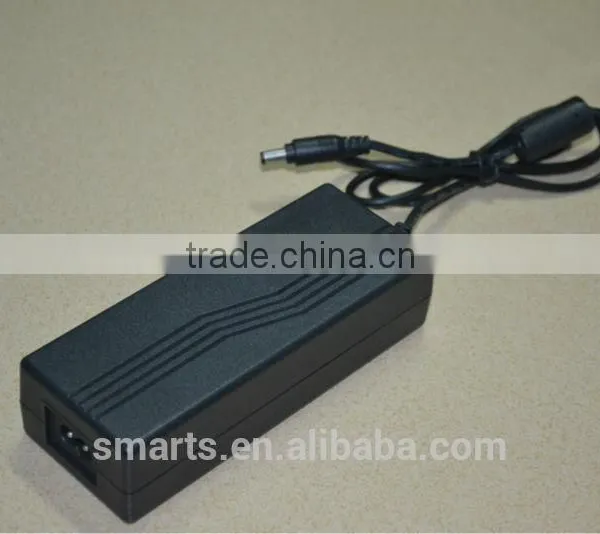

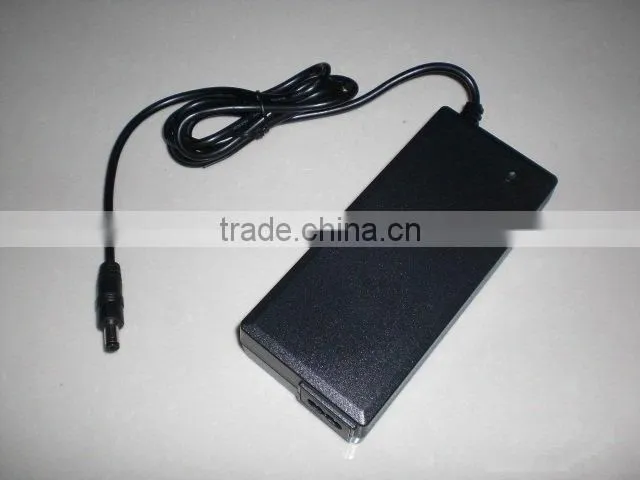

12v 24V ac dc adapter
Specifications
• 2 pole AC inlet IEC320-C14 • Fully enclosed plastic case
• Class I power (with earth pin) • Hiccup mode, auto-recovery
• Full output 5~120V safety approved • LED indicator for power on
• Protections: Short circuit / Overload / • Approvals: UL / CUL / CE
Over voltage
• 2 year warranty
General Specification
Item No.: |
SMT-100W series |
AC input voltage range ............. 100~240VAC / 1.9A
AC inrush current (max.) ........... Cold start, <40A at 230VAC
Overload protection................... Hiccup mode, auto-recovery
Over voltage protection .............110~140% rated output voltage
Hold up time...............................16ms at full load
Withstand voltage...................... I/P-O/P: 4242VDC, 1minute
Working temperature..................0~40°C @ 100% load, 50°C @ 70% load
Safety standards........................ UL1950, TUV EN60950-1 approved
EMC standards.......................... EN55022-B, EN61000-3-2,3
Length of output cable................180cm of SPT-1,18AWG x2C
Standard DC plug....................... P2J: 2.1x5.5x10mm / C+, barrel type
Item No. |
output |
Tol. |
R&N |
Effi. |
|
SMT-100W-001 SMT-100W-002 SMT-100W-005 SMT-100W-007 SMT-100W-008 |
12V / 0~8.33A |
±4% |
100mV |
85.5% |
48V / 0~2.08A |
±4% |
100mV |
86.5% |
|
50V / 0~2.0A |
±4% |
100mV |
87.5% |
|
52V / 0~1.92A |
±3% |
200mV |
89.5% |
|
55V / 0~1.82A |
±2% |
200mV |
90.0% |
