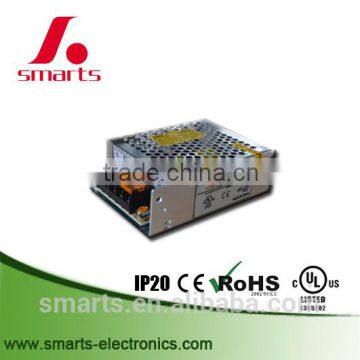

ul ce 5v 12v 24v 36v 3a smps power supply

Name: ul ce 5v 12v 24v 36v 3a smps power supply
Brand: SMARTS
Availability: InStock

FOB Price

USD $7 - $9 / Piece

1 Piece(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port xiamen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	SMARTS
Model Number	SMT-024-072SA	Output Power	Other, 72Watt
Output Type	Single	Input Voltage	Other, 100-240vAC
Output Voltage	24V DC	Output Frequency	47-63Hz
Output Current	3Amp

Product Description

ul ce 5v 12v 24v 36v 3a smps power supply

Product Description

Product parameters:

Model		SMT-005-72SA	SMT-012-72SA	SMT-024-72SA	SMT-036-72SA	SMT-048-72SA
output	DC voltage	5V	12V	24V	36V	48V
	Voltage tolerance	±2%	±1%	±1%	±1%	±1%
	Rated current	14.4A	6A	3A	2A	1.5A
	Current range	0~14.4A	0~6A	0~3A	0~2A	0~1.5A
	Rated power	72W	72W	72W	72W	72W
	Ripple&noise	100mvp- p	150mvp-p	150mvp-p	150mvp-p	150mvp-p
	DCvoltage ADJ.range	±10%	±10%	±10%	±10%	±10%
input	Voltage range	100~240Vdc
	frequency	47~63HZ
	efficiency	83%	83%	83%	83%	83%
	Inrush current	Cold start current 18A/115VAC,36A/230VAC
	Leakage current	< 1mA/240VAC
	protection	overload	Rated output power115%~150% start over load protection
		overload
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
safety	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
Fitstandard	EMC standard	Comply with EN55022,CLASSA
others	Dimension	1128834mm (LWH)
others	Weight/packing	0.5kg/30pcs/15kg/0.335m³
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation

Features:

Constant voltage design with high accuracy.
International wide input voltage.
output voltage 5v/12v/24v/36v/48v selectable.
Wattage: 15w-600w.
High efficiency, save energy, protected environment.
High stability and low ripple, increase light efficiency and decrease light attenuation.
Meet to safety standard and EMC.
Assure LED stability long lift and light efficiency by constant voltage.
Overcurrent, overvoltage, overheat, short curcuit protection:Auto-recovery
Start,raise,stable time: 500ms,30ms,40ms/230VAC,500ms,30ms,16ms/115VAC
Cooling by free air convection.
100% full load burn-in test.
Brand electrotronic components.
ROHS material.
Well match with LED guardrail lamp, Flood light, light word, street lamp etc, For LEDs series-parallel.

Packing and Shipping

N.W./pcs	G.W/ctn	Qty/ctn	Carton Size( m³)
ul ce 5v 12v 24v 36v 3a smps power supply
500g/pcs	13.5kg/ctn	30pcs	0.0318 m³

MOQ: 1 pcs
Payment: T/T, Western Union, Paypal, Trade Assurance.
Delivery: 7 working days for sample order,12 working days for 500pcs.
FOB , EXW and CIF all are available.
Shipping freight are quoted under your requests.
Loading port: Xiamen
Discounts are offered based on large quantities.
Price: Get quote

Company Information

Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.

We have 7 kinds of led drivers or led power supply:

1.Constant Voltage LED Driver;

2.Constant Current LED Driver;

3.Triac CC&CV Dimmable LED Driver

4.0-10v CC&CV Dimmable LED Driver

5.DALI CC&CV Dimmable LED Driver

6.Power Adapter

7.Switching Power Supply

All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.

Our led drivers are widely used for:

1.Indoor LED illuminating lights

2.LED Neon, LED urban Decoration

3.LED Lighting Advertising,LED Display

4.Safety Protection Apparatus

5.Telecommunications, Networks

6.Vehicle Lights, Controller Panels

our market:

Our major markets are in EU & North America,it takes about 85% markets share. view transaction history

factory & equipments view:

certifications:

CE, UL/CUL, ROHS approval.

Our Services

What Service we can supply??

All inquiries will be replied within 24 hours
Professional manufacturer,welcom to visit our website
OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification;
After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
High efficiency,long life span,reasonable&competetative price,fast lead time;
We have our engineer team, if you have any question about your LED applications, let us know freely.
