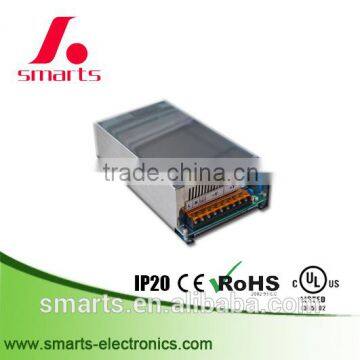

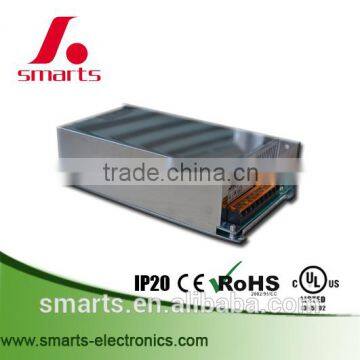

500w Good quality switching power supply 36v
Product parameters
Model |
SMT-005-500SA |
SMT-012- 500SA |
SMT-024- 500SA |
SMT-036- 500SA |
SMT-048- 500SA |
|
|
output |
DC voltage |
5V |
12V |
24V |
36V |
48V |
Voltage tolerance |
±2% |
±1% |
±1% |
±1% |
±1% |
|
Rated current |
100A |
33.33A |
16.67A |
13.89A |
10.42A |
|
Current range |
0~100A |
0~33.33A |
0~16.67A |
0~13.89A |
0~10.42A |
|
Rated power |
500W |
500W |
500W |
500W |
500W |
|
Ripple&noise |
100mvp-p |
150mvp-p |
150mvp-p |
150mvp-p |
150mvp-p |
|
DCvoltage ADJ.range |
± 10% |
±10% |
±10% |
±10% |
±10% |
|
|
input |
Voltage range |
100~240Vdc |
||||
frequency |
47~63HZ |
|||||
AC current |
3.2A/115VAC,1.6A/230VAC |
|||||
efficiency |
83% |
83% |
83% |
83% |
83% |
|
Inrush current |
Cold start current 18A/115VAC,36A/230VAC |
|||||
Leakage current |
< 1mA/240VAC |
|||||
|
protection |
overload |
Rated output power115%~150% start over load protection |
||||
protection type:cutoff output,recovery after restart power | ||||||
Over voltage |
6.8~8.2V |
15.6~17.8V |
18.6~20.8V |
30.6~33.2V |
33.2~35.6V |
|
protection type:hiccup mode,auto-recovery after fault condition is removed | ||||||
environment |
Working temp,humidity |
-10°C~+60°C,20%~90%RH |
||||
Storagetemp,humidity |
-20°C~+85°C,10%~95%RH non-condensing |
|||||
Withstand vibration |
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes |
|||||
safety |
Withstand voltage |
I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC |
|||||
- CE, UL&CUL, ROHS approval
- 2 years warranty
- (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features:
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Integrity protection,over loading, over voltage ,over current.
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
Environment :
- Working Temperature : -25 ~ +50°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety :
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
| Packing | |||||||
| N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
| 500w Good quality switching power supply 36v | |||||||
| 1250g/pcs | 18kg/ctn | 12pcs | 463*323*254mm | ||||
Packing:
Shipping
What kind of LED Driver/Power Supply We do??
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
|
Triac CC&CV Dimmable Series
|
0-10V CC&CV Dimmable Series
|
DALI CC&CV Dimmable Series
|
|
Wall-mount Power Adapter
|
HOME
|
Desktop Power Adapter
|
|
Constant Voltage Series
|
Enclosue Power Supply
|
Constant Current Series
|
Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.
We have 7 kinds of led drivers or led power supply:
1.Constant Voltage LED Driver;
2.Constant Current LED Driver;
3.Triac CC&CV Dimmable LED Driver
4.0-10v CC&CV Dimmable LED Driver
5.DALI CC&CV Dimmable LED Driver
6.Power Adapter
7.Switching Power Supply
All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
our sales team:
factory & equipments view:
certifications:
CE, UL/CUL, ROHS approval.
What Service we can supply??
-
All inquiries will be replied within 24 hours
-
Professional manufacturer,welcom to visit our website
- OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; - After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
