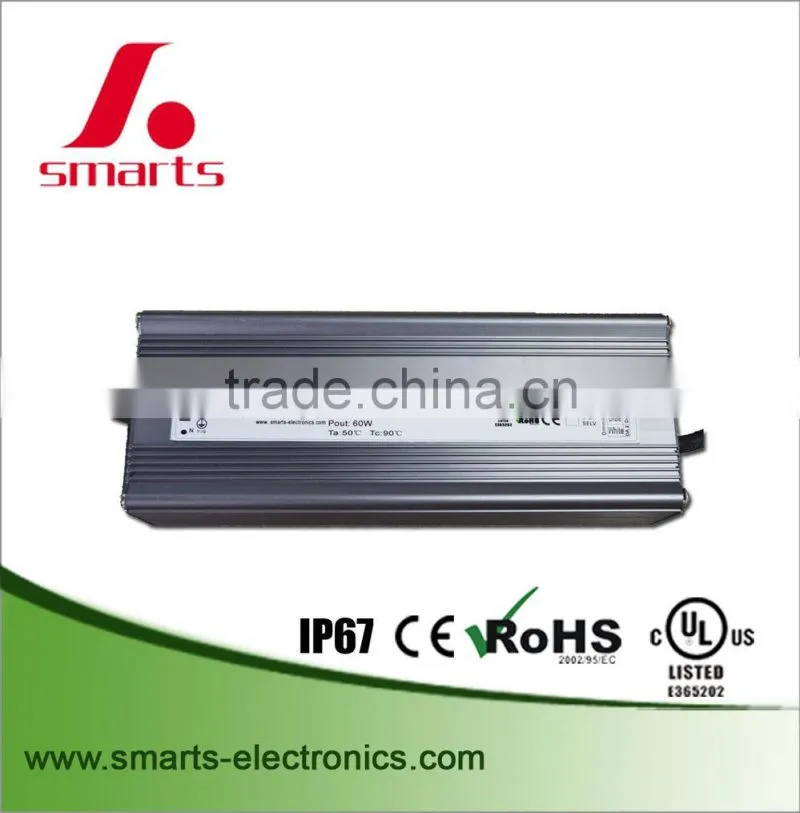

DALI led driver waterproof led power supply 12v 60w
Specifications:
- AC-DC DALI Dimmable LED Driver
- wide input volt and freq: 100-265vAC /47~63Hz
- Ambient temp.:-20 degree~40 degree @ full load
- Efficiency > 88%
- PF>0.90
- size: 180*60*34mm
- waterproof rate: IP67
- packing: 20pcs/ctn
- Vi=110/220V
- THD:<10%
- 3 years warranty
- Isolated Designing solution
Product Features:
1.Universal AC input (100~265V)
2.Protections: Short circuit/Overload/Over voltage/Over temp.
3.Built-in active PFC function
ing standard: Ul1310 Class 2 power unit
6.Cooling by nature
7.Suitable for dry location
8.Suitable for LED lighting and moving sign applications
9.Follow the global lighting safety regulations
Environment parameter:
1. Working temperature:-40 -80°C
2. Store temperature:-40 -85°C
3. Working humidity:10-90%
4. Lifespan:(MTBF)50,000 hours
5. Case machine specifications
6. Case: plastic case
Safety :
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Product parameters:
| Model | SMT-012-060VM | SMT-024-060VM | |||||||||
| Single Output features | Constant voltage | 12vDC | 24vDC |
|
|||||||
| output current | 5.0Amp | 2.5Amp | |||||||||
| output power | 60watt | 60watt | |||||||||
| Ripple & Noise | 250mV | ||||||||||
| Current Regulation | ±3% | ||||||||||
| Starting time | 1000mS/230Vac, 3000mS/110Vac | ||||||||||
| Input | Voltage range | 100Vac-265Vac | |||||||||
| Frequency range | 47Hz-63Hz | ||||||||||
| Power factor | PF>0.93/230Vac,PF>0.92/110Vac | ||||||||||
| Efficiency | 88%/110Vac , 86%/230Vac | ||||||||||
| Inrush Current | 20A/110Vac, 40A/230Vac | ||||||||||
| Leakage Current | <1mA/120Vac,240Vac | ||||||||||
| Protection | short circuit | ||||||||||
| Single Protection,Hiccup ,recovery after the fault removed. | |||||||||||
| Over voltage | Protection mode:Limit highest voltage, recovery after the fault removed. | ||||||||||
| Over temperature | 105oC±5 oC ( Internal radiator's temperature) | ||||||||||
| over load | Protection mode:Closed Output voltage,recovery after temperature automatic recovery. | ||||||||||
Applications:
Our products are widely used in various industries, such as
- indoor/outdoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights, Controller Panels, etc.
DALI led driver waterproof led power supply 12v 60w
constant voltage LED drivers
plastic cover constant cuerrent LED drivers
dimmable constant voltage & current led drivers
enclosure power supplies
packaging & shipping
inner box-white box + outer carton- standard exporting carton for packing
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
FAQ
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future
