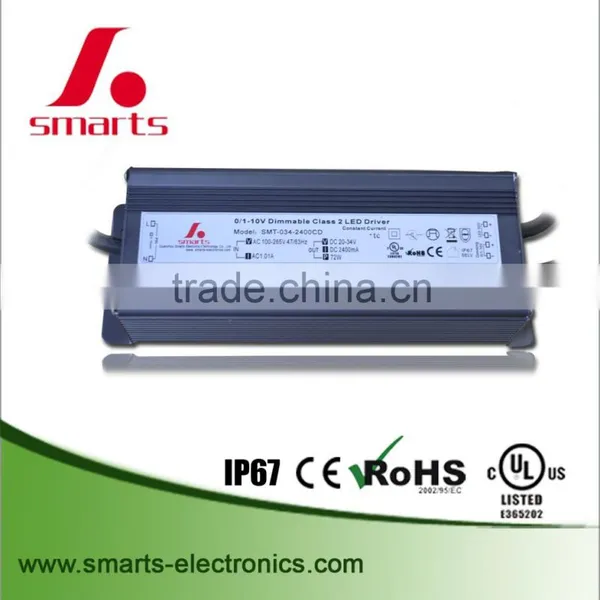

ul listed 110v 220v 80w 2000ma waterproof led power supply
Model |
SMT-057- 1400CD |
SMT-040- 2000CD |
SMT-038- 2100CD |
SMT-034-2400CD |
|
Output |
DC Current |
0-1400mA |
0-2000mA |
0-2100mA |
0-2400mA |
Current Accuracy |
±5% |
||||
Voltage Range |
35-57V |
20-40VV |
20-38V |
18-34V |
|
Rated power |
80W |
80W |
79W |
81W |
|
Input |
Voltage Range |
100~265VAC |
|||
Frequency Range |
47~63HZ |
||||
PF |
PF>0.9/110V, PF>0.93/220V |
||||
Full Load Efficiency(Typ)) |
>89% |
>90% |
>90% |
>90% |
|
AC Current (Typ.) |
0.352A/110V-220VAC |
0.349A/110V-220VAC |
0.370A/110-220VAC |
0.370A/110-220VAC |
|
Leakage current |
<0.75mA/220VAC |
||||
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||
Over voltage |
<280VAC |
||||
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||||
Environment |
Working TEMP. |
-40~+60℃ |
|||
Working Humidity |
20~95%RH,non-condensing |
||||
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||||
efficient |
±0.03%/℃(0~50℃) |
||||
Vibration |
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes |
||||
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 IP67 |
|||
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||||
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
||||
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (>50%Load) |
||||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
||||
Others |
Weight |
1.1Kg |
|||
Size |
200*68.5*45mm(L*W*H) |
||||
packing |
Carton: 329*279*176mm, 10pcs /CTN inner box: 245*80*58mm |
||||
Notes |
1. All parameters NOT specially mentioned are measured at 110-220VAC input , rated load and 25℃ of ambient temperature. 2. <Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||||
Features
- Output constant current type
- range 100-265VAC
- Built-in PFC function
- Efficiency 90% / PF>0.92
- Protections:shortcircuit/over current/over voltage/over temperature
- Cooling by free air convection
- IP67 design for indoor or outdoor installations.
- Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance .
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Suitable for dry/damp/wet locations
- 3 years warranty
Mechanical Specification
- Input Rubber H03VV-F 3G *0.75M2,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)
- Signal Rubber H03VV-F 2G*0.75M2,Blue is(DIM+),White is(DIM-)
- Output Rubber H03VV-F 2G*0.75M2,Red is output(V+),Black is output(V-)
Dimming Operation
- Built-in 3 in 1 dimming function, IP67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-
- Reference resistance value for output current adjustment (Typical)
Resistance value |
Signle driver |
0Ω |
10KΩ |
20KΩ |
30KΩ |
40KΩ |
50KΩ |
60KΩ |
70KΩ |
80KΩ |
90KΩ |
100KΩ |
OPEN |
Multiple drivers |
0Ω/N |
10KΩ/N |
20KΩ/N |
30KΩ/N |
40KΩ/N |
50KΩ/N |
60KΩ/N |
70KΩ/N |
80KΩ/N |
90KΩ/N |
100KΩ/N |
—— |
|
Percentage of rated current |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
102%-108% |
|
1-10/0-10V dimmable function for output current adjustment(Typical)
Dimming value |
0V |
1V |
2V |
3V |
4V |
5V |
6V |
7V |
8V |
9V |
10V |
OPEN |
Percentage of rated current |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
102%-108% |
10V PWM signal for output current adjustment (Typical): Frequency range:100Hz-3KHZ
Duty value |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
OPEN |
Percentage of rated current |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
102%-108% |
Remark: it is no level linear dimming solution !!!
- Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.

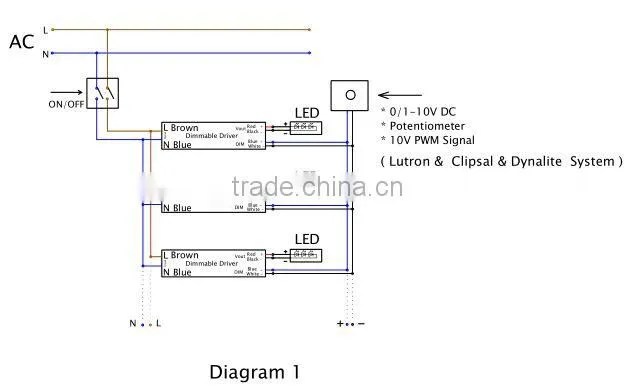

Connecting Diagram
| |
|
