100-265vac 24v Dimmable Dali Led Driver 35w Led Driver Dimmable

100-265vac 24v Dimmable Dali Led Driver 35w Led Driver Dimmable photo-1

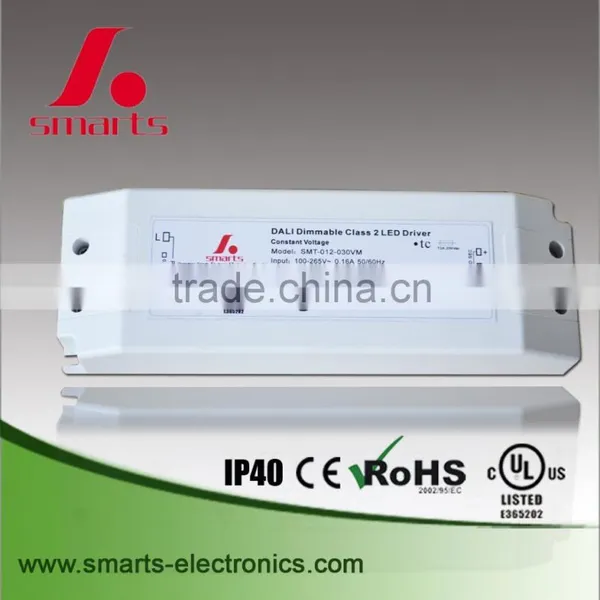

100-265vac 24v Dimmable Dali Led Driver 35w Led Driver Dimmable photo-2

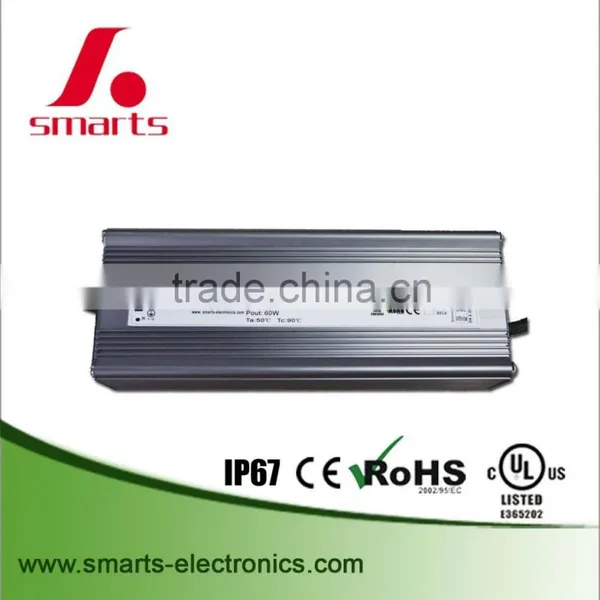

100-265vac 24v Dimmable Dali Led Driver 35w Led Driver Dimmable photo-3

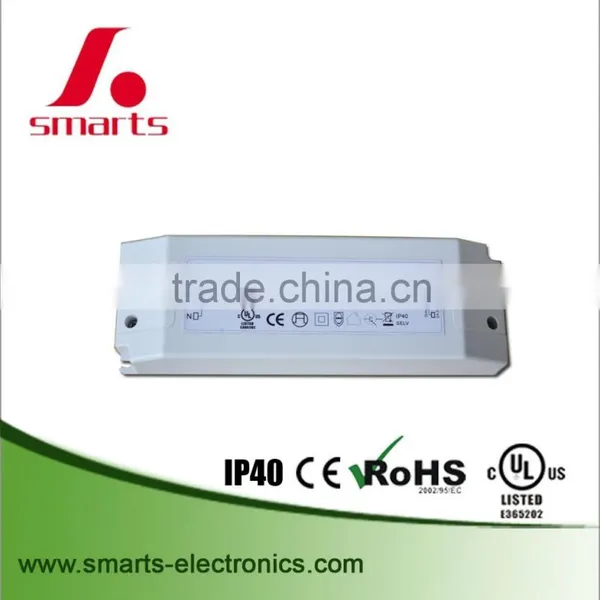

100-265vac 24v Dimmable Dali Led Driver 35w Led Driver Dimmable photo-4
100-265vac 24v Dimmable Dali Led Driver 35w Led Driver Dimmable photo-5

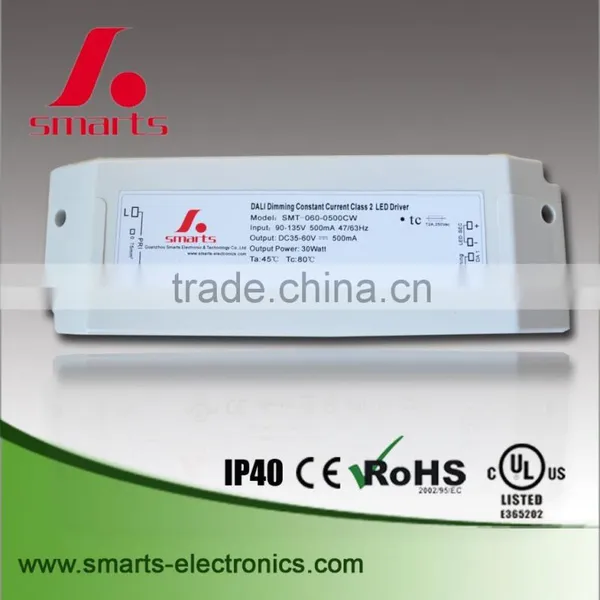

100-265vac 24v Dimmable Dali Led Driver 35w Led Driver Dimmable photo-6
US$ 25 - 28 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-024-036VM
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name SMARTS
Model Number SMT-024-036VM
Output Power Other, 35W
Output Type Single
Input Voltage Other, 100-265vAC
Output Voltage 24V
Output Frequency 47-63Hz
Output Current 0-1.46A

100-265vac 24v dimmable dali led driver 35w led driver dimmable



Product Description

Specification:

  1. Modle: SMT-024-036VM
  2. Input voltage:100~265vAC  47-63HZ
  3. Output :24v @0-1.46a  35w
  4. working mode: constant voltage
  5. dimming mode: DALI dimmable
  6. Case material:Aluminum housing
  7. Waterproof rate:  IP67
  8. Efficiency:> 87%
  9. PF:>0.9
  10. product size: 180*60*34mm
  11. unit weight: 0.9kg
  12. CE, UL&CUL, ROHS approval
  13. 3 years warranty
  14. (We promise to replace new ones to you if there is any defective happen during the warranty period)

Product Features:

  1. Universal AC input (100~265V)

  2. Suitable for LED lighting and moving sign applications

  3. designing standard: Ul1310 Class 2 power unit

  4. Built-in active PFC function

  5. High efficiency,save energy, protected environment.
  6. High stability and low ripple, increase light efficiency and decrease light attenuation.
  7. Meet to safety standard and EMC
  8. Assure LED stability long lift and light efficiency by constant voltage.
  9. Integrity protection,over loading, over voltage ,over current.
  10. Protections:Short circuit/Overload/Over temperature
  11. Cooling by free air convection
  12. 100% full load burn-in test

Environment parameter:



     1. Working temperature:-40 -50°C

     2. Store temperature:-40 -85°C

     3. Working humidity:20-95%



Safety :



     1.Safety Standards : IEC 61347 –2–11, IEC 61347 –1 , IEC 60529

     2.Withstand Voltage : I/P-O/P: 3000KVAC

     3.Isolation Resistance : I/P-O/P:100M Ohms/500VDC



Product parameters:

       item no.

    input

   voltage

   (V AC)

     Input
   Frequence
      (Hz)

   Output

   Voltage

    (vDC)

      Output

     current

      (Amp)

     Output

     Power

    (Watt)

       IP

      rate

 SMT-012- 036VM  100-265Vac  47-63Hz       12v    0-2.91A     35w     IP67
 SMT-024-036VM  100-265Vac  47-63Hz       24v    0-1.46A     35w     IP67
 SMT-036-036VM  100-265Vac  47-63Hz       36v    0-0.97A     35w     IP67



applications:

Our products are widely used in various industries, such as

  1. indoor/outdoor LED illuminating lights,
  2. LED Neon,
  3. LED urban Decoration
  4. LED Lighting Advertising,
  5. LED Display,
  6. Safety Protection Apparatus,
  7. Telecommunications,
  8. Networks,
  9. Vehicle Lights, Controller Panels, etc.
