Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > ul Listed 277vAC Led Power Supply

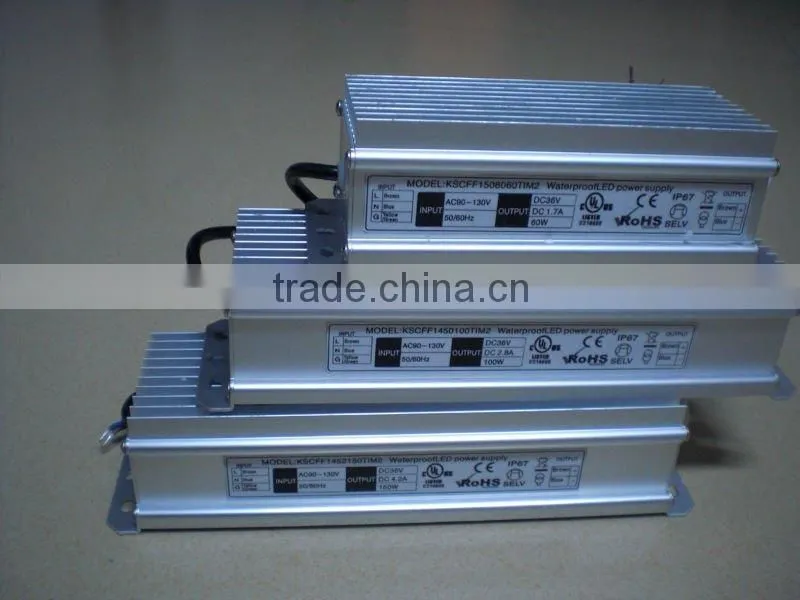

ul Listed 277vAC Led Power Supply

Name: ul Listed 277vAC Led Power Supply
Brand: SMARTS
SKU: 134456153

ul Listed 277vAC Led Power Supply thumbnail-1

ul Listed 277vAC Led Power Supply photo-1

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

SMARTS

Model Number:

SMT-080-0350CW

Contact Supplier Request Quote Chat Now

Quanzhou Smarts Electronic & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name SMARTS

Model Number SMT-080-0350CW

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 100-265V/ 100-305V/ 170-305vAC

Output Voltage 10-80VDC

Output Frequency 47-63Hz

Output Current 350mA / 500mA / 700mA / 900mA / 1050mA

Specifications

100-305vAC LED driver
Efficiency>85%
Output Current:350,500,700,900,1050,1200mA / 28W 30W
UL,CE,ROHS
2 year warranty

Features:
• waterproof rate: IP67

• net weight: 300g/pcs

• size:217x29x20mm

• Case material--Aluminum
• Wire requirement--Input white wire, Output red “+" black“-"

• CE, UL&CUL, ROHS approval

• 2 years warranty

General Specification
• High efficiency,save energy ,protected environment
• High stability and low ripple, increase light efficiency and decrease light attenuation
• Meet to safety standard and EMC,LVD
• Assure LED stability long lift and light efficiency by constant voltage
• Passed high ,low temperature and waterproof testing.
• Integrity protection,over loading, over voltage ,over current
• 8Hrs and 100% full load burn-in test.

ENVIRONMENT :

Working Temperature : -30 ~ +60°C

Working Humidity : 20 ~ 90% RH non-condensing

Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH

TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)

Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY :

Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved

Withstand Voltage : I/P-O/P: 3000KVAC

Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Product parameters

Item	Input voltage (AC V)	Working Frequency (Hz)	Output voltage (DC V)	Output Current (DC mA)	Output power(DC W)	Working Temp.	Protection grade
SMT-080-0350CW	100-265V 170-305V	47-63HZ	65-80V	350mA	28W	-25~50°C	IP67
SMT-060-0500CW	100-265V 170-305V	47-63HZ	45-60V	500mA	28W	-25~50°C	IP67
SMT-040-0700CW	100-265V 170-305V	47-63HZ	30-40V	700mA	28W	-25~50°C	IP67
SMT-036-0840CW	100-265V 170-305V	47-63HZ	20-36V	840mA	30W	-25~50°C	IP67
SMT-036-0900CW	100-265V 170-305V	47-63HZ	20-36V	900mA	32W	-25~50°C	IP67
SMT-028-1050CW	100-265V 170-305V	47-63HZ	18-28V	1050mA	28W	-25~50°C	IP67
SMT-023-1200CW	100-265V 170-305V	47-63Hz	10-23V	1200mA	28W	-25~50°C	IP67

Application:

Our products are widely used in various industries, such as outdoor LED illuminating lights, LED Neon, LED City Decoration, LED Lighting Advertising, LED Display, Safety Protection Apparatus, Telecommunications, Networks, Vehicle Lights, Controller Panels, etc.
