Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 277V LED Power Supply 12v 100w

277V LED Power Supply 12v 100w

Name: 277V LED Power Supply 12v 100w
Brand: SMARTS
SKU: 134456123

277V LED Power Supply 12v 100w thumbnail-1

Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

SMARTS

Model Number:

SMT-012-100VW

Contact Supplier Request Quote Chat Now

Quanzhou Smarts Electronic & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name SMARTS

Model Number SMT-012-100VW

Output Power 101 - 200W

Output Type Single

Input Voltage Other, 100-265V/ 170-305VAC

Output Voltage 12vDC, 24vDC, 36vDC, 48vDC

Output Frequency 47-63Hz

Output Current 2.08~8.33A

Specifications

Input voltage:100~265V,170-305V
power: 100Watt
Efficiency> 83%
Pass EN55015 standard EMC test
Certification: UL/CE/ROHS

Product reference:

Input voltage:100-265V /170-305VAC / 47-63Hz;

Working Temp:-25-50^oC;

Efficiency:≥84%

Certification: UL/CE/ROHS;

Portecion grade:IP67

We give 2 years warranty

(If there is any defective units happen during the warranty period, we promise to replace a new one to you.)

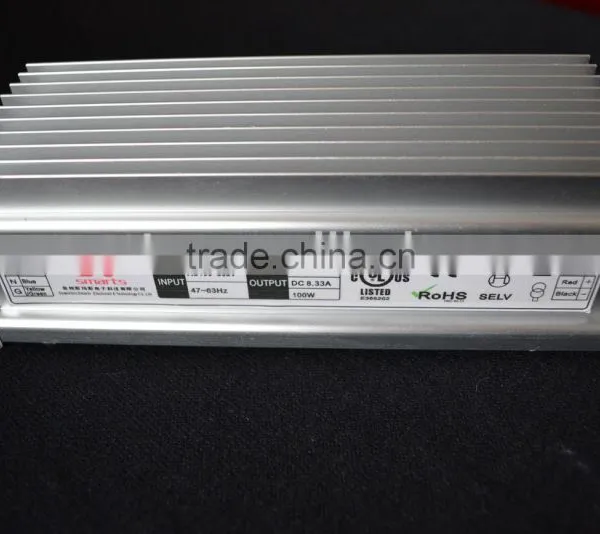

Product figure:

Size:220*68*53mm

Case material: Aluminum

Wire requirement:Input: white wire,Output Red + Black -

Characteristics of product

High efficiency,save energy, entironment friendly

High stability and low ripple, increase light efficiency and decrease light attenuation

Assure LED stability long lift and light efficiency by constant voltage

Integrity protection: over loading, over voltage, over current

2 years warranty

Certifications for UL, CE(LVD + EMC) & RoHS

Product parameters

Model	Input voltage(ACV)	Working Frequency (Hz)	Output voltage(DCV)	Output Current (Amp.)	Output power (DCW)	Working Temp.	Protection grade
SMT-036-100VW	100-265V 170-305V	47/63	36±0.5	2.78A	100W	-25~50°C	IP67
SMT-012-100VW	100-265V 170-305V	47/63	12±0.5	8.33A	100W	-25~50°C	IP67
SMT-024-100VW	100-265V 170-305V	47/63	24±0.5	4.17A	100W	-25~50°C	IP67
SMT-048-100VW	100-265V 170-305V	47/63	48±0.5	2.08A	100W	-25~50°C	IP67

Application:

Our products are widely used in various industries, such as outdoor LED illuminating lights, LED Neon, LED City Decoration, LED Lighting Advertising, LED Display, Safety Protection Apparatus, Telecommunications, Networks, Vehicle Lights, Controller Panels, etc.
