Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Tile Making Machine > Low Price High Efficient PU Continuous Sandwich Panel Making Machine/PU Sandwich Panel Production Line

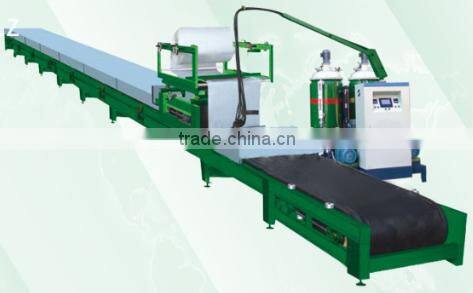

Low Price High Efficient PU Continuous Sandwich Panel Making Machine/PU Sandwich Panel Production Line

Low Price High Efficient PU Continuous Sandwich Panel Making Machine/PU Sandwich Panel Production Line thumbnail-1
Low Price High Efficient PU Continuous Sandwich Panel Making Machine/PU Sandwich Panel Production Line photo-1
US$ 1 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, sandwich panel making machine
Tile Type:
Colored Steel
Contact Supplier Request Quote Chat Now
Xiamen Oasis PU Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, sandwich panel making machine
Tile Type Colored Steel
Production Capacity 9-18m/min
Place of Origin Fujian, China
Brand Name Oasis
Model Number LZ-BC808
Power(W) 60kw
Voltage 380V
Dimension(L*W*H) 34000*2500*2600mm
Weight 44T
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Low Price

We have our own factory, in addition, we have 20 years PU machine manufacture experience, so the cost is lower than any other factory and trading company.

High Quality

Control system: PLC control. TIAN electrical components exclsively imported to achieve the goal for automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure, temperature and rotatin rate digital tracking and display and automatic control; abnormity or fault alam devices. Imported frequency converter (PLC) can control the proportion of 8 different products.

Injecting head: Material injection by a precision needlevalve, which is taper sealed, never worn, and never clogged.

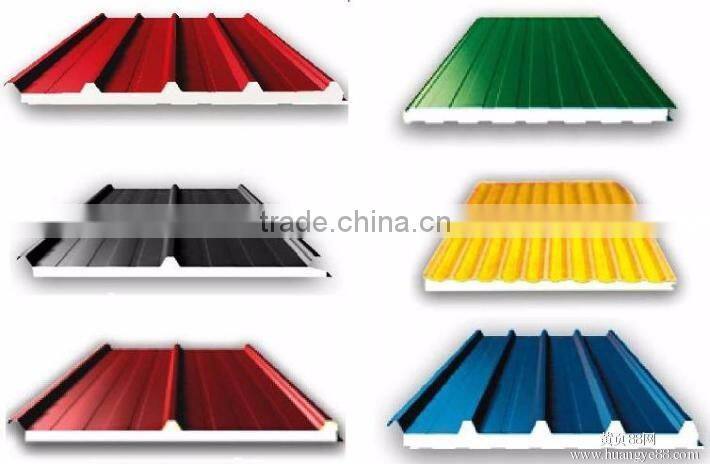

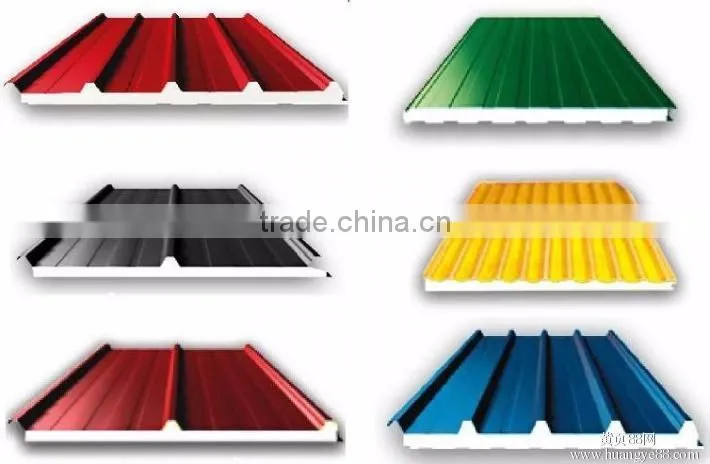

Products Show

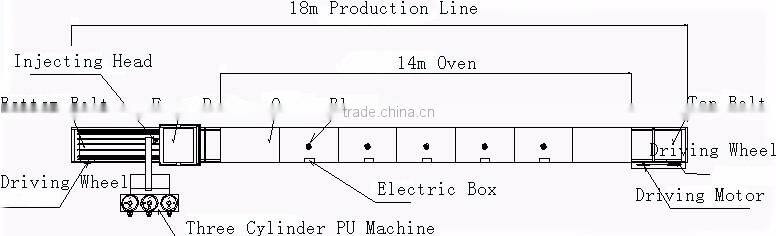

Structure and Craft

Structure:

Craft:


Technical Parameters
NO.
Item
Technical Date
1
Power
60kw
2
Flux of injection
20g-50g/S (Adjustable)
3
Mixing rate
100-60;60-100
4
Consistency
A1 A2 B:500-2000MPAS
5
Injecting accuracy
0.1/100
6
Air pressure
0.6-0.8Mpa
7
Production speed
8-18m(Adjustable)
8
PU foam
10mm(Adjustable)
9
Width of pu foam sample
300-700mm
Application
Packing&Delivery

Trade term:FOB,CIF,EXW
Payment terms:T/T.
Payment Condition:30% deposit in advance. 70% balance before delivery.
Delivery time:30-35days working days after deposit.
Packing:PE Wraping/ as customer's request....
Shipment:By Sea.
