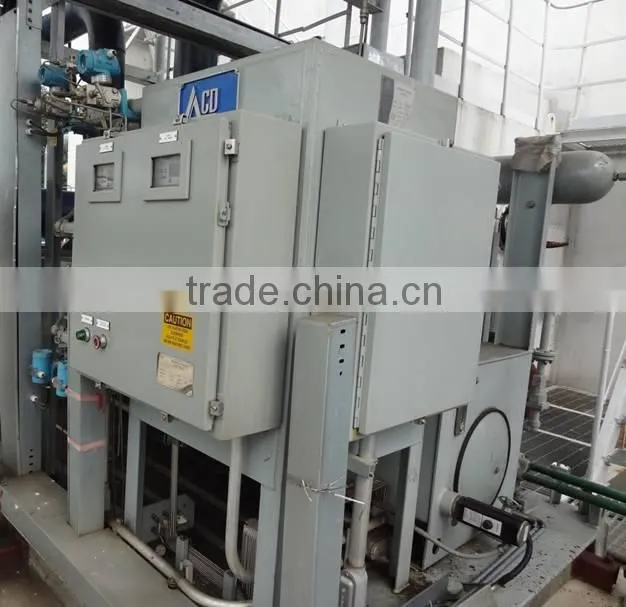

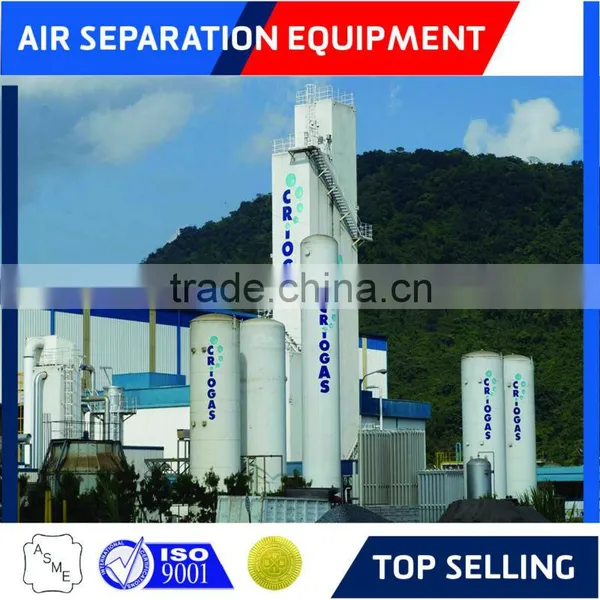

Help CenterAir Separation Plant
Related Products
Specifications
Air separation plantFeatures:
1) Oxygen output: 1,000cbm/h
2) Nitrogen output: 1,000cbm/h
3) Oxygen purity: ≥99.6%
4) Nitrogen purity: ≤10.0PPmO2
5) Working pressure: ~0.55MPa
6) Startup period: ~20h
7) Oxygen pressure out of column: ~0.03MPa
8) Nitrogen pressure out of column: 0.005MPa
9) Operation period: ≥12 months
10) Specific power consumption: 0.55kWh/cbmO2

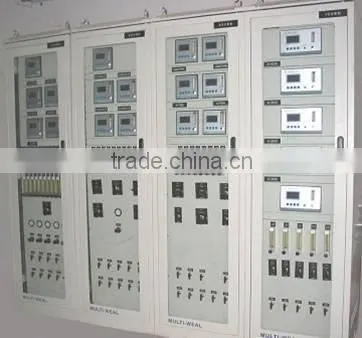

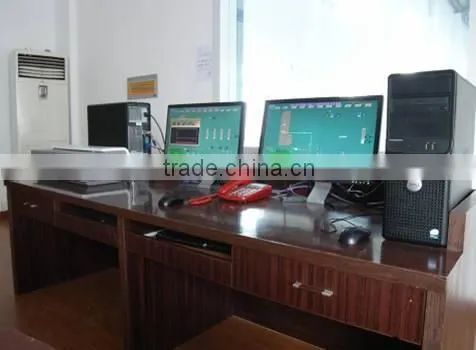

Electric control system

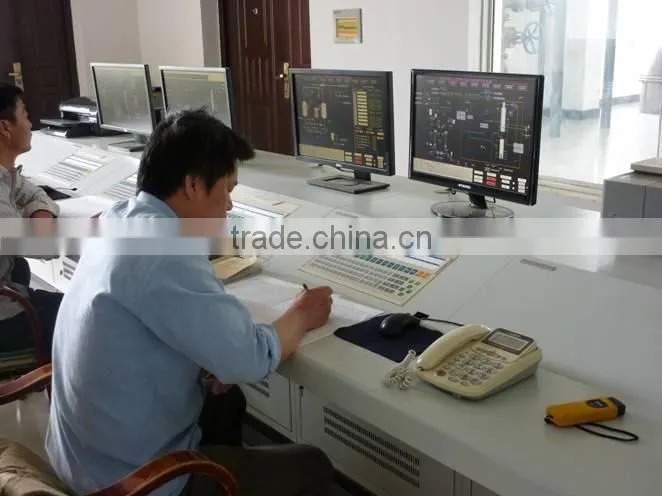

DCS control system
PLC control system

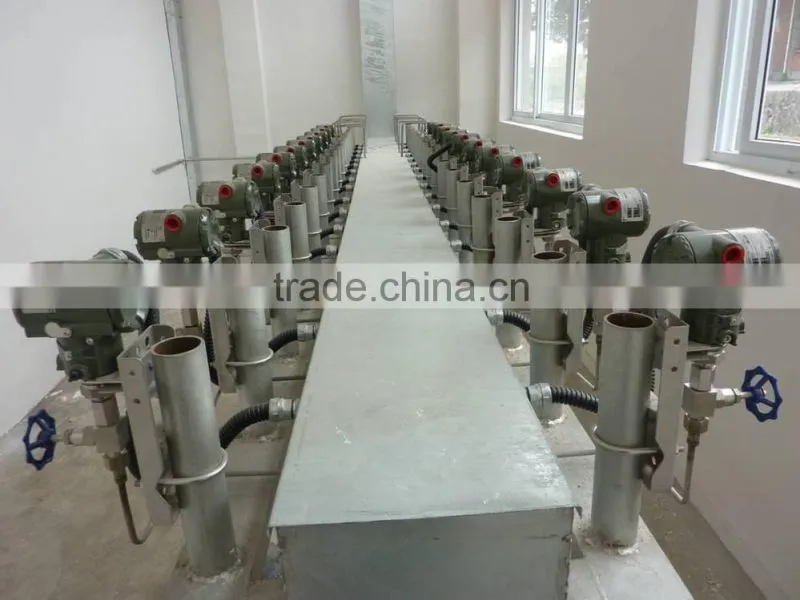

Transmitter
Chromatogram analysis system
O2, N2, Ar analysis system

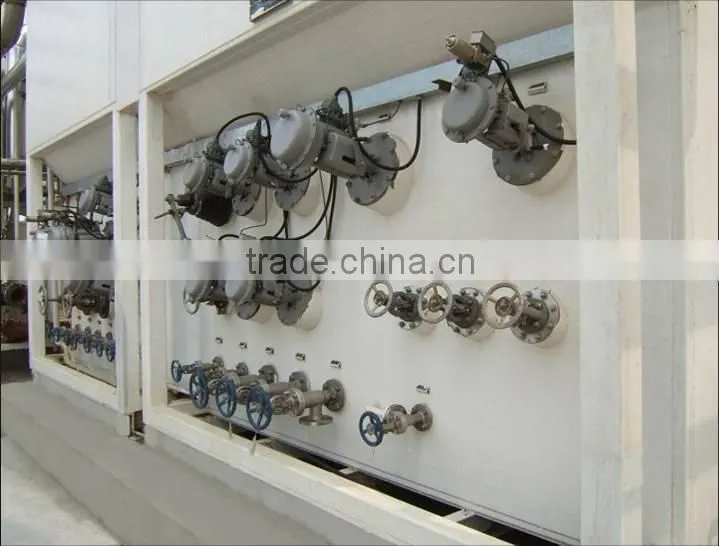

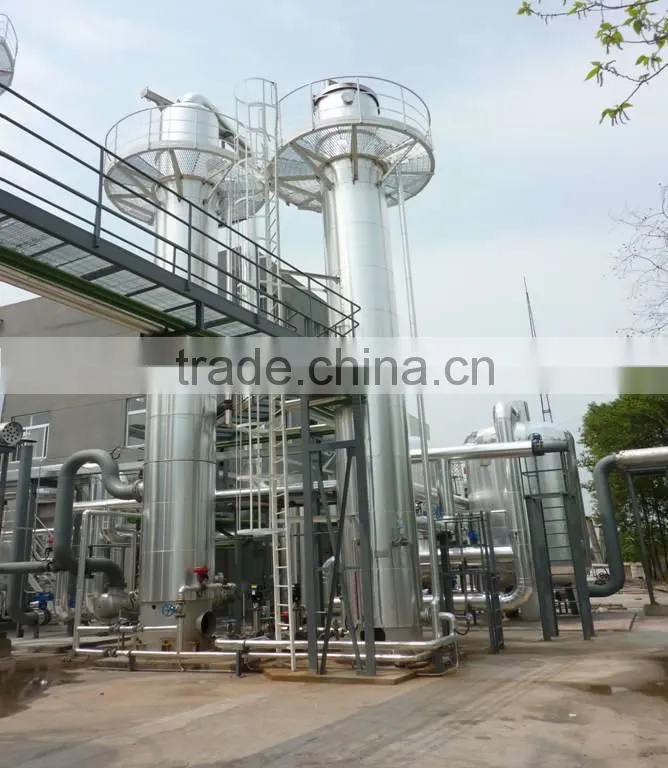

Rational partial design of cold box
Cold box internal structure design

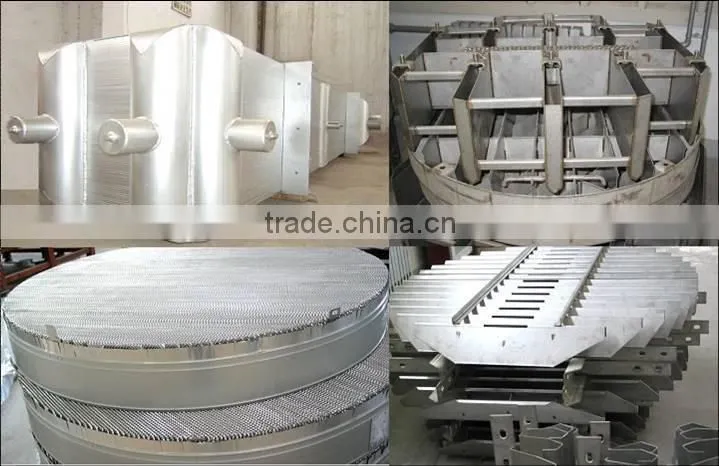

Plate-fin heat exchanger and packing

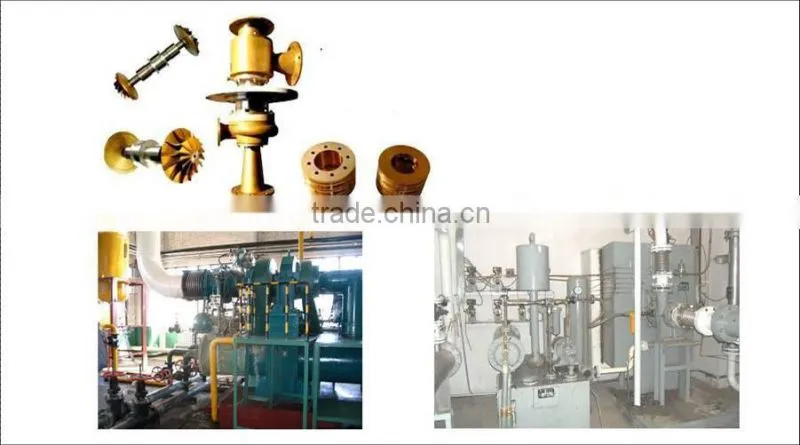

Expansion turbine

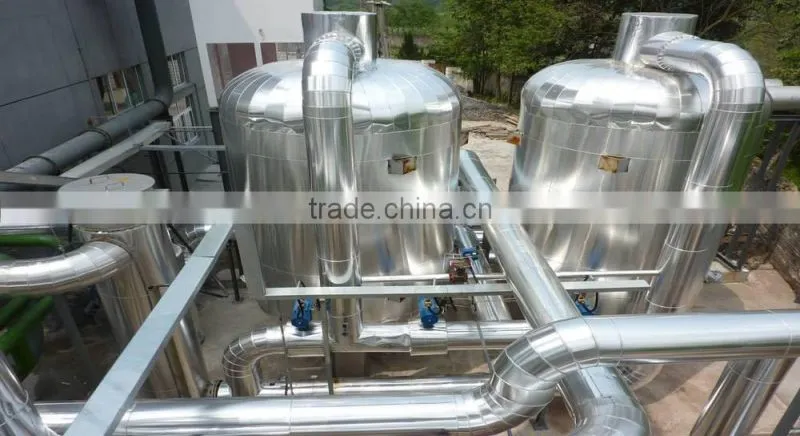

MS system
Waste Nitrogen Pre-cooling System
For those cases which nitrogen capacity is less than that of oxygen, waste nitrogen pre-cooling system is recommended, which features little resistance, high efficiency, low power consumption.
Components Introduction:

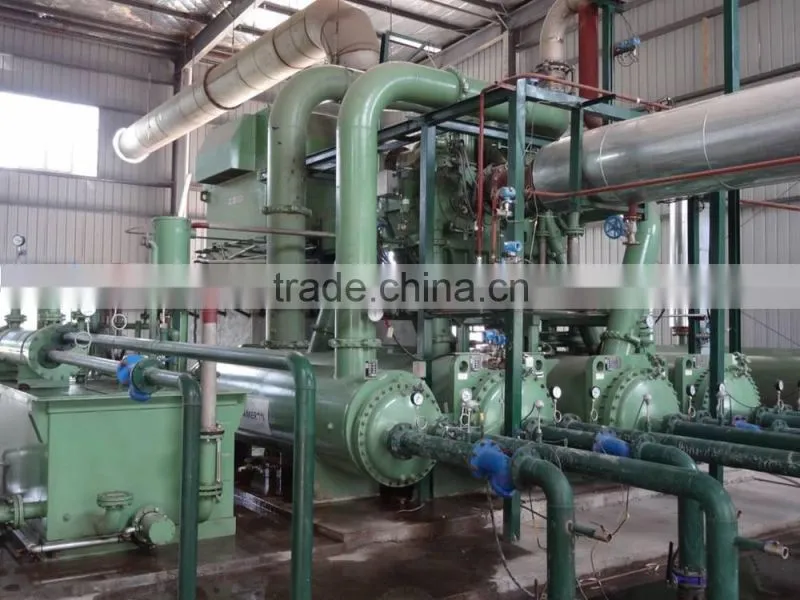

Centrifugal Air Compressor
