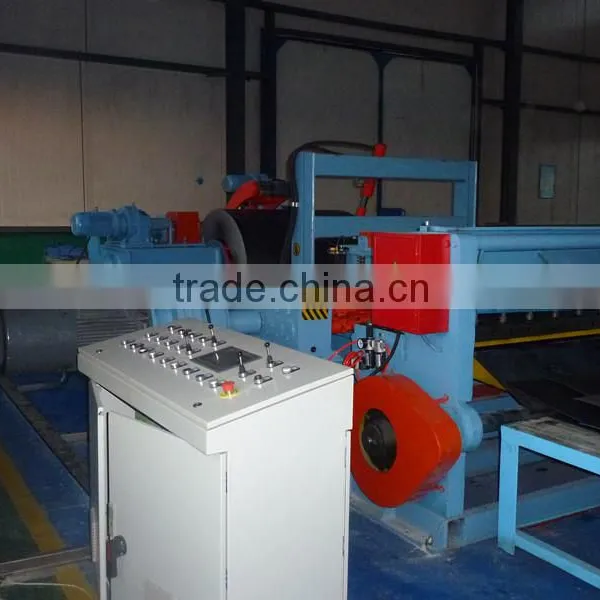

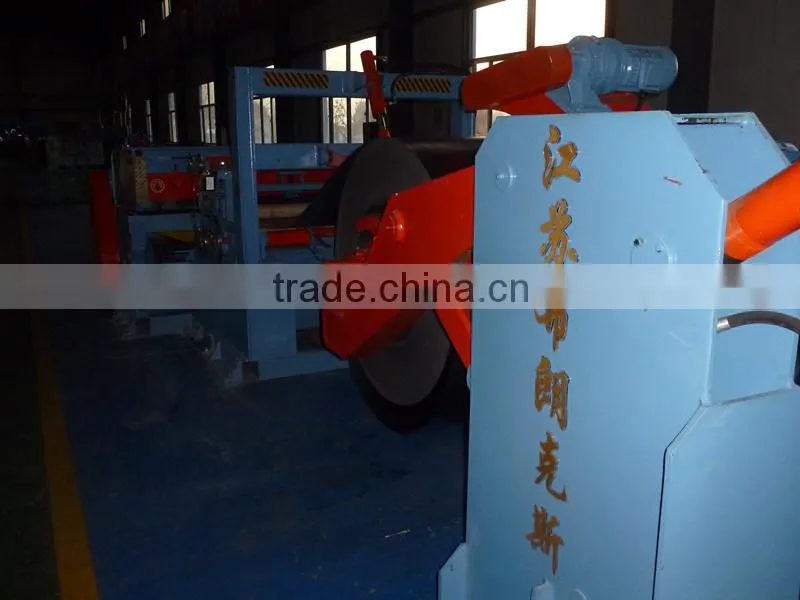

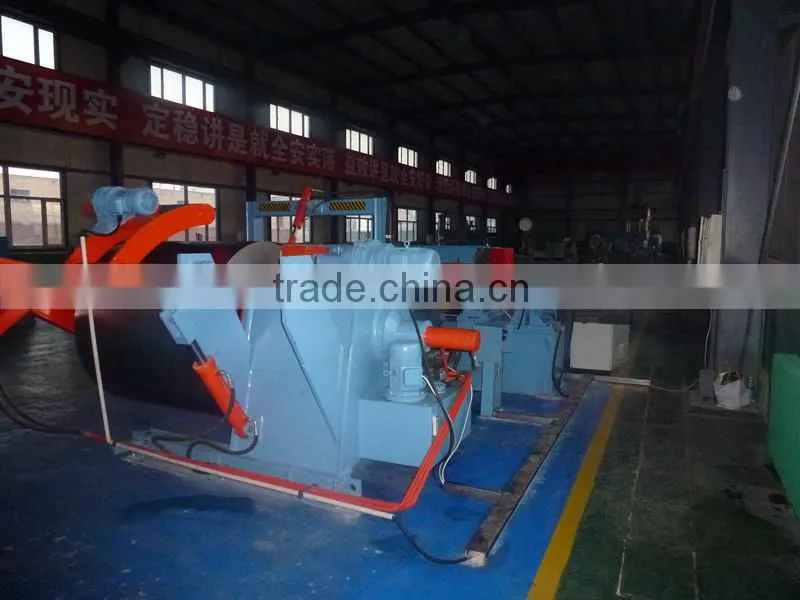

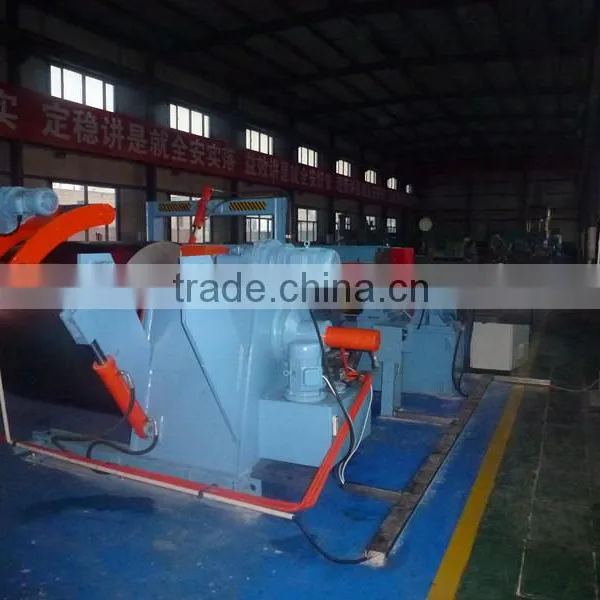

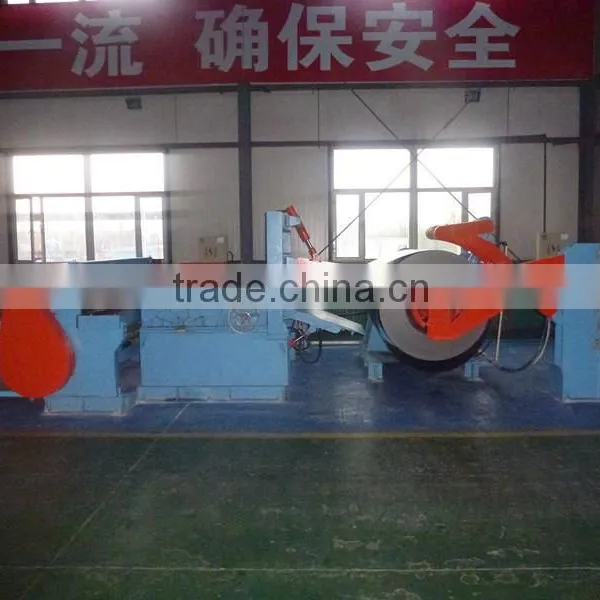

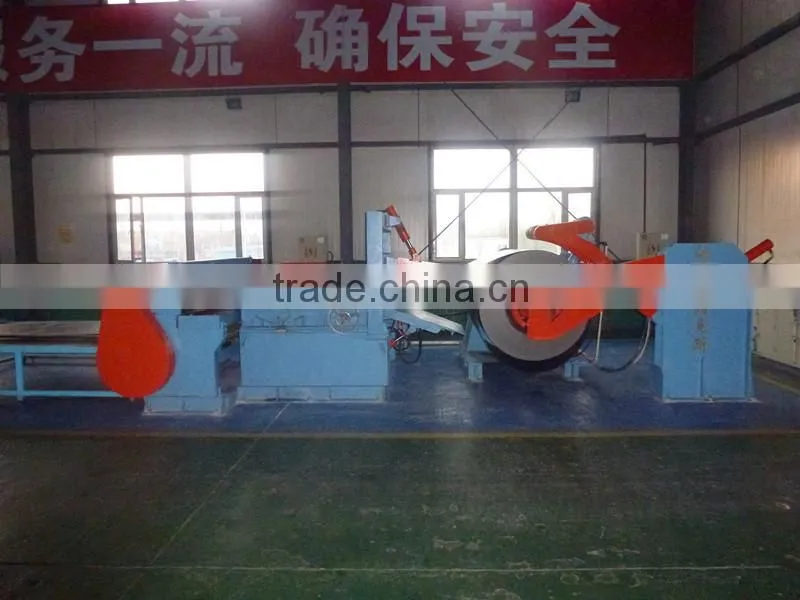

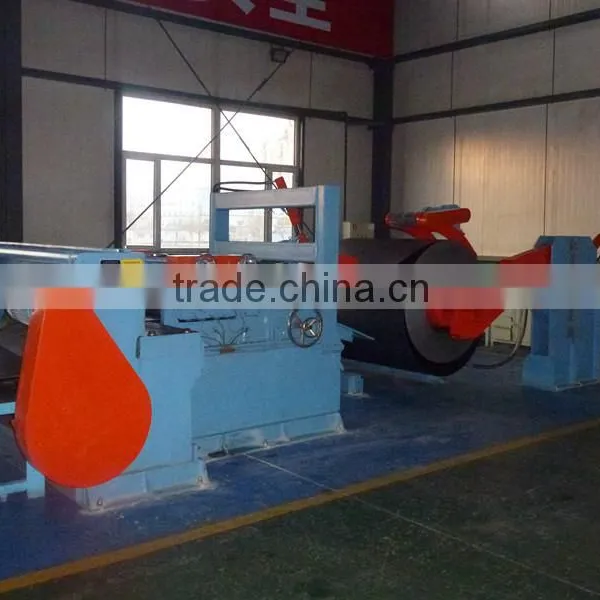

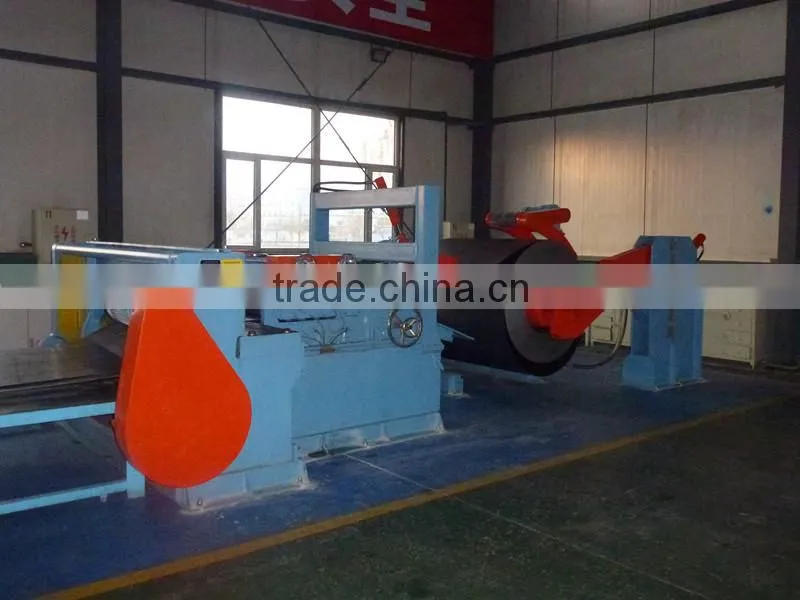

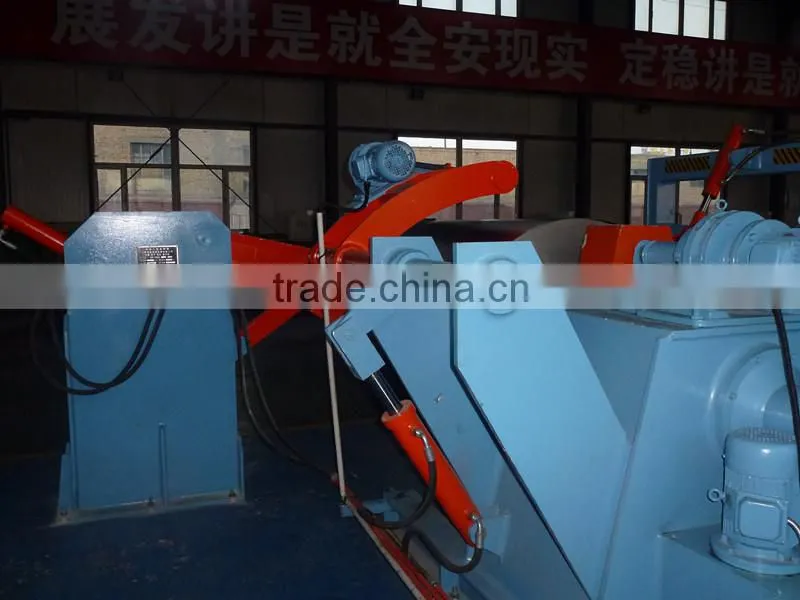

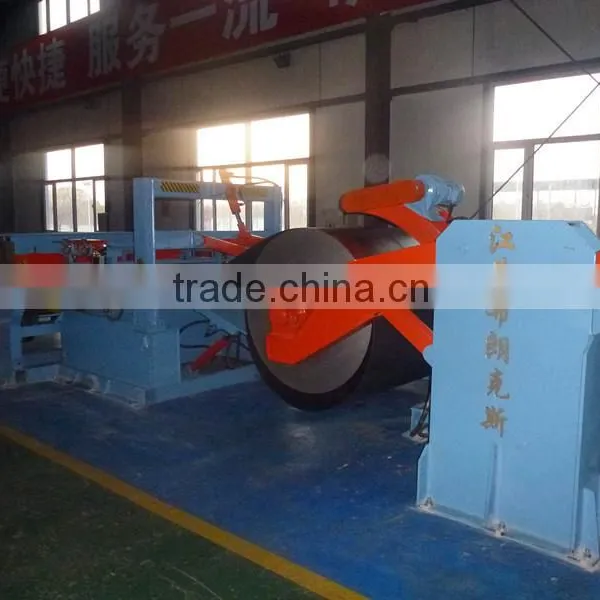

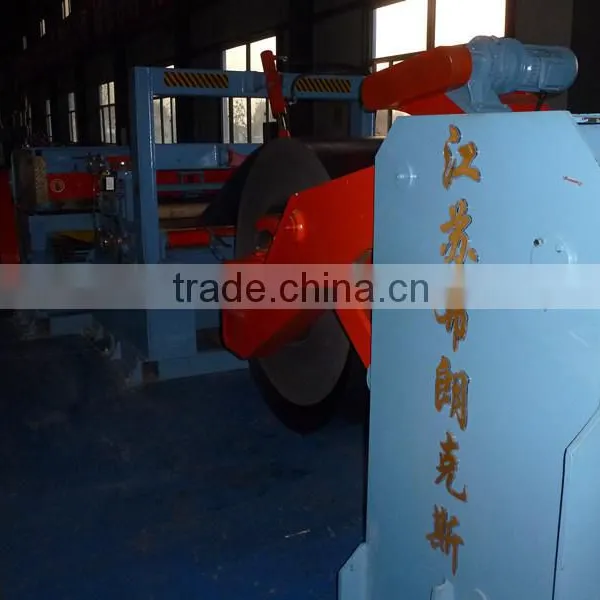

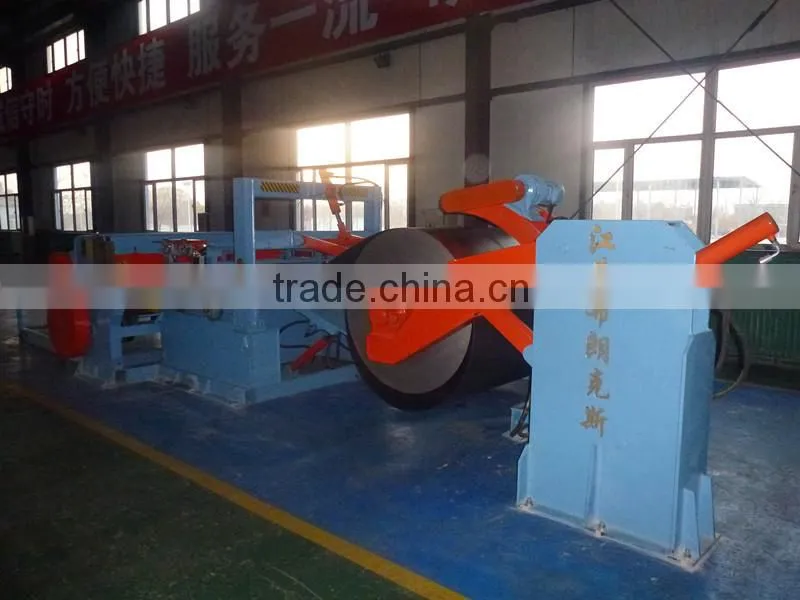

This cut to length line can be used for leveling and cutting coils into required length.
Steel boards are pressed again and again between the rollers which are working for leveling to eliminate strain in
order to get leveled.
This line is mainly used in manufacturing of smelting, car, metal structure, shipping, compression container and
container etc. and used in the fields of metal storage, board distribution etc.
The function can be extended if it is used with the relative equipments as required by the customers.
If you have special requirements for the machine, please do not hesitate to contact us. And you can advise us your ideas and thoughts for the machine,we can design specially for you and communicate with you for further details.
| coil thickness(mm) | 0.5-3 |
| coil width(mm) | 500-1300 |
| inner diameter of the coil(mm) | 480-520 |
| outer diameter of the col(mm) | ≤1500mm |
| feeding speed(m/min) | 0-30 |
| coil weight(kg) | ≤10000 |
| length tolerance(mm/2000mm) | ≤±1.0mm |
| diagonal tolerance(mm/2000mm) | ≤±1.0mm |
| flatness tolerance(mm/m2) | ≤±1.5mm |
| floor area(m) | 6x15 |
decoiling machine - guiding system - correcting and filming facity - leveller - length fixing facity - shearing machine - material conveying system
Bronx Machinery designs and builds high quality metal board processing equipments,such as leveling machine,cut to length line,slitting line,ss v grooving machine,shearing machine,press brake,rolling machine,hydraulic press with over 30 years experience.
1. How about your cut to length line quality?
Bronx is a mature brand in China for over 30 years manufacturing experiences. Our design pays attention on structure, detailed security and precision also. Our products can match all the CE standard and national strict standards. Our machines distribute worldwide to about 50 countries.
2. What's your after-sale service?
Bronx provides oversea engineer service and training for buyer's operator. We garantee timely response for customer's requirements.
By the way, we also welcome engineers from customers' to our factory to learn how to operate and the normal maintenance since this will make great help for customer.
3. How to operate your cut to length line?
Don't worry about this. Our engineer can guide the operator on site overseas. We will make a detailed operation manualand also with the operating CD for your referance, so you can learn from the existing documents to deepen your knowledge and understanding. Anyway there is another way, that is through internet video we can make a face to face machine teaching. Because of the high development in internet, the world has become smaller and you can easily catch us if any assistance needed .
