Video Wall With 46" DID LCD Monitor

Name: Video Wall With 46" DID LCD Monitor
Brand: AZUQI OR OEM
SKU: 134443899

Negotiable MOQ: 9 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

AZUQI OR OEM

Model Number:

ATS-2046H

Azuqi International Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

F.O.B. Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name AZUQI OR OEM

Model Number ATS-2046H

Specifications

HD LCD display wall:
1 . Resolution 1366x768
2 . single display,full display,any combination

Application Field:

SOHO Offices

Shooping Mall

School

Government Users.

Professional Solution Feature:

PIP/POP/Burn Free Display Function

1. MxN multi-units display

2. Single display (multi-channels signals)

3. Full screen display

4. Any combination display

HDMI Input

Video Input/Output: Display CVBS Signal by BNC Connector

Add S-Video Input (Option)

Resolution: WXGA(1366x768)

Built in 3D Comb Filter

3x3 LCD Video Wall 46" Narrow Bezel

I. Specifications

Model No.	ATS-2046H
Panel type	46'' TFT LCD Monitor

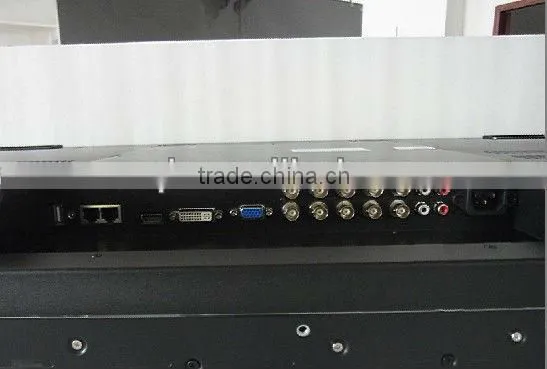

Video inputs/ Video outputs	CVBS input(BNC)x2, DVIx1, Video loop output(BNC)x1, S-video x1, HDMIx1, USBx1, VGAx1
Audio inputs/Audio outputs	RCA jack (L/R)x2 , Stereo 3.5mm input x1
Built in comb filters Built in De-interlace	3D 3D
Recommended resolution	16:9 WXGA(1366x768)
Viewing angle(U/D/L/R)	178°
Active display	1018.080(H)x572.670(V)
Power consumption	approx. 220 watts
Signal format	NTSC, PAL ,480P ,576P, 720P
Display colors	8 bit-1 billion color
Display function summarize	1. MxN multi-units display 2. Single display (multi-channels signals) 3. Full screen display 4. Any combination display
Contrast ratio	3000:1
Luminance , white	700cd/m²
Refresh frequency	120HZ
Signal timing	LVDS
Operating temperature	0°c~40°c
Operating relative humidity	15~75% RH
PC input	15 pin D-Sub (analog RGB) for VGA input
Power supply	DC 12V adaptor supplied ,AC 220V
Screen control language	English / Frech / Spanish / Dutch / Italian / Chinese
Radiation standard	TCO 99
Wall mount	VESA
Install way	Wall hanging, embedded, floor cabinet, hoisting ,TV cabinet
Unit N.W. / G.W.	Approx. 25KG / 26KG
Gift box size (WxHxD mm)	1046.0x596.0x95.0
