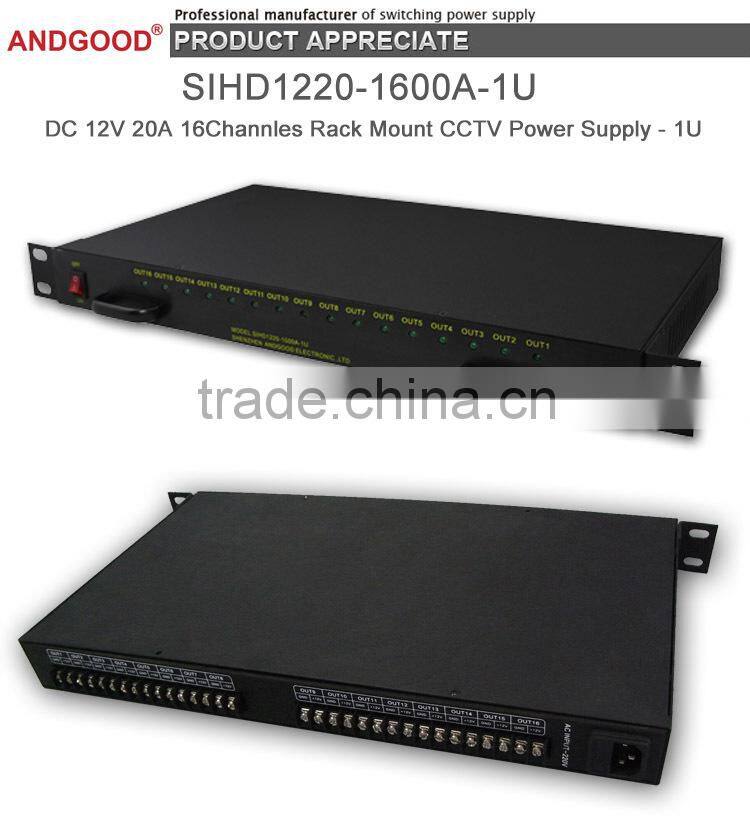

1u 19" Rackmounted 12v Power Supply With High Quality Cost Effective Security Solution

Model

SIHD1220-1600A-1U

SIHD1210-0800A-1U

DC Output Voltage

12V

12V

AC Input Voltage Range

190-240V AC

190-240V AC

Rated Output Current

20A

10A

Channel

16CH

8CH

Output Current Range

0-20A

0-10A

Tripple and Noise

<120mVp-p

<120mVp-p

Iniet Stability

± 0.5%

± 0.5%

Tolerance Voltage

± 15%

± 15%

DC Output Power

240W

120W

Efficiency

>85%

>85%

Overall Dimension

438*250*44mm

438*250*44mm

Weight

3.4kg

3.9kg

Input Current

0.7A/115V    0.3A/230V

AC Inrush Current

Cold-Start Current: <50A/230V

Leakage Current

<0.35mA/264VAC

Overload Protection

105%~150%   Auto Recovery

Over Voltage Protection

105%~150%   Auto Recovery

High Temperature Protection

…………

Start, Rise, Hold time

<30ms

Isolation Resistance

Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/50M Ohms

Working Temperature and Humidity

-20°C~+60°C (Refer to Output Derating Cutve), 20%~90%RH

Storage Temperature and Humidity

-30°C~+70°C, 10%~95%RH

Safety Standards

…………

EMC Standards

…………

Items per Carton:

5 Pieces/Carton

Package Measurements:

56.5*52.5*35.5 cm

Gross Weight:

23.5 kg

Package Type:

Standard Export Carton Packing
