DN600 Large Diameter Bevel Gear Gate Valve
- shanghai tianjin qingdao
- T/T Credit Card
You May Like
Product Details
Standard or Nonstandard | Standard | Structure | Gate | |
Pressure | Medium Pressure | Power | Manual | |
Material | Casting | Temperature of Media | Normal Temperature | |
Media | Other, water,oil,steam | Port Size | DN600 | |
Place of Origin | Henan, China | Model Number | Gate Valve | |
Brand Name | gaoshan | Application | General |
Product Description

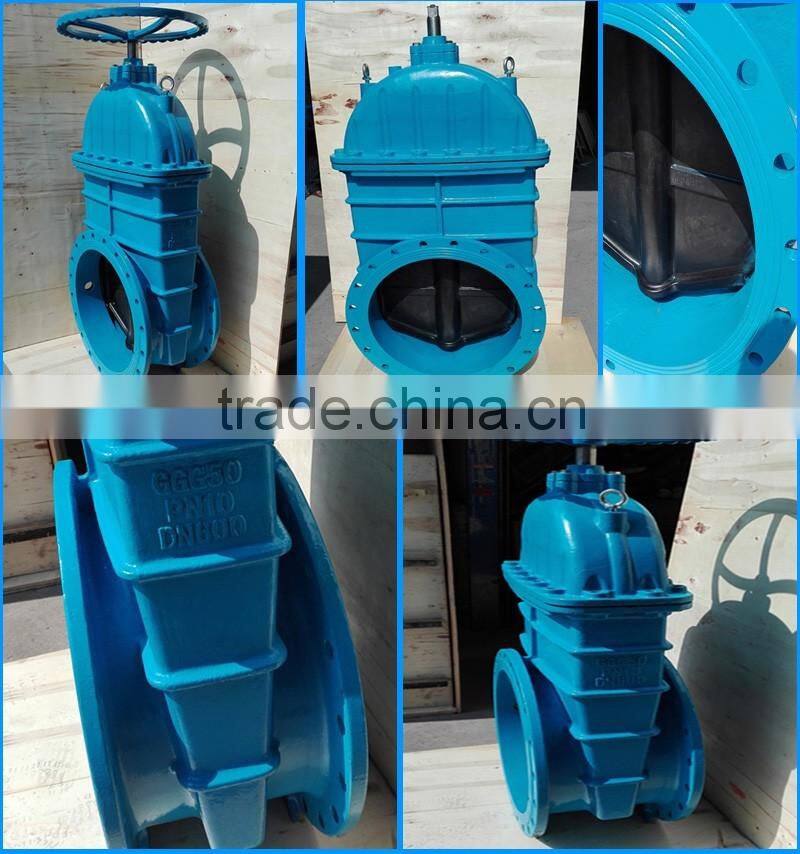

DN600 large diameter bevel gear gate valve
1. Specification
1).Size:DN600
2).Pressure:PN16-PN40
3).Medium:water,acid,steam,petroleum etc
4).Connection:Flange
5).Temperature:-20℃~120℃
2.Standards Compliance
1.Design standard:DIN3352
2.Face to Face:DIN3202
3.Flange standard:DIN2543-2545
4.Inspection and test:DIN3230
5.Pressure and temperature:DIN2401
3. Materials
Body:Gray iron,ductile iron,cast steel
Gate:ductile iron+EPDM/NBR
Seals:NBR/EPDM
Bonnet:Gray iron,ductile iron,cast steel
Stem:Stainless steel
Bolt:Carbon steel,Alloy steel
Handwheel:Malleable iron
Shipping:20 days after order confirmed.
Packaging:Plywood case.
1.Good quality and low price.
2.Good after-sale service.
3.Bring the finest goods to customer is our ultimate goal.
4.Products are exported to various countries.
