Lug Type Electric Actuated Knife Gate Valve With Drawing
- shanghai tianjin qingdao
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Medium Pressure | Power | Other, electric | |
| Material | Stainless Steel | Temperature of Media | Normal Temperature | |
| Media | Other, sewage, powder,paper pulp | Port Size | 2"-24" | |
| Place of Origin | Henan, China | Model Number | Z973X | |
| Brand Name | gaoshan | Application | General |
Product Description

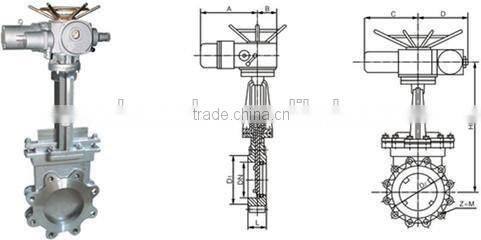

Lug type electric actuated knife gate valve drawing
1. Specification
Model: Z973X
Nominal Pressure:Class 150lbs
Size:2"-24"
Connection: Lug
Operation: electric
Work Temperature:-20℃~120℃
2.Standards Compliance
Design And Manutacture:API 6D,600
Face to Face:ANSI B16.10
Butt welding dimension:ANSI B16.25
Pressure Temperature Lating:ANSI B16.34
Inspection and test:API598,API6D
3. Materials
Body: Stainless Steel
Knife: 2Cr13, SS201, SS304, SS316, SS316L, SS310, 2205
Sealing:NBR, EPDM, Viton
Packing Seal: Oil lubrication PTFE packing, aramid packing, high water lever packing, rubber packing.
4. Application Media
Applicable for coal in power plant, salg discharge, sewage treatment, food, paper making, medicine, petroleum and chemical industry, water, oil, stream, connecting or cutting grout, gold powder, ores, slag, coal, pulp, wood pulp, tailing, fibers, dust, chemicals, sewage treatment, sedimentation tanks, asphalt, bunker export, fruit juices, cereals, slaughter plant waste and other media.
1.Good quality and low price.
2.Good after-sale service.
3.Bring the finest goods to customer is our ultimate goal.
4.Products are exported to various countries.
