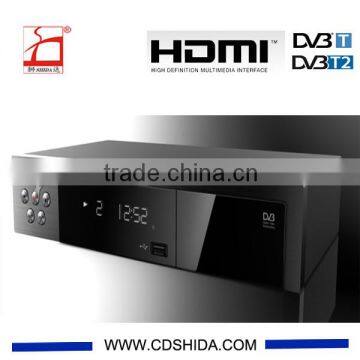

Dvb t2 Digital Receiver

Name: Dvb t2 Digital Receiver
Brand: SHIDA
SKU: 134428663
Availability: InStock

US$ 1 - 20 MOQ: 100 Pieces

Key Specifications

Brand Name:

SHIDA

Model Number:

SDC-3000T2

Chengdu Star-Xinhui Tel-Communicational Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shengzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name SHIDA

Model Number SDC-3000T2

Specifications

Support DVB-T/T2
Capable to FTA or CAS embeded
Support 3D HD decoding
Capable to receive both digital TV and Analog TV

Product Description

Feature :
Video decoder: MPEG-2 MP HL/ MPEG-4/ H.264 L4.1, AVC/ MHEG-5 support(Optional)
Audio decoder: AAC/HE-AAC/AC3,DD+(Optional)/PCM Compliant
Full HD and HDMI 1.3/HDCP 1.1 Copy protection
DVB Subtiling-ETSI 300473 Compliant, and support VBI/OSD Teletext
EPG (Electronic Program Guide) with now & next and 7 days events ready
Channel search with automatic/manual scan
Parental lock function for menu and selectable per channel
Multi-lingual support on screen menu (OSD)
Edit functions for TV or Radio programme name
Signal strength bar for digital transponders
8 Timers for recording and/ or sleep-timer with 3 modes (daily, weekly, once)
PVR/ Multimedia Playback/ Software Update via USB
Support Logic Channel Number(LCN)

Specification

Tuner
IF input frequency: VHF: 174MHz - 230MHz/UHF: 474MHz - 866MHz
Bandwith: 6/7/8MHz
Input level:-83dBm ~ -5dBm
Signal input: IEC-type female
Chipset: MSD7802

Mpeg transport stream and A/V decoding

Video standard: MPEG-2/MPEG-4 AVC/H.264 HP@L4, AVC

SCART video model CVBS/RGB

Aspect ratio: 4:3 LB, 4:3 PS, 16:9, AUTO

Video resolution: 576i, 576p, 720p and 1080i,1080p

Audio standard: ISO/IEC 14.496-3, AC3(optional), AAC, AAC+

Audio mode: mono, dual-channel, stereo

Multimedia format:
Picture: JPEG,BMP,PNG
Audio:WMA,MP3,AC3,AAC (.wma,.mp3,m4a)
Video: MPEG1,MPEG2,MPEG4,H264,Motion JPEG (.avi,.mpg,.dat,.vob,.div,.mov,.mkv,)

Front panel
Display LED display
USB slot for software upgrading/PVR/multimedia playback

Channel decoding
Standard: DVB-T2
Demodulation: QPSK, 16QAM, 64QAM
FEC: 1/2, 2/3, 3/4, 5/6, 7/8, automatic
Guard: 1/4,1/8,1/16,1/32
Mode: 2K, 8K

Demultiplexer
Standard ISO/IEC 13818-1; ARIB STB-B10
Input max. bit stream rate: 120Mbps (serial)/15MBps (parallel)

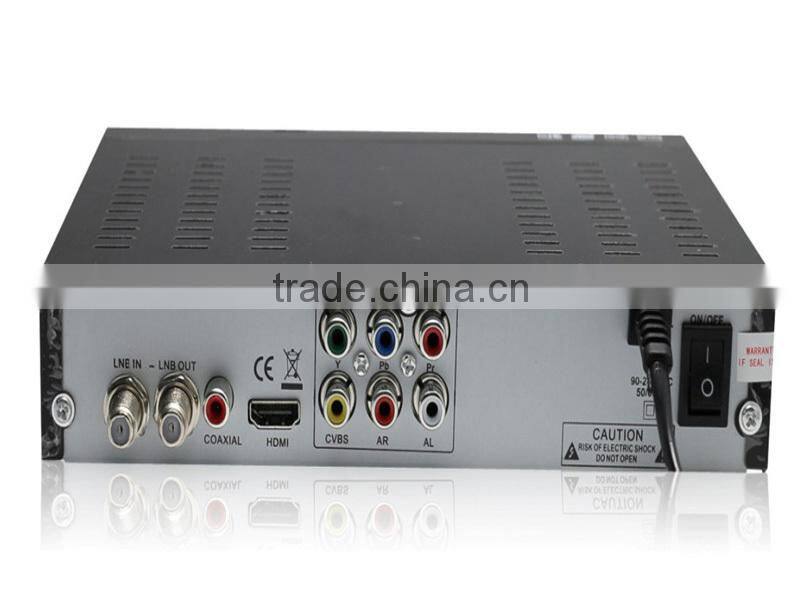

Rear panel output
HDMI output (576P/720P/1080P/AUTO)
