sdc-3000t3 tv receiver

Name: sdc-3000t3 tv receiver
Brand: SHIDA
Availability: InStock

FOB Price

US$ 1 - 35 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	SHIDA
Model Number	SDC-3000CH

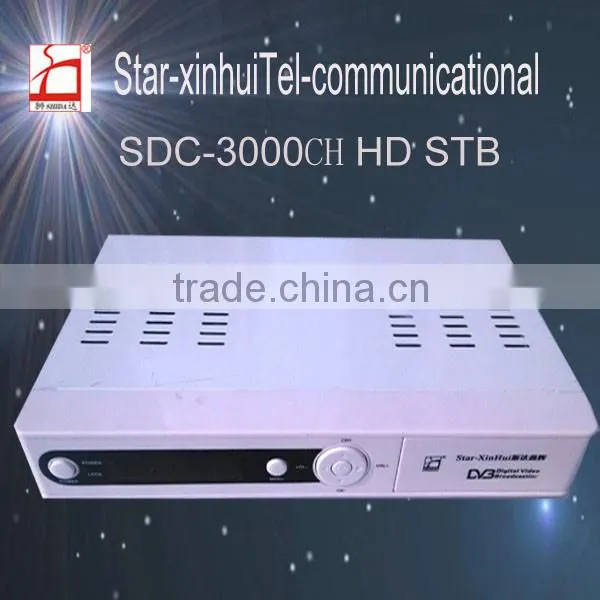

DVB-T2 AND DVB-S2 Combo Receiver

Product Description

Specifications:
1.DVB-T2 AND DVB-S2 Combo Receiver,access to DVB-T2/T and DVB-S2/S channels at the same time
2.Fully SD/HD DVB-T/T and DVB-S2/S compliant,support full HD 1080p
3.Support SD/HD MPEG2 and MPEG4 AVC H.264
4.SCPC & MCPC receivable from C/Ku band satellites
5.DiSEqC 1.0/1.1/1.2/1.3(USALS) supported
6.Universal LNB, NIT search supported
7.Auto and manually scan all available TV and radio channels
8.Powerful and highly effective 7-day EPG function
9.Multi-language menu,subtitle and audio output supported
10.USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
11.Support aspect ratio 16:9, 4:3,Pan&Scan,letter box.
12.Support parental local and Teletext
13.Easy to use and attractive menu
14.Support software upgrade by OTA
15.Support various media files,including music,photo and movie files

Tuner and Demodulation parameter [ S2 ]:
Input frequency: 950 to 2,150MHz
Symbol rate: 1 to 45M

Input impedance: 75 Ω
Demodulation: QPSK,8PSK,16APSK,32APSK
Rate: 1/2, 2/3, 3/5, 3/4, 4/5, 5/6, 8/9, and 9/10
Tuner and Demodulation parameter[ T2 ]:
RF input frequency: 44-1002Mhz Bandwith: 1.7/5/6/7/8/10 MHz
Demodulation: QPSK, 16QAM, 64QAM, 256QAM Scattered Pillots:1%/2%/4%/8% of total
Code Rate: 1/2, 3/5,2/3, 3/4, 4/5, 5/6 Continual Pillots:0.35% of total
Guard Interval: 1/4, 19/128, 1/8, 19/256 , 1/16 ,1/32, 1/128 Typical date rate(UK) 40 Mbit/s
FFT Mode: from 1K ,2k,4k,8k,16k,32k Max.data rate(@20 db C/N):47.8Mbit/s
Easy to use and attractive menu
Common Interface for various CAS modules[ CA option ]

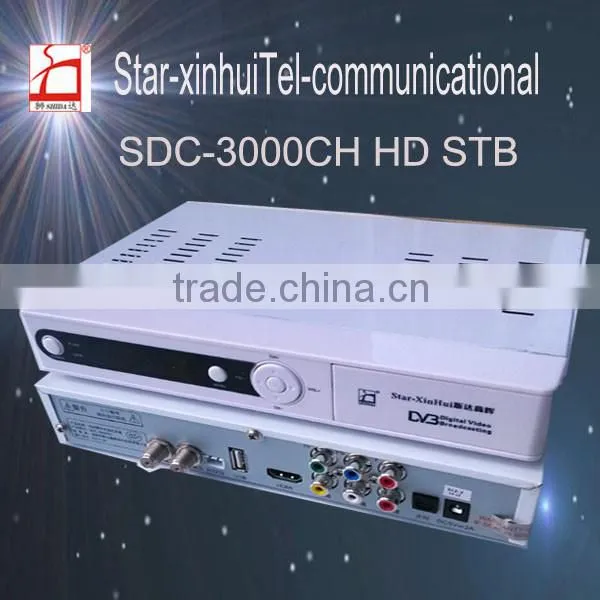

Interface

Input and Output
USB
HDMI
CVBS
L/R AUDIO
Component Video
LNB IN
RF IN
RF OUT
DC IN
Accessories Included (in Price above)
AV cable
User manual
Remote
Battery
Adaptor
