star max digital satellite receiver

FOB Price

USD $1 - $10,000 / Piece

1 Piece(Min.Order)

Supply Ability 1 Piece / Pieces per Month
Port chengdu
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	SHIDA
Model Number	SDC-3000I

Product Description

Specifications

decode transport stream (compliant with MPEG2) from ASI
CAM module( option)
2 ASI outputs and digital video & audio output

Product Description

Features

1.MPEG-2 digital & Fully DVB compliant

2.QPSK demodulation supports.

3.Two routes ASI MPEG-2 transport stream output

4.QPSK modulation frequency: 950~2150MHz, symbol rate:2~45Msps 5.User can edit various satellites and transponders information

6.PAL / NTSC format TV

7.Can receive C / Ku-band SCPC / MCPC information from Satellite

8.PAL / NTSC automatic conversion

9.Channels automatically saved

10.2 CVBS outputs, 2 AUDIO outputs

11.2 PCMCIA Interfaces

12.2 TS stream outputs, One TS Stream Input

13.One S-Video output

14.2 separate CIM modules, each supports up to decrypt 8 channel Programs

15.One LNB input, one LNB output

16.An RS232 interface, convenient to software upgrade

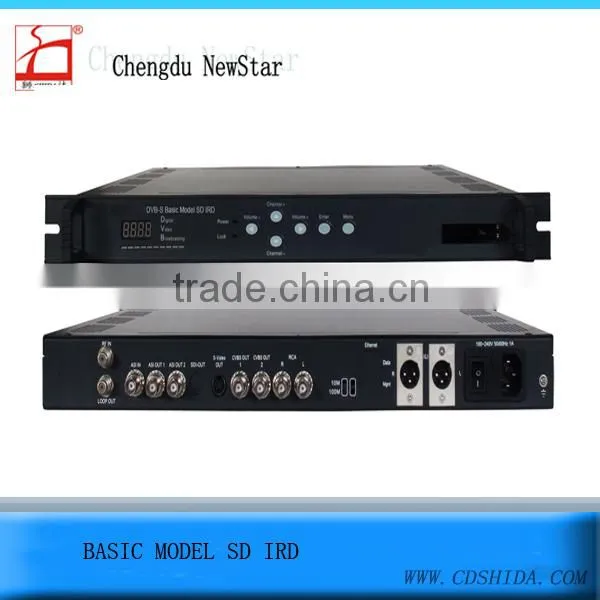

DVB-S Basic model IRD

Input Frequency Range:	950-2150MHz
Symbol rate:	2-45MBauds
Signal Strength:	-65- -25dBm
FEC Demodulation :	1/2, 2/3, 3/4, 5/6, 7/8 QPSK

Series Specifications

DVB-CI	Descrambler	DVB-CSA
	Smart Card interface	ISO7816
	Separate (between TS, converter and card), interface	PCMCIA
Video output	2 CH CVBS	BNC interface,75ohm
Audio output	Stereo unbalanced audio	BNC interface,10k ohm
ASI input	BNC interface	Input impedance 75 ohm
ASI input	Max transport rate	85Mbps
ASI output	BNC interface	Output impedance 75 ohm
ASI output	Max transport rate	85Mbps
RS232 Data interface	DC resistance of the single pin	20m ohm @100mA
	Data speed	115200 bps
	Data length	8bits
	Stop place	1
	Physics interface	DB9 Female
General	Voltage	AC :90-260V~, 50/60Hz
	Power	<15W(Max)
	Temperature	0~40Ω (Operation); 10Ω ~35Ω (Storage)
	Humidity	10%~90%
	Dimension	44mm482mm360mm
	Approx weight	3.2kg
