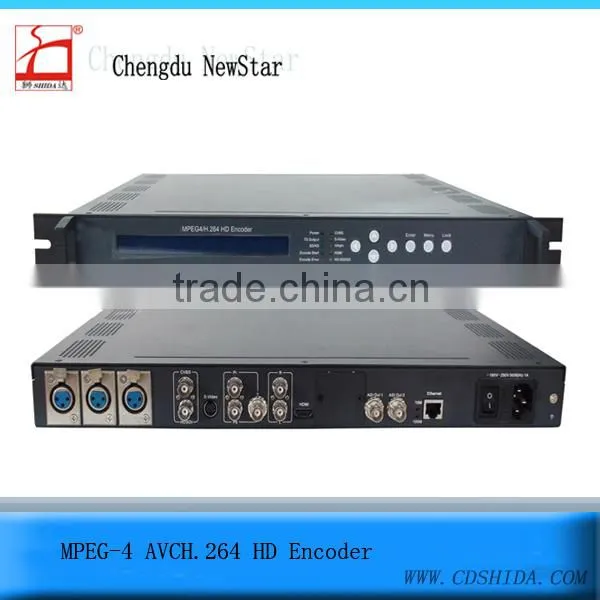

MPEG-4 AVC/H.264 HD Encoder

Video input

1 × Analog CVBS, BNC interface

1 ×S-Video Analog YPbPr input, BNC interface

1 × YPbPr video input, BNC interface

HD/SD-SDI, BNC interface

HDMI interface

Audio input

Analog stereo audio(balanced), XLR interface

Analog stereo audio(unbalanced), BNC interface

AES / EBU digital audio, XLR interface

HD/SD-SDI embedded audio

Video

Resolution

1920×1080_60i, 1920×1080_50i,

1280×720_60p, 1280×720_50p

720×480_60i(NTSC), 720×576_50i(PAL)

Encoding

AVC/H.264 High Profile Level 4.0 for HD

AVC/H.264 High Profile Level 3.0 for SD

 Bit-rate

0.8Mbps~20Mbps

Rate Control

CBR/VBR

GOP Structure

IBBP

Advanced Pretreatment

De-interlacing, noise reduction, sharpening

Audio

Encoding

MPEG-1 Layer 2

Sampling rate

48KHz

Resolution

24-bit

Bit-rate

64Kb/s~384Kb/s

Stream output

2×ASI outputs, BNC interface

SPTS over UDP, 10/100Base-T Ethernet interface

(UDP unicast / multicast)

System function

LCD/keyboard operating, NMS support

Chinese-English control interface

Ethernet software upgrade

General

Dimensions

(W × D × H)

482mm×455mm×44.5mm

Approx weight

4.5Kg

Temperature range

0~45°C(Operation), -20~80°C(Storage)

Power requirement

AC110V±10%, 50/60Hz

AC 220V±10%,50/60Hz

Power consumption

17.6W
