Weller WSD151 Solder
- shenzhen
- Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | weller | |
| Model Number | WSD151 |
Product Description
Specifications
Weller WSD151 solder:1.Power: 150W
2.Temp.range:50-550wattage
Weller WSD 151 Solder
Control unit
Soldering iron 150 W, 24 V with soldering tip LHT F
Safety
WSD 151 Soldering station digital 150W, 230V
- 150 W soldering iron WSP 150 for high temperature soldering
- Digitally controlled electronic for soldering tools up to 150 W
- Temperature range 50°C550°C (automatically limited to 450°C if any other tool than WSP 150 is connected)
- Temperature control via buttons
- 3-position digital display
- Calibration box WCB 2 (see page 174) may be connected for CALIBRATION, LOCK OUT or OFFSET function
- Protection class 1
- Antistatic housing
- Equipotential bonding (normal state hard grounded)
- Automatic tool recognition
- Dimensions: 166 x 115 x 101 mm (L x W x H)
consists of:
PUD 151 Power unit
WSP 150 Soldering iron 150W, 24V with soldering tip LHT F
KH 27 Safety rest
Model | WSD151 |
Power consumption | 150W |
Work voltage | 220V 50Hz |
Output voltage | 24V |
Temp.range | 50°C-550°C (automatically limited to 450°C |
Temperature Stability(no load) | ±2°C |
Tip to Ground Resistance | ‹2Ω |
Tip to Ground Potential | ‹2mV |
ESD | YES |
Handle | WSP150 |
Length of line | 1.22m |
Stand | WPH80 |
Soldering tips | LHT series |
Outside dimension | 166 x 115 x 101 mm (L x W x H) |
The handle of soldering station:

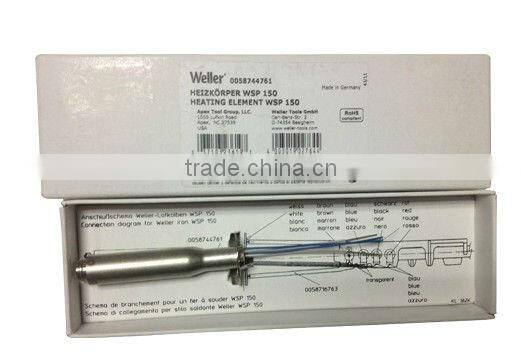

the heater of soldering station:

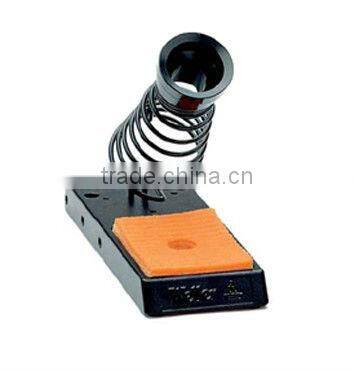

the holder of soldering station:
the outer of soldering station:

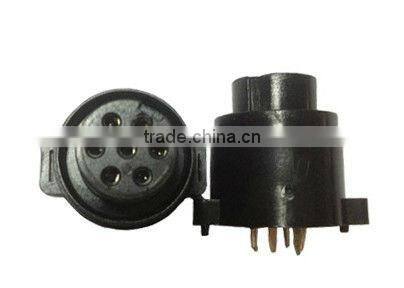

the connector of soldering station:

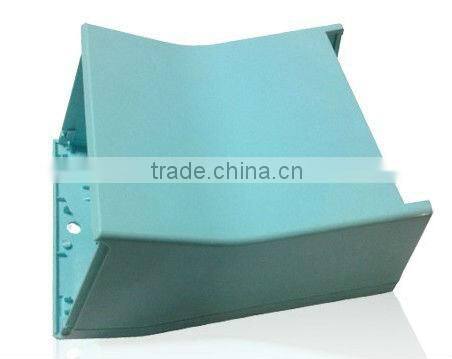

the back cover of soldering station:
the sponge of soldering station:70*50*16mm
