Specifications
ULUO5205 150W lead free soldering station1.Unit price:USD110
2.Temp Range: 50-500
3.Tip application:500 series
High Wattage Soldering Station, 150W lead free soldering station
Features:
1). Heating with High Frequency Eddy Current ;the heating and annealing rates are fast;unlead soldering can be realized;
2).Microcomputer control,touch-tone thermoregulation;digital
temperature correction;set with functions of automatic sleep and shut;
3). Designed with large power of 150W;the regular maximum available soldering bit can be 8mm
4). The electromagnetic induction-type temperature lock function can effectively ensure the manufacturing technique and prevent the random thermoregulation by operators
5). Anti-static design;several types of soldering bit are available
Model: | ULUO5205 lead free soldering station |
Power | 150W |
Output Voltage | AC 36V,400KHZ |
Temperature range | 50°C-500°C |
Tip to Ground Resistance | ‹2Ω |
Tip to Ground Potential | ‹2mV |
Max Work Environmental Temperature | 40°C |
Temperature Stability(no load) | ±2°C |
Outside material | Aluminium |
Outside dimension | (L)200*(W)130*(H)100mm |
Weight(no power line) | 3.9kg |
Outside Material | ESD Design,Aluminium material,Stable useful. |
Application of occasions |
Applicable Places: Especially applicable for the soldering places,such as earth terminals, power switch,connector,large soldering point,coil soldering, solar photovoltaic modules,where high heat capacity is required.
|
Note: | 1.All our soldering station can make as your requirements(110V/220V) 2.Temperature test as the UL191 soldering iron tester. |

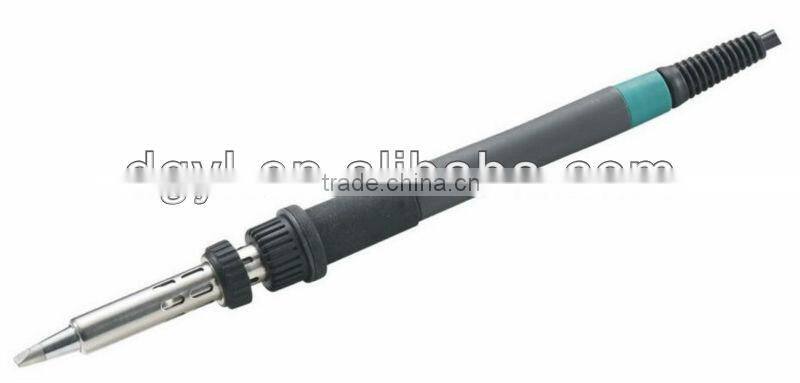

The handle of lead free soldering station:

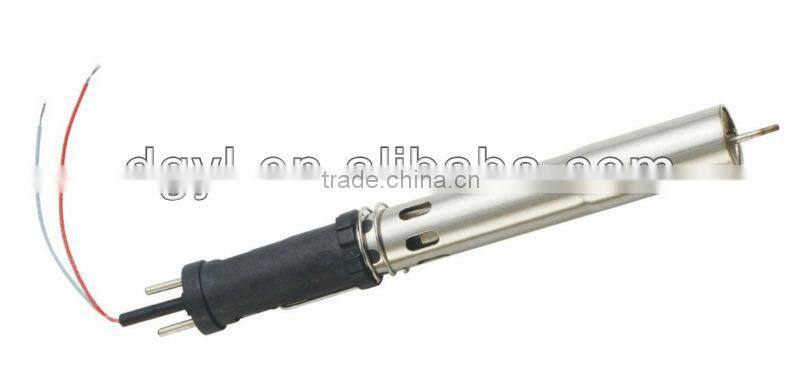

The heater element of lead free soldering station:

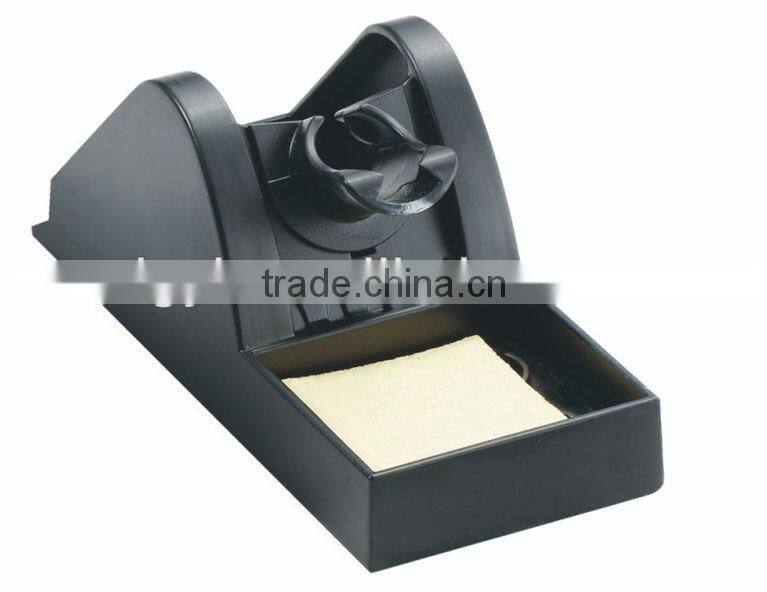

The holder of lead free soldering station:

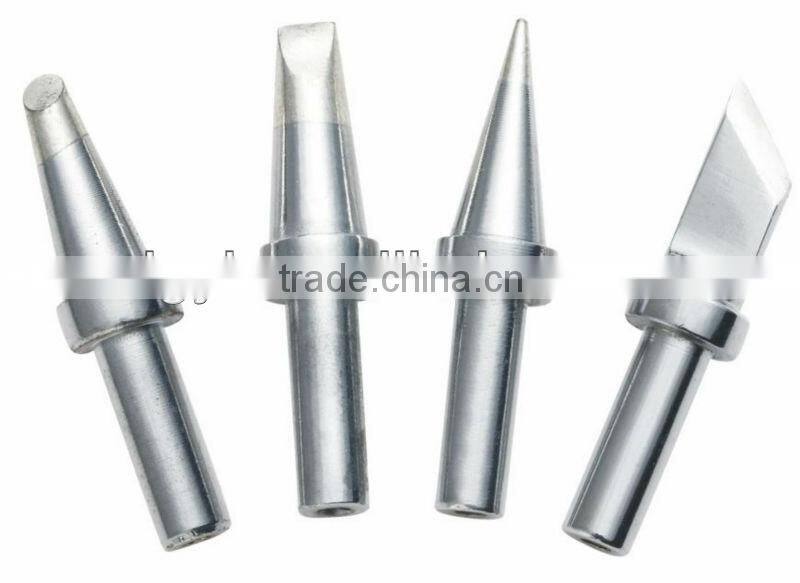

The soldering tips of lead free soldering station:
