All Dielectric Self-supporting Aerial Cable (ADSS)

All Dielectric Self-supporting Aerial Cable (ADSS)

Product details

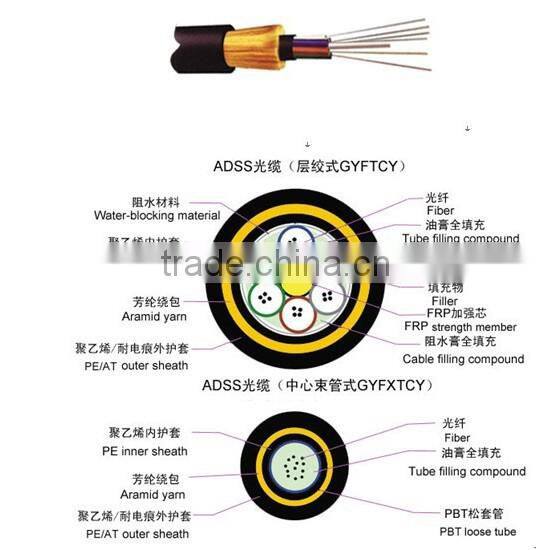

ADSS cable is loose tube stranded. Fibers, 250µm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Characteristics

Can be installed without shutting off the power

Excellent AT performance. The maximum inductive at the operating point of AT sheath can reach 25kV

Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back prop.

Large span lengths and the largest span is over 1000m

Good performance of tensile strength and temperature

The design life span is over 30 years

Application

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. For power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Standards: IEC 60794-1

Packaging

one piece in a platic bag.

Several bags in a carton of 54*39*35cm

Shipping

goods shipped by air or by land transporation.

1,Free samples can be provided.

2,OEM service

3,Nice payment terms.

4,high quality products

5,Competitive price,

6,fast delivery

7,New product priority sell

8,Optical Network Project Consultant.

9,New Products development for customer.

10,Cost-effective logistic solution can be chosen for you.

11,The specific sales person to serve our customers so that you can feel easy and efficient.

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.

Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions

OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.

We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.

PLC splitters

Adapters

Patch cord

1,Can we get free samples?

Yes. Free samples can be offered for your test. You only need to pay the freight.

2,What is the quality of the products?

All the products are of high quality. We promise 100% recall policy if they are unqualified.

3,How will we do if we are not familiar with the optical products?

Don’t worry. We OMC has a team of experts who can offer professional suggestion for customer’s Optical network Project.

4,We are confused that the freight is too high.

Cost-effective logistic solution can also be chosen for you.

5,What is your quality control.

source guarantee. We have our own long-term suppliers. All the products are POHS certificated and satisfy exporting quality level demand.

quality test. It runs through the whole process from the Material to finished products. Such as package, surface, physical test, optical test. They are 100% tested.

optical test. Our products are strictly tested in accordance with IEC and ITU standard.

we have 30% spot test by Quality Assurance Department after the products finished.
