Product Details
Place of Origin: | Guangdong, China | Brand Name: | Senko or Nissin | Model Number: | 12 core MPO APC-MPO APC |
Product Description
12 core MPO-MPO APC fiber optic patch cord
MPO patch cord
MPO Fiber Patch Cord are terminated with MPO connector on both end. All of OMC’s MPO Connectors are from Taiwan, Japan etc. MPO patch cord is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
MPO products’ Standard:
Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
Structured cabling per TIA-568-C
Parallel Optics
Optical Internetworking Forum (OIF) Compliant
InfiniBand Compliant
InfiniBand
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Features:
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications

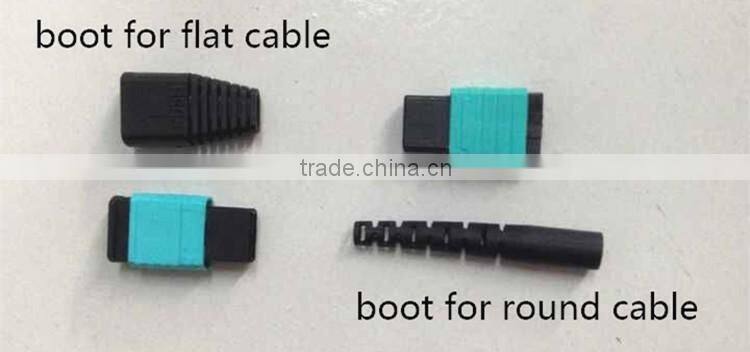

Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
AVAILABILITY:
Ribbon and bundle cable available;
Patch cord, pigtail cable assemblies available.
MT-MT ribbon patch cord is available.
MPO Loopback available
MPO patch cord’s Specification:
MPO/MTP’s spec items. | Single mode (UPC Flat polish, APC 8 degree polish) | Multimode (PC Flat polish) |
Insertion loss | Standard loss≤0.7dB;Low loss≤0.35dB | Standard loss≤0.5dB;Low loss≤0.35dB |
Return loss | ≥55dB | ≥35dB |
Durability | <0.3dBtypical change, 200 matings | |
Interchangeability | ≤0.2dB | |
Tensile strength | >70N | |
Operating Temperature | -40 to + 85°C |
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters, gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters, gigabit up to 1000m
MPO Interference index
Connector type | Testing items | Min | Max |
MPO PC | ROC_X(abs)(mm) | 500 | |
ROC_Y(abs)(mm) | 50 | ||
Angle_X(deg) | -0.2 | 0.2 | |
Angle_Y(deg) | -0.2 | 0.2 | |
Max.DH.All Fiber(nm) | -600 | 600 | |
Max.DH.Ave(nm) | -300 | 300 | |
Max.DH.Adj(nm) | -300 | 300 | |
Max. Core Dip(nm) | -300 | 300 | |
Fiber height(nm) | -300 | 300 | |
ROC_X(abs)(mm) | 1000 | 3000 | |
MPO APC | ROC_X(abs)(mm) | 500 | |
ROC_Y(abs)(mm) | 50 | ||
Angle_X(deg) | -0.2 | 0.2 | |
Angle_Y(deg) | 7.8 | 8.2 | |
Max.DH.All Fiber(nm) | -600 | 600 | |
Max.DH.Ave(nm) | -300 | 300 | |
Max.DH.Adj(nm) | -300 | 300 | |
Fiberheight(nm) |
|
|
Cable Structure:
High Quality MPO Cable Guarantee
1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
MPO Connector Types
MPO Male with Pins | MPO Female without Pins |
Two other clearly visible features are the noses and guide grooves (keys) on the top side. (Note: Female connector need to connect with male connector type.) |

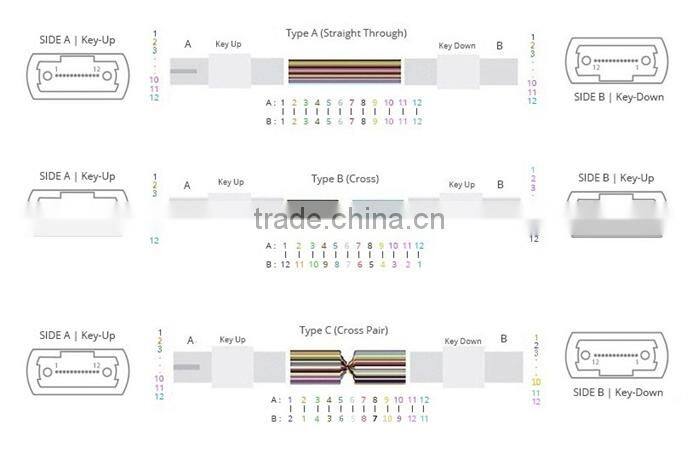

Pre-terminated MPO Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Please Note: When it is connected with two 40G QSFP+ transceivers, please choose the Type B Cross as polarity; when it is connected with other equipment such as MPO LGX Cassette, you can choose any of the polarities as you need.
one piece in a PE Bag
hundreds piece in a cartoon of 54*35*39cm.
other size carton is available too.
Shipped in 3 days after payment
We offer the sincere dedicated service!
Before Sale:
detailed products test report
related specifications
During Cooperation:
OEM Service Offered
Design Service Offered
Buyer Label Offered
After Sale:
Any problems on the product, please contact us
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.
Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions
OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.
We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.
1. Can I get some samples ?
Yes, Sample order is available for quality check and market test .And you just to pay the express cost.
2. What's your payment terms ?
We usually accept all these kinds of payment terms .Such as T/T,L/C, Western Union.Cash Etc.
3. What's the delivery time ?
It usually takes about 3-7 working days .
