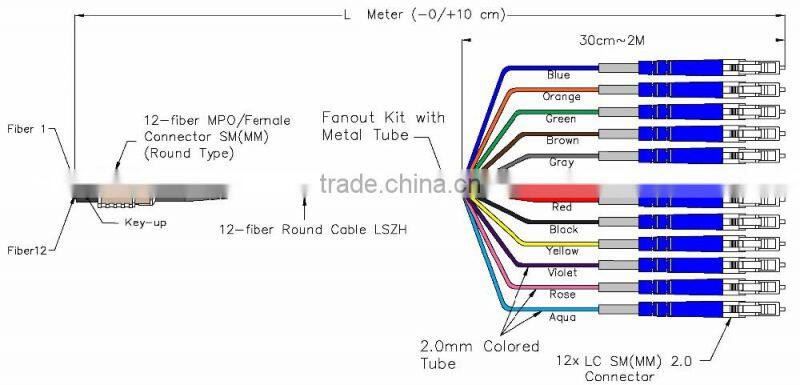

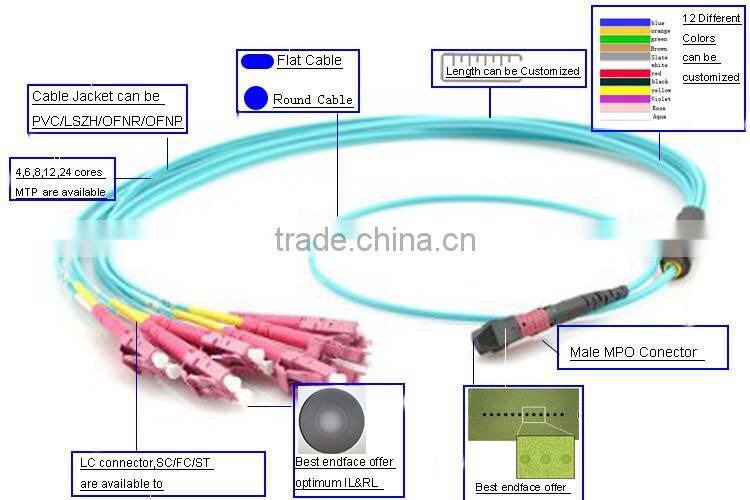

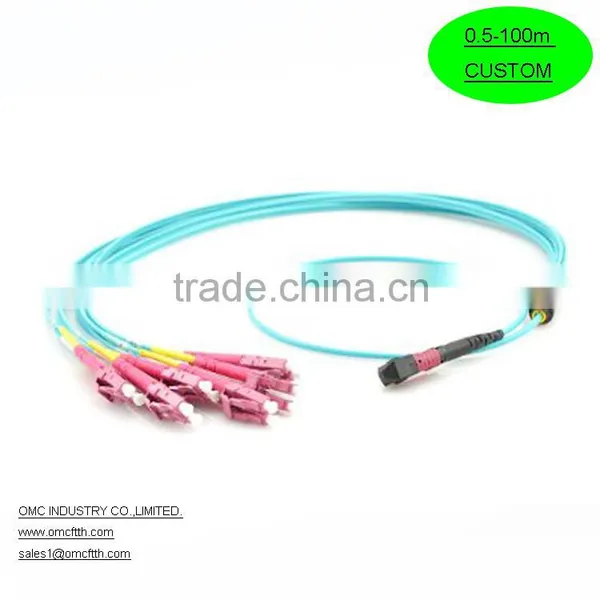

12 Core Breakout MPO -LC OM4 2.0mm Fiber Optic Patch Cord

MPO patch cord

MPO Fiber Patch Cord are terminated with MPO connector on both end. All of OMC’s MPO Connectors are from Taiwan, Japan etc. MPO patch cord is a kind of high density cable assemblies which is generally use in three areas.

1, The Data Center application with high dense degree environment

2, The optical fiber to the building

3, The internal connector application in fiber equipment.

MPO products’ Standard:

Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant

Structured cabling per TIA-568-C

Parallel Optics

Optical Internetworking Forum (OIF) Compliant

InfiniBand Compliant

InfiniBand

- 10G Fiber Channel Compliant

- 40G and 100G IEEE 802.3

- QSFP

Features:

Low insertion loss, high return loss

MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies

Economical solution for mass-termination of fiber

Designed for low loss and standard loss SM and MM applications

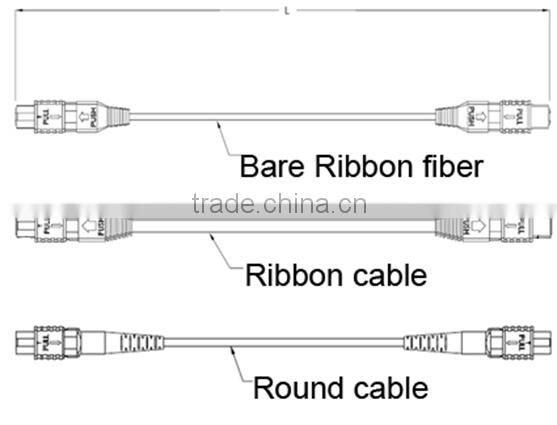

Ruggedized round cable, oval cable and bare ribbon options available

Color coded housings available to differentiate fiber type, polish type and/or connector grade

Good in repeatability and exchangeability

AVAILABILITY:

Ribbon and bundle cable available;

Patch cord, pigtail cable assemblies available.

MT-MT ribbon patch cord is available.

MPO Loopback available

MPO patch cord’s Specification:

Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters, gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters, gigabit up to 1000m

MPO Interference index

OEM Service.

one piece in a PE Bag

hundreds piece in a cartoon of 54*35*39cm.

other size carton is available too.

Shipped in 3 days after payment

We offer the sincere dedicated service!

Before Sale:

detailed products test report

related specifications

During Cooperation:

OEM Service Offered

Design Service Offered

Buyer Label Offered

After Sale:

Any problems on the product, please contact us

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.

Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions

OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.

We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.

1. Can I get some samples ?

Yes, Sample order is available for quality check and market test .And you just to pay the express cost.

2. What's your payment terms ?

We usually accept all these kinds of payment terms .Such as T/T,L/C, Western Union.Cash Etc.

3. What's the delivery time ?

It usually takes about 3-7 working days .
