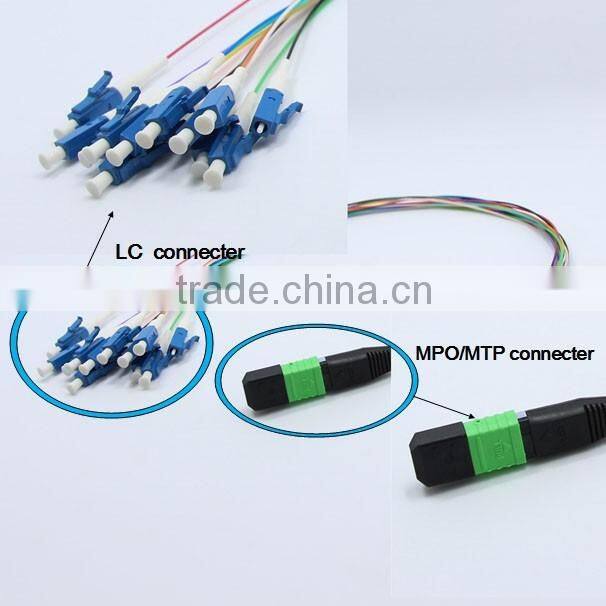

Help CenterFanout MPO-LC Fiber Optic Patch Cord 12 Core
Related Products
-
China Supplier MPO Fiber Optic Patch CordUS$ 0.5 - 10MOQ: 5 Pieces -
MPO Trunk CableNegotiableMOQ: 1 Piece
-
MPO to LC 24 Cores Fan-out Fiber Optic Patch CordNegotiableMOQ: 1 Piece
-
MPO-LC/SC/FC/ST Harness& Fan-out Cables AssembliesNegotiableMOQ: 1 Piece
-
MTP/MPO Lookback Patch CordNegotiableMOQ: 1 Piece
MPO/MTP patch cord is a kind of high density cable assemblies which can be used in CO of FTTH. It save space and easy to maintain.
Features:
Low insertion loss, high return loss
MT based Multi-fiber Connector up to 12 fibers
High credibility and stability
Good in repeatability and exchangeability
Standard: Telcordia GR-1435-CORE compliant
Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication networks.
AVAILABILITY:
Ribbon and bundle cable available;
Patch cord, pigtail cable assemblies available.
MT-MT ribbon patch cord is available.
MPO Loopback available
Specification:
MPO/MTP’s spec items. |
SM(APC Polish); SM(UPC/Flat Polish) |
MM(PC/Flat Polish) |
||
Test Wavelength |
1310nm |
850nm |
||
Insertion loss |
Standard |
Low loss |
Standard |
Low loss |
≤0.5dB |
≤0.35dB |
≤0.5dB |
≤0.35dB |
|
Return loss |
UPC≥50dB;APC≥60dB |
≥30dB |
||
Durability |
<0.3dB typical change, 500 matings |
|||
Interchangeability |
≤0.2dB |
|||
Tensile strength |
>70N |
|||
Other connector’s Spec is the same as we mentioned in patch cord’s html.
Packaging: one piece in a PE Baghundreds piece in a cartoon of 54*35*39cm.other size carton is available too.
Shipping: by air by DHL by FedEx or upon on requests.
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.
Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions
OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.
We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.
