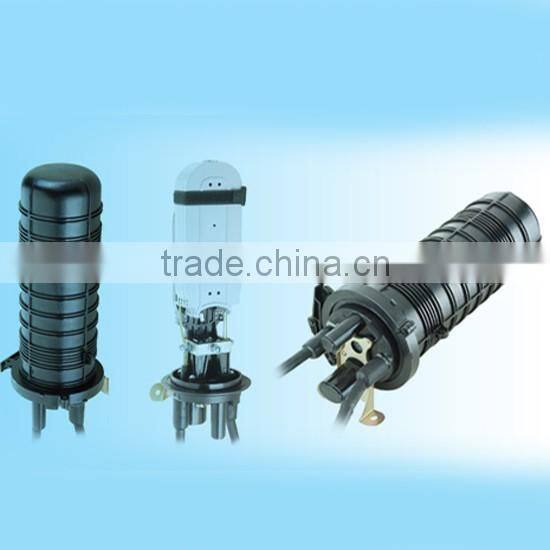

Fiber Optical Splice Closure (FOSC)
FOSC is a device which have function of optical transmission link, providing several of fiber optical cable through, branching and related connecting protection. IP safety rate is IP65-68. Some of them can be installed 1x2:32 PLC splitter or 2X2:16 PLC splitter. The product is excellent in sealing performance, easy for installation, wide application. It's your best choice for fiber connection.
OMCD001
1. Scope of application
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, wall-mounting, duct-mounting and handhole- mounting. The ambient temperature ranges from –40℃ to +65℃.
2. Basic structure and configuration
2.1 Dimension and capacity
Outside dimension (Height x Diameter) |
435mm×190mm |
Weight (excluding outside box) |
2350 g— 2600g |
Number of inlet/out ports |
5 pieces in general |
Diameter of fiber cable |
Φ8mm~Φ25 mm |
Capacity of FOSC |
Bunchy: 12-96 (cores), Ribbon: up to 288 (cores) |
2.2 Main components
No. |
Name of components |
Quantity |
Usage |
Remarks |
1 |
FOSC cover |
1 piece |
Protecting fiber cable splices in whole |
Height x Diameter 355mm x 150mm |
2 |
Fiber optic splice tray (FOST) |
Max. 6 trays (bunchy) Max. 4 trays (ribbon) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces) |
3 |
Fiber holding tray |
1 pcs |
Holding fibers with protective coat |
|
4 |
Base |
1set |
Fixing internal and external structure |
|
5 |
Plastic hoop |
1 set |
Fixing between FOSC cover and base |
|
6 |
Seal fitting |
1 piece |
Sealing between FOSC cover and base |
|
7 |
Pressure testing valve |
1 set |
After inject air, it is used for pressure testing and sealing testing |
Configuration as per requirement |
8 |
Earthing deriving device |
1 set |
Deriving metal parts of fiber cables in FOSC for earthing connection |
Configuration as per requirement |
2.3 Main accessories and special tools
No. |
Name of accessories |
Quantity |
Usage |
Remarks |
1 |
Heat shrinkable protective sleeve |
|
Protecting fiber splices |
Configuration as per capacity |
2 |
Nylon tie |
|
Fixing fiber with protective coat |
Configuration as per capacity |
3 |
Heat shrinkable fixing sleeve (single) |
|
Fixing and sealing single fiber cable |
Configuration as per requirement |
4 |
Heat shrinkable fixing sleeve (mass) |
|
Fixing and sealing mass of fiber cable |
Configuration as per requirement |
5 |
Branching clip |
|
Branching fiber cables |
Configuration as per requirement |
6 |
Earthing wire |
1 piece |
Putting through between earthing devices |
|
7 |
Desiccant |
1 bag |
Put into FOSC before sealing for desiccating air |
|
8 |
Labeling paper |
1 piece |
Labeling fibers |
|
9 |
Special wrench |
1 piece |
Tightening nut of reinforced core |
|
10 |
Metal hoop |
1 set |
For wall mounting and pole hugging |
|
11 |
Buffer tube
|
decided by customers |
Hitched to fibers and fixed with FOST, managing buffer. |
Configuration as per requirement |
12 |
Aluminum-foil paper |
1 piece |
Protect the bottom of FOSC |
|
Packaging
one piece in a platic bag.
Several bags in a carton of 54*39*35cm
Shipping
goods shipped by air or by land transporation.
1,Free samples can be provided.
2,OEM service
3,Nice payment terms.
4,high quality products
5,Competitive price,
6,fast delivery
7,New product priority sell
8,Optical Network Project Consultant.
9,New Products development for customer.
10,Cost-effective logistic solution can be chosen for you.
11,The specific sales person to serve our customers so that you can feel easy and efficient.
PLC splitters
Adapters
Patch cord
1,Can we get free samples?
Yes. Free samples can be offered for your test. You only need to pay the freight.
2,What is the quality of the products?
All the products are of high quality. We promise 100% recall policy if they are unqualified.
3,How will we do if we are not familiar with the optical products?
Don’t worry. We OMC has a team of experts who can offer professional suggestion for customer’s Optical network Project.
4,We are confused that the freight is too high.
Cost-effective logistic solution can also be chosen for you.
5,What is your quality control.
source guarantee. We have our own long-term suppliers. All the products are POHS certificated and satisfy exporting quality level demand.
quality test. It runs through the whole process from the Material to finished products. Such as package, surface, physical test, optical test. They are 100% tested.
optical test. Our products are strictly tested in accordance with IEC and ITU standard.
we have 30% spot test by Quality Assurance Department after the products finished.
